Description

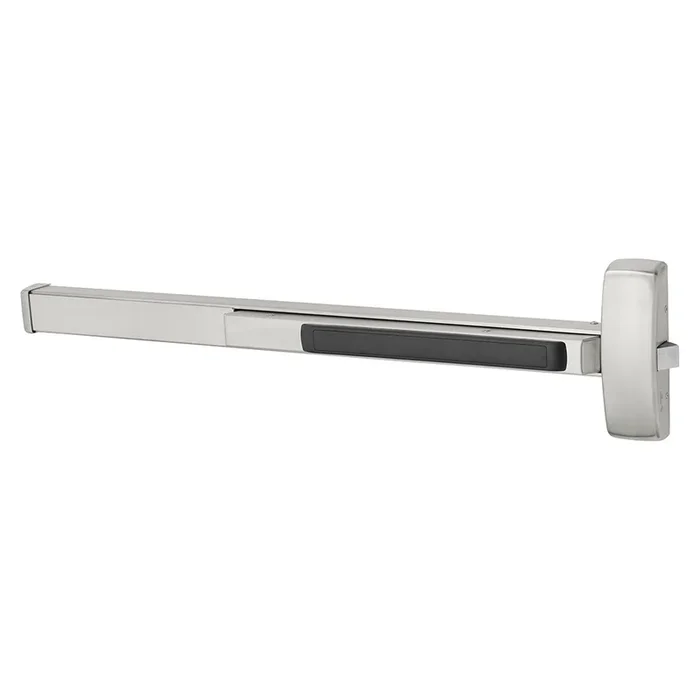

Sargent 56-8813F 32D Classroom Rim Exit Device

Sargent 56-8813F 32D Rim Exit Device, Classroom function, is a top-grade solution designed to meet the rigorous demands of commercial environments. This Grade 1 Rim Exit Bar features a wide stile pushpad and a 36-inch device length, ensuring effortless operation and quick egress. With electric latch retraction and less dogging, this exit device enhances security while providing a seamless user experience. Constructed to exceed ANSI/BHMA Grade 1 standards for cycle and strength, the Sargent 80 Series exit devices are built for longevity and reliability. The modular design, featuring fewer moving parts, ensures minimal maintenance, making it ideal for facilities with high traffic. This device is suitable for both single and double door applications, including those with mullions, and operates quietly, combining robust security with ease of use. Compatible with wood or metal doors of 1-3/4″ thickness, the Sargent 56-8813F can accommodate door widths from 33″ to 36″ without cutting. Its satin stainless steel finish (630/US32D) offers a sleek, modern look while ensuring durability. With UL Fire and Panic listings, this exit device provides peace of mind in emergency situations. Choose the Sargent 56-8813F for a dependable, stylish, and secure exit solution.

Rim Exit Device, Classroom

Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36″ Device, Classroom Function, Electric Latch Retraction, Less Dogging, Satin Stainless Steel Finish, Field Reversible

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The 8800 series is designed for standard width stile applications on wood and metal doors.

The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent’s full line of exit devices.

Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ specify thickness and order as a 31- prefix.

Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door; G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door

Features:

• Single point rim latching device
• Single door & double door applications with mullions
• Quiet operation and solid security
• Devices are ANSI A156.3 – Grade 1
• UL Fire and Panic listed

Attributes

Accessible: No

Ada Compliance: No

Ansi: ANSI/BHMA A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Device Length: 36″

Device Type: Rim

Dogging Options: Less Dogging

Door Material: Metal or Wood

Door Thickness: 1-3/4″ – 2-1/4″

Door Width: 33″ to 36″

Electric Options: Electric Latch Retraction

Finish: 630/US32D

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Non-Handed

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Limited Warranty: 5 Years

Mechanical Function: Classroom

Minimum Stile Size: 4-3/4″

Origin: USA

Pack Height: 6″

Pack Length: 38″

Pack Qty: 1

Pack Volume: 1710 in³

Pack Width: 7.5″

Physical Appearance: Wide Stile Pushpad

Restrictions: None

Reversible: Yes

Series: 8800 Series Rim Exit Devices

Ship Weight: 15 lbs.

Strike Standard: 649

Subtype: Rim Exit Devices

Trim Type: Less Trim

Type: Exit Devices

Ul Listing: UL10C & UL305

Unit of Measure: Each

Resources

• 8888, 12-8888, 8800, 12-8800, Etc. Installation Instructions
• 12-8800 Rim Series Center Chassis Assembly (16 Function)
• 12-AL-8800/12-GL-8800 Rim Series Center Chassis Parts List
• 12-AL-8816/12-GL-8816 Rim Series Center Chassis Parts List
• 12-AL-8863/12-GL-8863 Rim Series Center Chassis Parts List
• 12-AL-8866/12-GL-8866 Rim Series Center Chassis Parts List
• 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
• 2020 Sargent Electroguard Catalog
• 43-Flush End Cap Rail Cutting Installation Instructions
• 55-Signal Switch for 80 Series Installation Instructions
• 56-Electric Latch Retraction Exit Device Sell Sheet
• 565 & 665 Metal End Cap Kit Installation Instructions
• 57-Delayed Action 80 Series Exit Device Installation Instructions
• 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
• 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
• 80 Series Brochure
• 80 Series Exit Device Environmental Product Declaration
• 80 Series Exit Device LL Lever Handle Trim Installation Instructions
• 80 Series Mechanical Panic Exit Device – Environmental Product Declaration (EPD)
• 816 Cylinder Dogging Kit Parts List
• 8600/8700/8800/8900 Wide Stile Rail Assemblies Parts List
• 8800 & 12-8800 Series Rim Exit Devices (16/28/63/66 Functions) Installation Instructions
• 8800 Rim Series Center Chassis Assembly (16 Function) Parts List
• 8800 Rim Series Center Chassis Assembly (28 Function) Parts List
• 8800 Rim Series Center Chassis Assembly (63 Function) Parts List
• 8800 Rim Series Center Chassis Assembly (66 Function) Parts List
• 8800 Series Rim Exit Devices Cut Sheet
• 8800 Series Rim Exit Template
• 8800/12-8800 & WS-12-8800 Rim Type Exit Device Template
• 8800/12-8800 Rim Type Exit Device Template
• 8800/8888 Rim Series Center Chassis Assembly Parts List
• 8893 Dummy Rail Assembly Parts List
• 8893 Exit Device Inactive Trim Installation Instructions
• 8893 Exit Device Template
• 8895 Active Dummy Rail Assembly Parts List
• 8895 Exit Device Active Trim Installation Instructions
• AL- Alarmed Exit Device Installation Instructions
• AL-8800/GL-8800 Rim Series Center Chassis Parts List
• AL-8816/GL-8816 Rim Series Center Chassis Parts List
• AL-8828/GL-8828/12-AL8828/12-GL8828 Rim Series Center Chassis Parts List
• AL-8866/GL-8866 Rim Series Center Chassis Parts List
• Anti Vandal Pull Trim Instructions – 8800, 8900, PE80
• Basic Fundamentals – Exit Devices
• Electric Dogging for 80 Series Installation Instructions
• HC8800 & 12-HC8800 Rim Exit Mounting Shim Installation Instructions
• HC8800/12-8800 Rim Series Center Chassis Parts List (All Functions)
• Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
• Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructions
• Video: 8500/8800 Exit Device Latchbolt Monitoring Adjustment Installation
• Windstorm Solutions – Exit Devices
