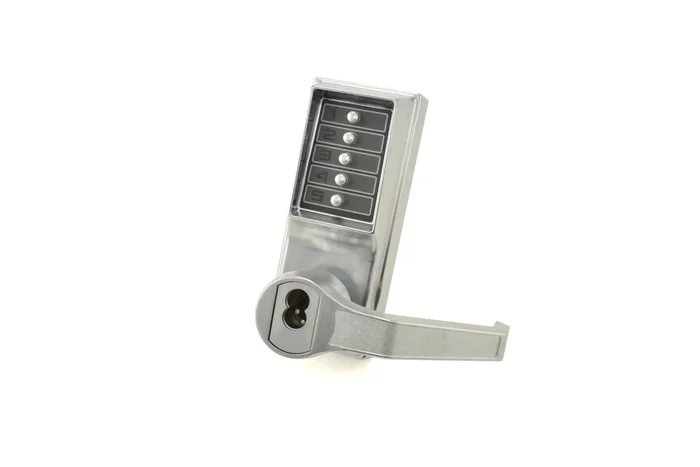

Right Hand Reverse Mechanical Pushbutton Lever Mortise Combination Entry Passage Lockout with Key Override Prep – Satin Chrome Finish

Description

Dormakaba RR8146B26D Right Hand Reverse Pushbutton Mortise Entry Lock with Key Override, Satin Chrome

Simplex Dormakaba RR8146B26D Right Hand Reverse Mechanical Pushbutton Lever Mortise Combination Entry Passage Lockout with Key Override Prep in Satin Chrome Finish offers a robust solution for access control between public and private spaces. Designed for ease of use, this fully mechanical lock eliminates the need for keys, cards, or batteries, ensuring reliability without the ongoing costs of material and labor for replacements. This lock features a single access code, simplifying management for all users. The easy programming via the keypad allows for quick changes without removing the lock from the door, ensuring seamless operation. Constructed with vandal-resistant, solid metal pushbuttons, the RR8146B26D is built to withstand the rigors of daily use. With a crossbore size of 2-1/8 inches, it accommodates door thicknesses ranging from 1-3/8 inches to 2-1/4 inches. The elegant satin chrome finish not only enhances aesthetic appeal but also ensures durability. The lock is factory-handed as Right Hand Reverse and comes with a 3-year limited warranty, providing peace of mind. Ideal for commercial applications, the Simplex RR8146B26D ensures secure access while maintaining a professional appearance, making it a preferred choice for discerning building professionals.

Right Hand Reverse Mechanical Pushbutton Lever Mortise Combination Entry Passage Lockout with Key Override Prep Satin Chrome Finish

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

• Factory-Handed; Not Field Reversible
• Fully Mechanical Lock Eliminates the Material and Labor Expense of Battery Replacements
• Single Access Code—One Easy-to-Manage Code for All Users
• Vandal Resistant, Solid Metal Pushbuttons
• Lock is Easily Programmed Via Keypad Without Removing Lock From the Door

Attributes

Category: Mechanical Commercial Locksets

Crossbore Size: 2-1/8″ Bore

Design: Simplex Lever

Dimension: 3-1/8″ x 7-3/8″; 3-13/16″ Projection

Door Range: 1-3/8″ to 2-1/4″

Door Thickness: 1-3/8″ to 2-1/4″

Finish: Satin Chrome

Finish Code: 26D

Function: Combination Entry with Key Override

Handing: Right Hand Reverse

Hazardous Material: NO

Lever Knob Design: Return Lever

Manufacturer Warranty: 3 Year Limited Warranty

Material: Cast Zinc

No Of Inners: 1

Order_ Qty: 1

Series: 8000 Series

Strike: 4-7/8″ x 1-1/4″ Deadbolt/Latch Mortise Strike Plate

Strike Dimension: 1-1/4″ x 4-7/8″

Subcategory: Mechanical Pushbutton Locksets

Subtype: Mechanical Pushbutton Locksets

Type: Mechanical Commercial Locksets

Ul Listing Type: 3-Hour UL/ULC Fire Rating for “A” Labeled Doors

Upc: 036448807628
