RFF Series Face Frame Hinge with Soft-Close by Richelieu

Description

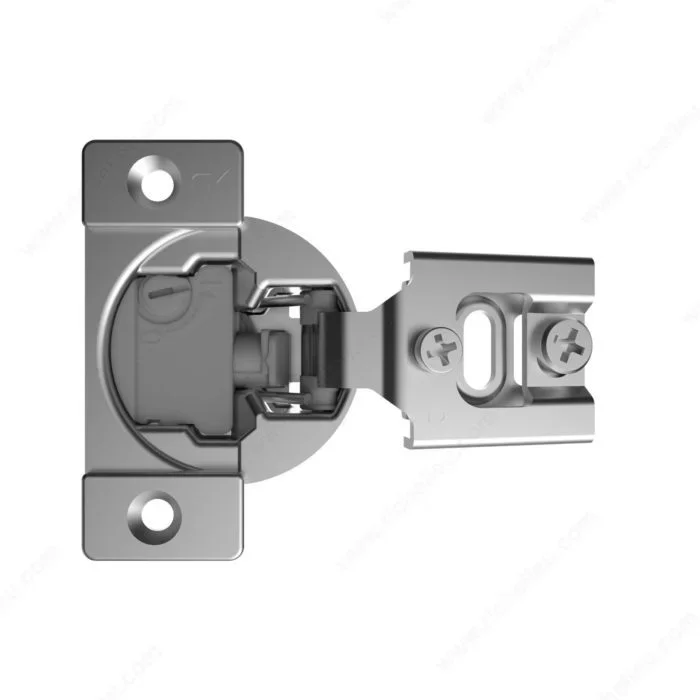

Richelieu RFF30120040 RFF Series Soft-Close Face Frame Hinge

Richelieu RFF30120040 RFF Series Face Frame Hinge with Soft-Close offers an innovative solution for cabinetmakers and users of face frame cabinetry. This hinge is crafted with a progressive soft-closing mechanism that ensures a smooth, gentle closure, making it ideal for both small and large overlays. The design accommodates a cabinet thickness of 3/4 inch and door thicknesses ranging from 5/8 to 15/16 inch, allowing for versatile application across various cabinetry styles. Featuring a wrap-around mount and a hinge opening angle of +105°, the RFF30120040 hinge is engineered for easy installation and maximum functionality. The milling requirements include a depth of 7/16 inches and a diameter of 1 3/8 inches, ensuring a precise fit. The screw-on fixing type simplifies assembly and adjustment, promoting a reliable performance over time. Designed with user convenience in mind, this hinge not only enhances the aesthetic appeal of cabinetry but also elevates the overall user experience by preventing slamming doors. With an overlay of 1/2 inch, the Richelieu RFF series hinge is the perfect choice for those seeking quality, durability, and seamless operation in their cabinetry solutions.

RFF Series Face Frame Hinge with Soft-Close

Richelieu’s soft-closing RFF hinges series is designed to offer the advantage of concealed hinges for small and large overlays for cabinetmakers and users of face frame cabinetry. The series features fast assembly and full adjustment with a progressive soft-closing mechanism technology to provide a smooth and soft-closing movement regardless of the door weight or size.

Attributes

Brand: Richelieu

Cabinet Thickness: 19 mm

Cabinet Type: Face Frame

Closing Mechanism: Soft-Closing

Door Thickness: 16 to 24 mm

Fixing Type: Screw-On

Hinge Opening Angle: +105°

Mechanism: Soft-Closing

Milling Depth: 11 mm

Milling Diameter: 35 mm

Mounting Type: Wrap-around Mount

Overlay: 1/2 in

Product #: RFF30120040

Product number: RFF30120040

Product №: RFF30120040

Unit 1: case – 300

Unit 2: case – 300
