Regulator Self-Locking 7/16in Vertical by Compx Security Products

Description

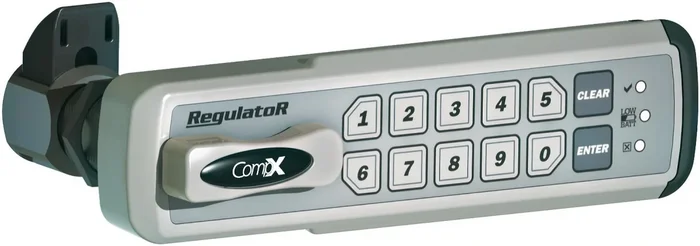

Compx REG-S-V-1 Regulator Self-Locking 7/16in Vertical

Compx Security Products REG-S-V-1 Regulator Self-Locking 7/16in Vertical offers a seamless blend of security and convenience for varied applications. This self-locking mechanism features SlamCAM technology, allowing users to effortlessly secure cabinet doors or drawers simply by closing them-no need to manually lock. Ideal for environments such as healthcare, schools, and retail display, the REG-S-V-1 is designed to fit both wood and metal cabinet doors. With the capability to store up to twenty codes-nineteen user codes and one supervisor code-this lock ensures easy access management for multiple users. The keypad is user-friendly, featuring an easy-to-clean membrane surface and four different configurations for installation flexibility. The lock boasts an impressive lifespan of 75,000 cycles, and a low battery indicator helps prevent unexpected downtime.Installation is straightforward with a 3/4″ mounting hole, and battery replacement is hassle-free thanks to the conveniently accessible external battery compartment. Available in multiple cylinder lengths, including 7/16″, the REG-S-V-1 is perfect for lockers, storage enclosures, file cabinets, and computer server racks. Choose Compx Security Products REG-S-V-1 for reliable security that fits your needs.

Regulator Self-Locking 7/16in Vertical

Notice: The info below is not item specific.

The Regulator is available in two versions: self-locking and manual locking. Self-locking Features: SlamCAM, a spring loaded latch, which allows the user simply to close the cabinet door or drawer — no need to return the knob to the locked position. Manual locking version, which uses existing CompX National cams, requires users to rotate the knob into the unlocked and locked positions.

Applications:

• Cabinet doors or drawers.
• Lockers.
• Storage enclosures.
• File cabinets.
• Computer server racks.

Markets:

• Healthcare / EMS.
• Schools / universities.
• Laboratory.
• Office furniture.
• Retail display.

Features:

• Twenty codes per lock: nineteen user codes and one supervisor code; code length is 4-8 digits.
• Available in two versions — self-locking featuring SlamCAM and manual locking.
• Low battery indicator.
• 75,000 cycles; extended battery life reduces replacement and labor/maintenance costs.
• Battery compartment is easily accessible from the outside of the cabinet.
• Four different keypad configurations: left hand, right hand, vertical bottom and vertical top (available in both self-locking and manual locking).
• Install on new or retrofit applications.
• Uses 3/4″ mounting hole.

Specifications:

• Self-locking:
• Self-locking, featuring SlamCAM.
• Spacers provide additional latching dimensions.
• 75,000 cycles – 2 AAA batteries included.
• Convenient external battery installation/removal.
• Low battery indicator.
• Three cylinder lengths – 7/16″, 1-3/16″, 1-3/4″.
• Easy to clean membrane keypad.
• 19 user codes and 1 supervisor code.
• Installs on wood or metal cabinet doors and drawers.
• Manual locking:
• 75,000 cycles – 2 AAA batteries included.
• Convenient external battery installation/removal.
• Low battery indicator.
• Three cylinder lengths – 7/16″, 1-3/16″, 1-3/4″.
• Uses existing CompX National cams with FlexaCam.
• Single use mode.
• Easy to clean membrane keypad.
• 19 user codes and 1 supervisor code.
• Installs on wood or metal cabinet doors and drawers.

Attributes

Alternate Codes: REG-S-V-1, REGSV1

Category: Cam & Drawer Locks Etc., Lock Sets
