Recess Mounted Light, Modular, Hafele Loox5 LED 2092, 12V Aluminum

Description

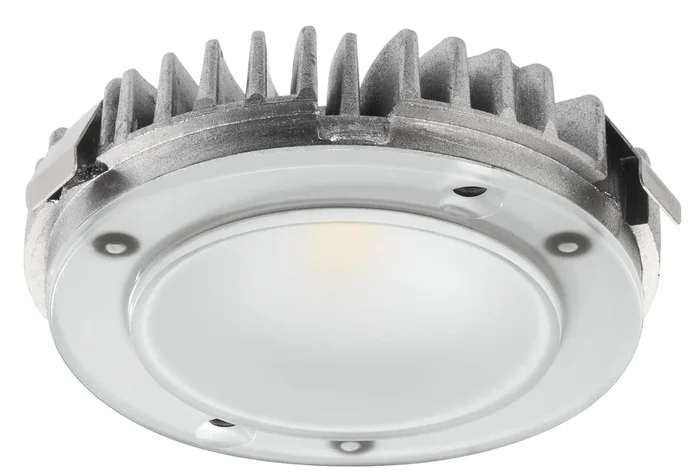

Hafele 833.72.474 Hafele Loox5 LED 2092 Monochrome Recessed Modular Light, Aluminum, 12V

Hafele 833.72.474 Recess Mounted Light offers a sleek and versatile lighting solution perfect for various applications, including workplace, kitchen, and living room furniture. This modular system features a drill hole diameter of 58 mm (2 5/16″) and is designed for both clamp and screw fixing, ensuring ease of installation in any setting. The light emits a warm white glow at 2700 K, creating a welcoming ambiance. Crafted from high-quality aluminum, this fixture boasts a durable construction while incorporating advanced Samsung LEDs for superior performance. With a wattage of 3.40 W, it is energy-efficient and suitable for dimming, allowing you to adjust the brightness to your preference. The light’s integrated cable socket simplifies conversion, making it adaptable to your specific needs. While the Hafele 833.72.474 offers an IP44 degree of protection when mounted recessively, it’s important to note that this rating is reduced to IP20 for surface-mounted applications. This product is supplied with one light module, and additional housings and leads are available for separate order, providing you with a wide range of design options. Elevate your lighting design with Hafele’s innovative recessed lighting solution.

Recess Mounted Light, Modular, monochrome, Hafele Lighting LED 2092, aluminum, 12 V

Drill hole Dia.: 58 mm (2 5/16″), Warm white 2700 K

Modular system: Wide range of design options with interchangeable housings and leads Light with integrated cable socket for quick conversion Equipped with high-quality Samsung LEDs

The IP44 degree of protection is reduced to IP20 when surface mounting or recess mounting with through hole.

Attributes

Area of application: Work place lighting, kitchen and living room furniture, counters

Color temperature: 2,700 K

Degree of protection: IP45 (recess mounted light); IP20 (surface mounted downlight)

Dimmable: yes

Drill hole Ø: 58.00 mm

Energy efficiency class: G

Housing material: Aluminum

Installation: For mounting in drilled hole and for clamp fixing, or for screw fixing

Installation reference: The degree of protection IP44 is reduced to IP20 when using housing for undermounted light.

Light color: Warm white

Model: LED 2092

Nominal voltage: 12.00 V

Order reference: Please order housing and lead separately.

Refraction angle: 35.00 °

Supplied with: 1 light module

Version: Dimmable monochrom

Wattage: 3.40 W
