Description

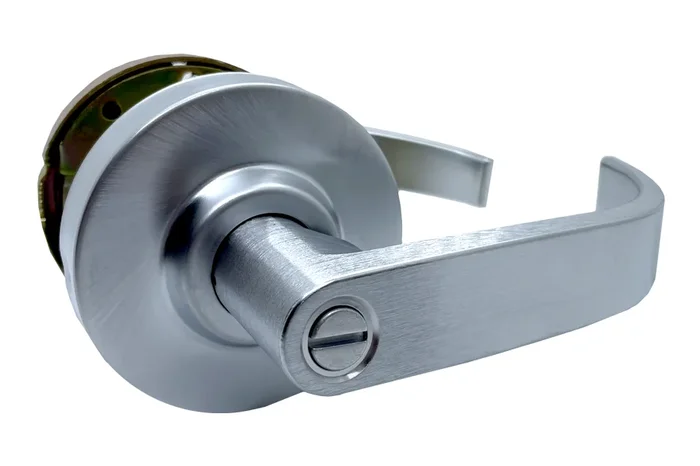

Arrow Lock RLX02BRR26D-2 3/4 BS Privacy Rigid Broadway Lever, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

Arrow Lock Company RLX02BRR26D-2 3/4 BS Privacy Rigid Broadway Lever presents a robust solution for both residential and commercial applications. This Grade 2 lockset features a freewheeling lever operation that enhances its resistance to abuse, making it ideal for high-traffic areas. Designed with versatility in mind, the RLX Series allows for easy replacement or upgrading of existing locksets thanks to its removable through bolts and a variety of available finishes and functions. Specifically tailored to accommodate door thicknesses ranging from 1-3/8″ to 1-3/4″, the RLX02BRR is factory set for 1-3/4″ doors, ensuring a precise fit. Its ANSI strike size of 1-1/4″ x 4-7/8″ and a 2-3/4″ backset latch make it a reliable choice for any installation. With a standard 6-pin solid brass cylinder and two nickel-plated brass keys, security is paramount, while the non-handed design simplifies installation. Certified by BHMA A156.2, Series 4000, and UL Listed, this lockset carries a 10-year warranty, underscoring its durability. Available in a sleek Satin Chrome finish, the RLX02BRR26D-2 not only enhances security but also adds a touch of modern elegance to any door.

Privacy Rigid Broadway Lever, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

Notice: The info below is not item specific.

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification:
  BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action:
  Standard.
• Door Thickness:
  Fits 1-3/8″ to 1-3/4″, factory set for 1-3/4″
• Strike:
  ANSI 1-1/4″ x 4-7/8″
• Latch:
  2-3/4″ backset, 1-1/8″ front
• Cylinder:
  Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing:
  Non-Handed.
• Case Quantity:
  6 per case.
• Average Case Weight:
  26 lbs.
• Warranty:
  10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A:
  Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 – Bright Brass
• 613E/US10BE – Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D – Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8″ to 1-3/4″, factory set for 1-3/4″
• Latch: 2-3/4″ backset, 1-1/8″ front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4″ x 4-7/8″

Attributes

Alternate Codes: RLX02BRR26D-2 3/4 BS, RLX02BRR26D234BS

Backset: 2-3/4″

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Certifications: A117.1, A156.2, A156.41, ADA, ANSI, BHMA, ICC, UL/cUL Listed 3 Hour

Door Application: Cylindrical Levers

Door Bore Prep: Cylindrical Lockset 2.125in Prep

Door Thickness: 1-3/8″-1-3/4″

Finish Code: 26D

Finish Color: Satin Chrome

Grade: Grade 2

Handing: Non-Handed

Key Quantity: 2

Latchbolt Type: 2-3/4″ Spring Latch

Lever Design: Broadway

Manufacturer: Arrow Lock Company

Rose/ Escutcheon: Rose

Series: RLX

Strike Type: Default ANSI
