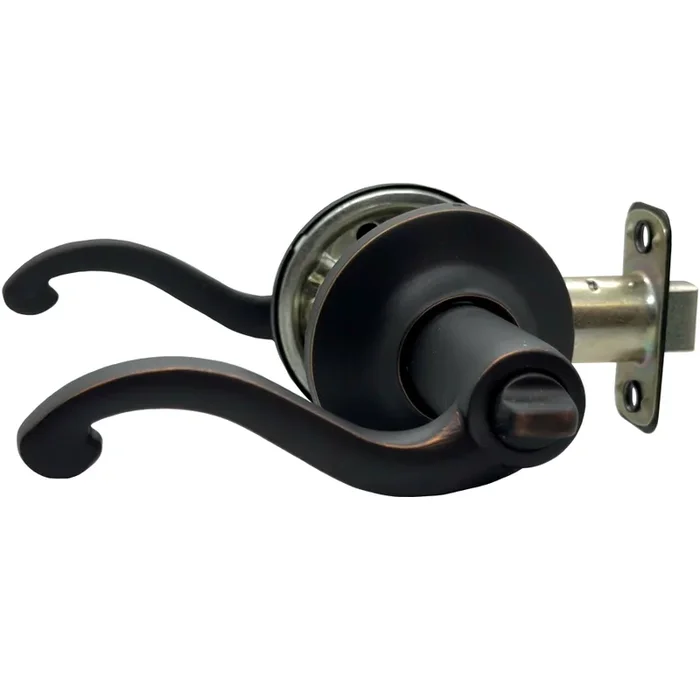

Privacy Lever – Savannah, RC Adjustable Backset 2-3/8in – 2-3/4in, Grade 3, Oil Rubbed Bronze

Description

Yale 201 SL 10BP-ISO Savannah Privacy Lever, RC Adjustable Backset, Grade 3, Oil Rubbed Bronze

Yale Residential 201 SL 10BP-ISO Privacy Lever combines exceptional strength and style in one elegant design. Crafted as part of the New Traditions series, this privacy lever features a Savannah design that not only enhances the aesthetic of any interior but also provides comfort and ease of use. The lever is built on a robust ANSI/BHMA grade 3 chassis, ensuring durability and long-lasting performance. Designed for easy installation, the 201 SL lever comes with a Quick-Install system that simplifies the mounting process, further enhanced by pre-installed screws and a square spindle. The adjustable backset accommodates both 2-3/8″ and 2-3/4″ configurations, making it versatile for various door specifications. With a solid brass key cylinder and housing, this lever offers reliable security, complemented by a heavy-duty shroud for added resistance against tampering. The oil-rubbed bronze finish not only provides a sophisticated look but is also designed for longevity. Suitable for doors with a thickness between 1-3/8″ to 1-3/4″, this lever is ideal for privacy applications, offering push-button locking for panic-free egress. The Yale Residential 201 SL 10BP-ISO is an excellent choice for homeowners seeking a blend of security, functionality, and style in their residential spaces.

Privacy Lever – Savannah, RC Adjustable Backset 2-3/8in – 2-3/4in, Grade 3, Oil Rubbed Bronze 613/US10BP

Notice: The info below is not item specific.

New Traditions from Yale outstanding strength, durability and simple, elegant designs highlighted by natural curves for comfort and ease of turning. All new traditions products are built on a steel ANSI/BHMA grade 3 chassis and feature concealed holding screws and solid brass cylinder assemblies. In addition, all new traditions products feature Quick-Install, a unique chassis design, which drastically reduces installation time.

Features:

• ANSI/BHMA Certified grade 2
• Available in 9 distinctive finishes
• Easy install mounting system – square spindle simplifies installation – knobs, levers
• Pre-installed mounting screws
• Concealed mounting screws – clean upgraded look
• Available KW-1, SC-1 keyway
• E1R (Para) keyway available for deadbolts and levers only
• Push button locking – panic-free egress
• Solid brass key cylinder and housing
• Removable lever/knob and rosettes – allows for easy scratch-free installation
• Front removable deadbolt cylinder – premier series
• Heavy-duty shroud – added anti-pry security
• Four-wound spring chassis – heavy-duty feel, eliminates lever sag
• Warranty – 3-year mechanical and 1-year finish when used in commercial, institutional or industrial applications

Specifications:

• Door Specs:
• 2-1/8″ Face bore
• 1″ Edge bore
• 2 3/8″ or 2 3/4″ Backset
• Latch: Adjustable 2 3/8″ to 2 3/4″ RC (round corner)
• Door Thickness: 1-3/8″ to 1-3/4″
• Cylinder: 5-Pin cylinder, KW-1 compatible, SC-1, Para optional
• Keying: KD (keyed different), KA3 (keyed alike
• Faceplate: 1″ W x 2 1/4″ H, RC (round corner)
• Strike: 2-1/4″ Full Lip, RC (round corner)
• Certified: A156.2 Series 4000, grade 3

Lever Designs:

• ML: Mesa
• NL: Niagara
• PL: Prairie
• SL: Savannah
• WL: Woodland
• VI: Vidalia

Functions:

• 81 Dummy
• 101 Passage
• 161 One sided w/plate
• 201 Privacy
• 221 Bath – Privacy with US26 interior finish
• 701 Entry knob/lever
• 771 Entry lever/lever
• 74LC Entry SFIC

Finishes:

• 605/US3 – Bright brass
• 609/US5 – Satin brass, blackened, satin relieved, clear coated
• 613e/US10BP – Dark oxidized Satin Bronze, permanent
• 619/US15 – Satin nickel plated, clear coated
• 620/US15A – Satin nickel plated, blackened, satin relieved, clear coated
• 625/US26 – Bright chrome plated
• 626/US26D – Satin chrome plated

Attributes

Alternate Codes: 018740, 201 SL 10BP, 201SL10BP, 201 SL 10BP-ISO, 201SL10BPISO, 45202K01, YAR201 SL 10BP, YARYH201SL10BP, YARYR201-SL-0BP, YH201SL10BP, YR201-SL-0BP, YR201SL0BP, YR201 SL 10BP

Backset: 2-3/8″

Category: Levers, Lock Sets, Residential Locks

Door Bore Size: 2-1/8″

Door Thickness Max: 1-3/4″

Door Thickness Min: 1-3/8″

Finish Color: Oil Rubbed Bronze

Function: Privacy

Grade: Grade 3

Knob/ Lever Design: Savannah

Knob/ Lever Style: Lever

Latch Bolt Face Type: Round Corner

Latch Bolt Faceplate Size: 2-1/4″ x 1″

Latch Bolt Throw: 1/2″

Latch Bolt Type: Springlatch

Lock Category: Cylindrical Lock

Restricted Keyway: No

Rose/ Escutcheon Style: Rose

Series: New Traditions

Strike Size: 2-1/4″

Resources

• Cut Sheet
