Description

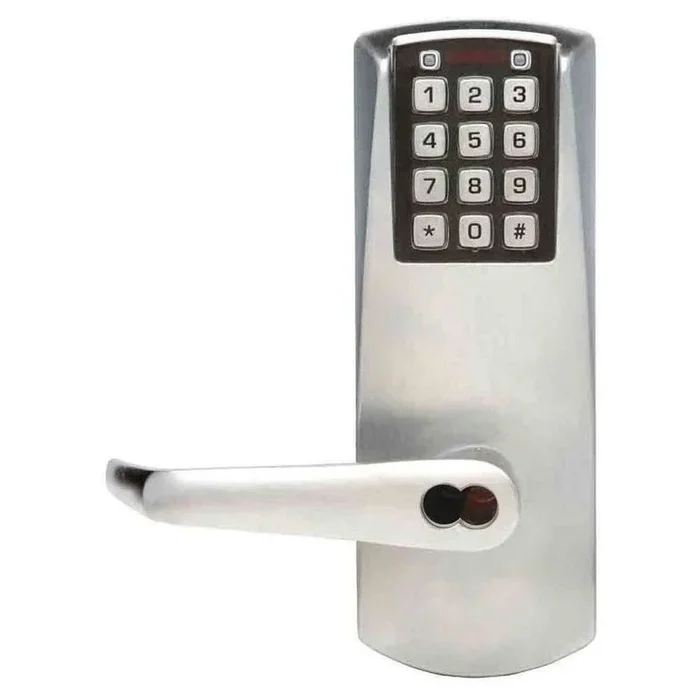

Dormakaba P201YBLL-626-41 Powerplex 2000 Exit Trim

Kaba Access Dormakaba P201YBLL-626-41 Powerplex 2000 Exit Trim offers a seamless solution for secure access in commercial environments. Designed for compatibility with Yale 7100 and Corbin ED5200 rim devices, this exit trim features a 6/7-pin SFIC preparation, allowing for easy integration into existing systems. With a satin chrome finish, it not only enhances security but also adds a touch of modern elegance. One of the standout features of the PowerPlex Exit Trim is its innovative design that requires no wiring to or through the door. This minimizes the risk of damage from pinched wires, reducing potential service calls and ensuring a hassle-free installation. The vandal-resistant numeric keypad, equipped with solid metal pushbuttons, provides reliable access control. This non-handed device is pre-assembled for left-hand door installation but can be easily adjusted on-site. It supports multiple backset options, with cylindrical models featuring a 2¾” (70 mm) backset and mortise models also offering a 2¾” (70 mm) backset. The trim includes both ANSI A115.3 “T” and A115.2 ASA strikes, ensuring versatility. With a minimum stile requirement of 5″ (127 mm) and interchangeable core options, the Dormakaba P201YBLL-626-41 is an excellent choice for enhancing security and convenience in any commercial setting.

Powerplex 2000 Exit Trim

PowerPlex Exit Trim, Yale 7100, Corbin ED5200 Rim Devices, 6/7-Pin SFIC Prep, Less Core, Satin Chrome

PowerPlex Exit Trim, Yale 7100, Corbin ED5200 Rim Devices, 6/7-Pin SFIC Prep, Less Core, Satin Chrome,

PowerPlex Locks require no wiring to or through the door, eliminating the risk of damage from pinched wires that can result in costly callbacks.

• Numeric Keypad:Vandal resistant, solid metal pushbuttons
• Handing:
  • Non-handed, pre-assembled for left-hand door installation — easily changed in the field
• Backset:
  • Cylindrical:2 ¾” (70 mm) backset, 2 ⅜” (60 mm) backset
  • Mortise:2 ¾” (70 mm) backset
  • Exit Trim Model:Varies by exit device
• Latches:
  • Cylindrical Models:½” (13 mm) throw latch, ¾” (19 mm) throw latch (optional)
  • Mortise Models:¾” (19 mm) latch, 1″ (25 mm) dead bolt (optional)
• Strikes:
  • Cylindrical Models:Packaged standard with both ANSI A115.3 “T” Strike and A115.2 ASA Strike
• Minimum Stile Required:5″ (127 mm)
• Key Override Options
• Key-in-Lever Cylinder:Kaba 1539 6-pin cylinder — Schlage “C” Keyway
• Interchangeable Core:Small format — Best and equivalent (6 or 7-pin length); cylinder not included

Attributes

Manufacturer surcharge: 7.0%

Base Material: Brass or Bronze

Commercial Residential: Commercial

Cylinder Type: SFIC Prep Less Core

Finish: 626/US26D

Finish Family: Matte Silver

Installation: Commercial

Lock Platform: Exit Device Trim, CVR & Rim with Keypad

Pack Qty: 1

Series: PowerPlex 2000 Series

Series Name: PowerPlex

Subtype: Exit Device Trim, Concealed Vertical Rod & Rim

Type: Integrated and Pushbutton

Unit of Measure: Each
