Description

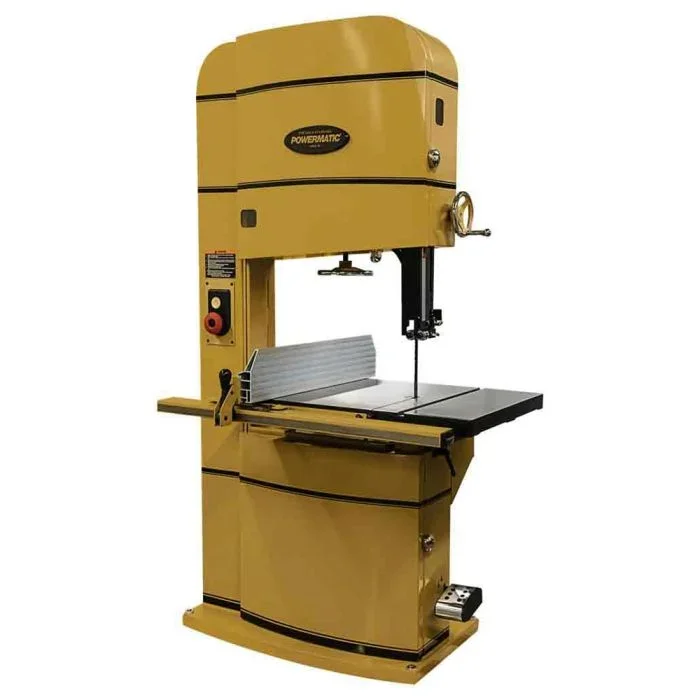

The bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years.
More Information
| Manufacturer |
Powermatic |
| Condition |
New |
| UPC |
73132535360 |
| Features |
- Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
- Exclusive Powermatic T-Square style Accu-Fence® maximizes accuracy and safety
- Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
- Spacious, heavy duty cast iron table with more room in the front of the blade
- The Accu-Fence has complete adjustability for aligning to blade and squaring to table
- Oversized side plate can be used in the horizontal or vertical position
- Foot brake with magnetic switch interrupt provides user with hands free stopping
- Heavy duty upper wheel support and tracking mechanism for smooth operation
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is de-tensioned
|
| PDFs |
|
| Horsepower |
5 HP |
| Motor Phase |
1 Ph |
| Warranty |
5 Years |
| Type |
Floor |
| Table Tilt (Left) |
10 degree |
| Table Tilt (Right) |
45 |
| Miter Gauge Positive Stop |
45, 90 |
| Minimum Dust Collection CFM Required |
600 CFM |
| Band Saw Size/Wheel Diameter |
24″ |
| Cutting Capacity (Width) |
24″ |
| Cutting Capacity (Height) |
15″ |
| Blade Length |
183″ |
| Minimum Saw Blade Width |
1/4″ |
| Maximum Saw Blade Width |
1 1/2″ |
| Outside Dust Port Diameter |
4″ |
| Blade Speed (SFPM) |
2500/4800 SFPM |
| Voltage |
230 V |
| Prewired Voltage |
230 V |
| Amperage |
22 Amps |
