Polished Nickel Fixed Panel Beveled Clamp With Large Leg – C.R. Laurence

Description

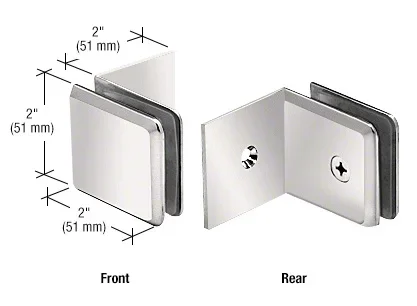

CRL BGC039PN Polished Nickel Beveled Clamp for Fixed Panels with Large Leg

C.R. Laurence BGC039PN Polished Nickel Fixed Panel Beveled Clamp With Large Leg is engineered for durability and style, making it an ideal choice for securing vertical fixed glass panels in various architectural applications. Designed to accommodate glass thicknesses between 3/8″ to 1/2″ (10 to 12 mm), this clamp is crafted from solid brass, ensuring a robust and reliable hold. The BGC039PN model requires a 3/4″ (19 mm) hole in the glass for installation, making it suitable for monolithic tempered glass. Its 90° leg provides enhanced strength while the larger leg design covers more tile area for added stability. With a clearance of just 1/16″ (2 mm) between the glass and wall, it achieves a sleek, minimalistic look, and clear silicone can be applied for a clean, watertight seal. Included with the clamp are mounting screws and gaskets to facilitate easy installation. This product is available in both small and large leg models, allowing flexibility to meet specific project needs. The polished nickel finish adds a touch of elegance to any space, making it a perfect choice for modern interiors. Experience the quality and performance that C.R. Laurence is renowned for with the BGC039PN Fixed Panel Beveled Clamp.

Polished Nickel Fixed Panel Beveled Clamp With Large Leg

• For 3/8″ to 1/2″ (10 to 12 mm)
• Use Monolithic Tempered Glass
• Requires 3/4″ (19 mm) Hole in Glass
• Available in Both Small and Large Leg Models

CRL Fixed Panel Beveled Clamps (With Large Leg) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 1/16″ (2 mm). Clear silicone can be used to provide a clean, water-tight seal. 90º leg provides extra strength. Larger leg covers more tile area. Replacement Gasket is Cat. No. BGCU1G.

SPECIFICATIONS:

Materials: Solid Brass

Glass Thickness Range: 3/8″ to 1/2″ (10 to 12 mm)

Glass Fabrication Required: BGCU1 Requires Notch; BCU4, BGC037 and BGC039 Require 3/4″ (19 mm) Holes

Includes: Mounting Screws and Gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Polished Nickel

Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

Material: Brass

Mounting Type: Wall / Ceiling Mount

Shipping Limitations: None

Resources

• BGC039 Detailed CAD Drawings.dwg
• BGC039 Detailed CAD Drawings.pdf
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• SGC039 BGC039 Template
