Description

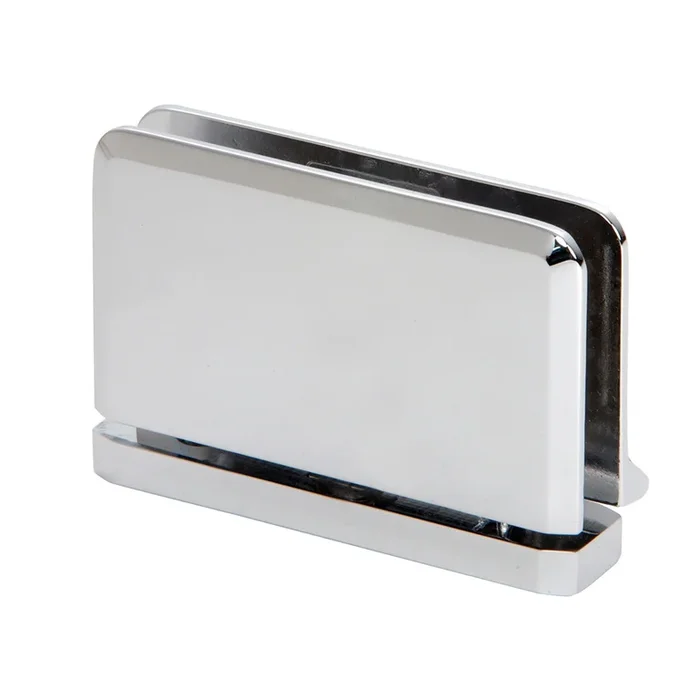

CRL PPH08CH Polished Chrome Prima Hinge with Rear Drip Plate

C.R. Laurence PPH08CH Polished Chrome Prima Hinge with Rear Drip Plate delivers an elegant solution for shower installations while effectively managing water flow. The innovative drip plate design helps deflect water back into the shower, minimizing any escape through the hinge gap. Remarkably, this feature does not interfere with the door’s swing, ensuring smooth operation. Constructed from solid brass, this hinge is compatible with 5/16″ to 3/8″ (8 mm to 10 mm) monolithic tempered glass and can support doors weighing up to 100 lbs. (45 kg) with a maximum width of 31″ (787 mm). The top and bottom mount design allows for more visible glass while reducing the number of cut-outs required compared to standard side-mount hinges. Notably, the hinge self-centers when within 15 degrees of the closed position, enhancing usability. Available in four popular finishes, with additional options upon special order, the PPH08CH is designed for versatility. Drip plates are sold separately in eight finishes for those looking to upgrade their existing installations. This patented hinge series is ideal for residential and hotel shower applications, ensuring both functionality and style in any setting.

Polished Chrome Prima Hinge with Rear Drip Plate

• Attractive Drip Plate on Rear of Hinge Helps Deflect Water Back Into the Shower
• Drip Plate Does Not Interfere with Door Swing
• Use Monolithic Tempered Glass
• Stocked in Four Most Popular Finishes
• Other Finished Available Upon Special Order
• Drip Plates Sold Separately in Eight Stock Finishes

The
CRL Prima Hinge with Rear Drip Plate helps deflect water back into the shower. Water that may have escaped the shower in the gap between the hinge body and base plate is minimized due to the Drip Plate. The Drip Plate itself does not interfere in any way with the door swing. Stocked in our four most popular finishes, with other finishes available on special order. Drip Plates themselves (PPHWP1) are stocked in eight finishes for customers wanting to go back and add them to an existing installation.

Optional 5 degree Pivot Pin set (For Prima, Cardiff, Rondo, and Shell Series): Optional 5 degree Pivot Pin Sets are available when you want to alter the closing position of the door by 5 degree. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set: One for the top, and one for the bottom. Not included with hinge purchase. Pre-Set 5 degree Hinge models are available from stock.

Using two hinges with 5/16″ to 3/8″ glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31″ (787 mm).

SPECIFICATIONS:

Glass Thickness: 5/16″ (8 mm) to 3/8″ (10 mm) Tempered Safety Glass

Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.

Construction: Solid Brass

Hinge Swings: Full Rotation

Closing Type: Self-Centering when within 15 degree of closed position.

Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).

Includes: Gaskets, Screws, and Glass Fabrication Dimensions

This hinge series is patented (Patent No. 5,297,313).

Custom finishes are available on request. Contact the CRL Technical Sales Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Design Style: Beveled

Edge Profile: Beveled

Enclosure Type: Corner, Niche, Tailor Made Solutions

Finish/ Color:: Polished Chrome

Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)

Height: 2 in. (51 mm)

Material: Brass

Maximum Door Weight: 100 lbs. (45.4 kg)

Maximum Door Width: 31 in. (787 mm)

Mounting Type: Sill Mount

Opening Style: Pivot(floor)

Self- Centering: Yes

Series: Prima

Shipping Limitations: None

Width: 3-5/8 in. (92 mm)

Resources

• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• PPH08 Template
