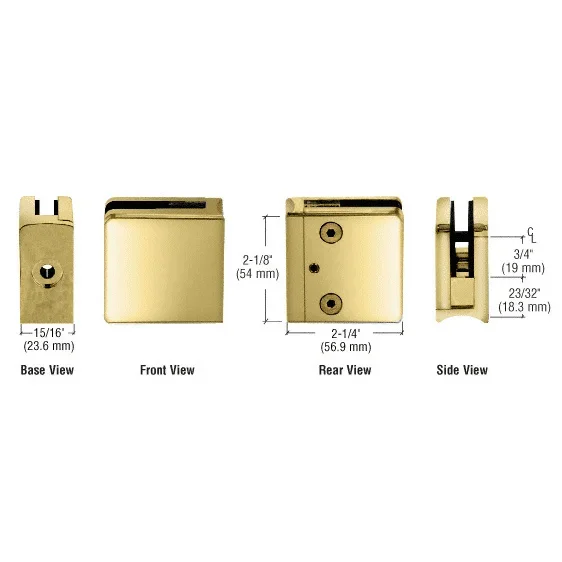

CRL Z606BR Polished Brass Z-Series Square Radius Base Zinc Clamp for 1/4″ 5/16″ Glass
C.R. Laurence Z606BR Polished Brass Z-Series Square Type Radius Base Zinc Clamp is expertly crafted for securing monolithic tempered glass with thicknesses of 1/4″ to 5/16″ (6 to 8 mm). This clamp is ideal for a variety of applications, including mezzanines, partitions, railings, and windbreaks, making it a versatile choice for both commercial and residential projects. Constructed from durable zinc, the Z606BR features a polished brass finish that enhances its aesthetic appeal while ensuring long-lasting performance. For enhanced glass support, a steel pin is included, which requires a 1/2″ (12 mm) hole for installation. The clamp is designed to fit 2″ (51 mm) diameter round tubing, ensuring a secure attachment. Installation is straightforward with the use of CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut for thin wall tubing. The Z606BR also includes rubber gaskets and a grommet for added stability. Custom painted finishes are available upon request, allowing for a tailored look that fits your project’s design. Please note that brass finishes may tarnish over time due to oxidation, and proper care is advised to maintain appearance. The Z606BR is a reliable choice for those seeking both durability and elegance in glass support solutions.
Polished Brass Z-Series Square Type Radius Base Zinc Clamp for 1/4″ and 5/16″ Glass
- For 1/4″ and 5/16″ (6 and 8 mm) Glass
- Use Monolithic Tempered Glass
- For Use on Mezzanines, Partitions, Railings and Windbreaks
- Use Monolithic Tempered Glass
- Steel Pin Available for Additional Glass Support
- Custom Painted Finishes Available Upon Request
This
CRL Z-Series Square Type Radius Base Glass Clamp is designed to be used on glass thickness of 1/4″ to 5/16″ (6 to 8 mm). Constructed from either zinc or stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
For securing the Z-Clamp to thin wall tubing (less than 1/8″), use CRL’s
ZB0LT Socket Head Cap Bolt and
ZRNUT Rivet-Nut. For installation, drill a 17/32″ (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16″ Mandrel and Nosepiece.
NOTE: 1/2″ (12 mm) hole is required if using the steel pin (included with the clamp) for additional glass support.
SPECIFICATIONS:
Glass Thicknesses: For 1/4″ and 5/16″ (6 and 8 mm).
Base Design: Radius
For Use With: 2″ (51 mm) Diameter Round Tubing Only
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication:
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet
Replacement Hardware: CRL ZCS5X5BR for Replacement Screws & Z14SG for Replacement Gasket
Product Warning:
For interior CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
