Polished Brass Geneva 544 Series Wall Mount Offset Back Plate Hinge

Description

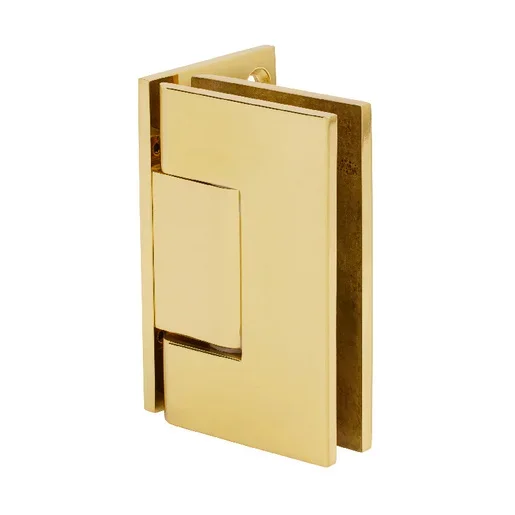

CRL GEN544BR Polished Brass Geneva 544 Wall Mount Offset Back Plate Hinge

C.R. Laurence GEN544BR Polished Brass Geneva 544 Series Wall Mount Offset Back Plate Hinge offers a blend of elegance and functionality, making it an ideal choice for modern shower enclosures. Crafted from solid brass with stainless steel moving parts, this hinge is designed for durability and aesthetic appeal. It accommodates 5/16″ (8 mm) to 1/2″ (12 mm) tempered glass and supports significant weight-up to 80 lbs. (36 kg) with two hinges and 120 lbs. (54 kg) with three, ensuring robust performance for doors up to 32″ (813 mm) wide. This hinge features a self-centering mechanism with a reversible 5-degree pivot pin, allowing for a tighter closure into the shower interior. The standard model comes factory set at a 0-degree closing position, while the pre-set model is configured for a 5-degree angle, enhancing functionality. Custom pivot pins are also available for off-angle installations, providing added flexibility. With three-year warranty coverage and a variety of beautiful finishes, the Geneva 544 hinge caters to both design preferences and practical needs. Ideal for residential and hotel applications, it offers exceptional reliability and style, making it a valuable addition to any glass installation project. Remember to use the specific template provided for accurate cut-out dimensions.

Polished Brass Geneva 544 Series Wall Mount Offset Back Plate Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• Three Year Warranty
• 5 Degree Pre-Set Model (Factory Set for 5 Degree Tighter Closure Into Shower Interior)
• Use Monolithic Tempered Glass

The
CRL Geneva Series of professional Hinges is able to accommodate 5/16″ (8 mm) to 1/2″ (12 mm) glass. A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types. Geneva Hinges are self-centering and contain a Reversible 5 degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate “off-angle” installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.

Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Geneva Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate “off-angle” installations. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). If using the Custom Pivot Pin, contact our Technical Sales Shower Door Department. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin.

Using two hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28″ (711 mm).

Using three hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32″ (813 mm).

SPECIFICATIONS:

Glass Thickness: 5/16″ (8 mm) to 1/2″ (12 mm) Tempered Safety Glass

Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position, or 5 degree Pre-Set Model for tighter closure into shower interior.

Construction: Solid Brass

Hinge Swings: 90 degree in and 90 degree Out

Closing Type: Self-Centering when within 15 degree of Closed Position

Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16″ (8 mm) thick tempered glass.

Custom finishes are available on request. Contact Technical Sales Shower Door Division.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

5 Degree Pre- Set: Yes

Adjustable: No

Back Plate: Offset

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Edge Profile: Square

Finish/ Color:: Polished Brass

Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

Height: 3-1/2 in. (89 mm)

Material: Brass

Maximum Door Weight – 2 Hinges: 80 lbs. (36.3 kg)

Maximum Door Weight – 3 Hinges: 120 lbs. (54.4 kg)

Maximum Door Width – 2 Hinges: 28

Maximum Door Width – 3 Hinges: 32

Mounting Type: Wall Mount

Self- Centering: Yes

Series: Geneva

Shipping Limitations: None

Width: 2-3/16 in. (56 mm)
