Description

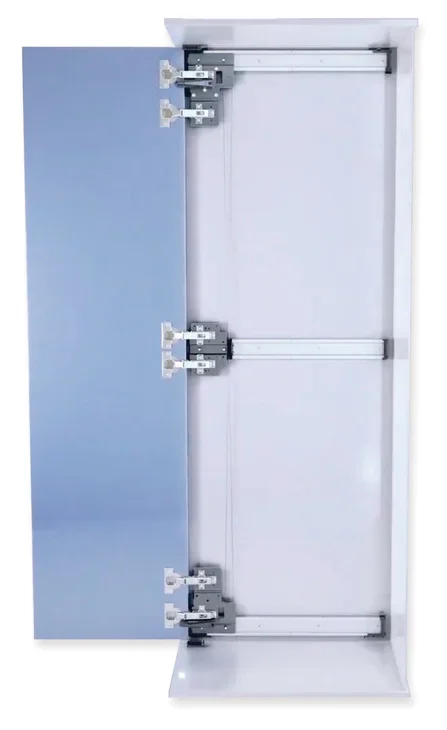

Hafele 408.35.010 Accuride 1532 Pocket Door System

Hafele 408.35.010 Pocket Door System, Accuride 1532 offers a seamless solution for enhancing space efficiency in various applications, including hospitality, micro-living, and recreational vehicles. This system features four soft close hinges and three slides, designed to provide smooth and quiet operation. The rail can be easily cut to size, accommodating different project requirements. With a door retracting 132 mm (5 3/16″) less than the slide length, this system is ideal for inset and partial overlay configurations, making it versatile for various design styles. The product accommodates maximum door heights of 70 7/8″ and widths up to 39″, supporting door thicknesses of up to 32 mm. It is engineered to handle door weights of up to 45 kg (100 lbs), ensuring robust performance even under frequent use. The Hafele 408.35.010 is particularly beneficial for applications requiring a stylish yet functional approach to space management, providing a sophisticated aesthetic while maximizing utility. Suitable for door heights ranging from 1200 to 1800 mm, this system is an excellent choice for those seeking reliability and elegance in their interior solutions. Whether for kitchens, living areas, or commercial settings, this pocket door system delivers performance that meets the demands of modern design.

Pocket Door System, Accuride 1532

4 hinges, 3 slides, TI fit

Soft close hinges Rail can be cut to size Cable system for synchronized slide operation Door retracts 132 mm (5 3/16″) less than slide length For inset and partial overlay
PO = Partial Overlay (<19 mm (3/4") SI = Slim Inset (19-20.6 mm (3/4 – 13/16") TI = Thick Inset (20.6-31.8 mm (13/16 – 1 1/4")

Attributes

Area of application: Hospitality, micro-living, recreational vehicle, kitchen, etc

Door height max.: 70 7/8″

Door width max.: Max. 39″

For door height: 1200 – 1,800 mm

For door thickness: ≤32 mm

For door weight: ≤45 kg

For door width: ≤991 mm

Note on door height: Max. 118 1/8″

Note on door weight: Max. 100 lbs

Version: 4 hinges, 3 slides, TI fit

Resources

• Manufacturer information
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 7.125B
