Pocket Door System Accuride 1234 by Hafele – Architectural Hardware

Description

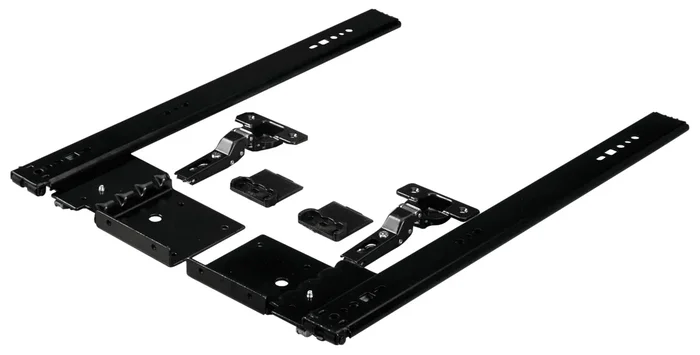

Hafele 408.35.352 Accuride 1234 Pocket Door System (Hinges Not Included)

Hafele 408.35.352 Pocket Door System, Accuride 1234 (Hinges not included) offers a seamless solution for concealed doors in entertainment centers, wall units, and cabinets. Designed for optimal performance, this pocket door system features a runner length of 506 mm (20 inches) and accommodates doors with a maximum weight of 13.6 kg (30 lbs). It is compatible with wood door thicknesses ranging from 16 mm to 31.75 mm (5/8″ to 1 1/4″). The system includes two slides, two pivot blocks, and all necessary mounting hardware, ensuring a straightforward installation process. To achieve the perfect fit, please note that the cut follower strip should be 6 inches shorter than the door height, with a maximum thickness of 19 mm (3/4″). This system supports doors with a height of up to 1,067 mm and a width of 1,067 mm, providing flexibility for various applications. For added convenience, order door fixing sets separately, which include concealed hinges, mounting plates, door stops, and fixing screws. The sleek black zinc finish not only enhances durability but also adds a contemporary touch to your interiors. Elevate your design with the Hafele Pocket Door System and enjoy a blend of functionality and style.

Pocket Door System, Accuride 1234 (Hinges not included)

Length: 506 mm (20″)

Cut follower strip is 6″ shorter than door height Maximum thickness for follower strip is 19 mm (3/4″) Detent out
Wood follower strip is provided by the customer Cut follower strip is 6″ shorter than door height Maximum thickness for follower strip is 19 mm (3/4″) Detent out

Please order door fixing sets (including concealed hinges, mounting plates, door stops and all fixing screws) separately

Attributes

Area of application: For concealed doors in entertainment centers, wall units, and cabinets

Dim. B: 416.00 mm

Dim. C: 13 5/8″

For door height: ≤1,067 mm

For door material: wood

For door thickness: 16 – 31.75 mm

For door thickness max.: 1 1/4″

For door thickness min.: 5/8″

For door weight: ≤13.6 kg

For door width: ≤1,067 mm

Installation: Wood follower strip is provided by the customer Cut follower strip is 6″ shorter than door height Maximum thickness for follower strip is 19 mm (3/4″) Detent out

Length (inch): 20″

Load bearing capacity: 30 lbs.

Material/finish: Black, Zinc

Note on door height: Horizontal max. 24″, vertical max. 42″

Note on door width: Horizontal max. 42″, vertical max. 24″

Runner length: 506.00 mm

Set: Set with tracks

Supplied with: 2 slides 2 pivot blocks and all mounting hardware

Travel: 15 3/8″

Resources

• Accuride 123 and 1234 Pocket Mounting Instructions
• Installation instructions
• Manufacturer information
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 7.116
