Description

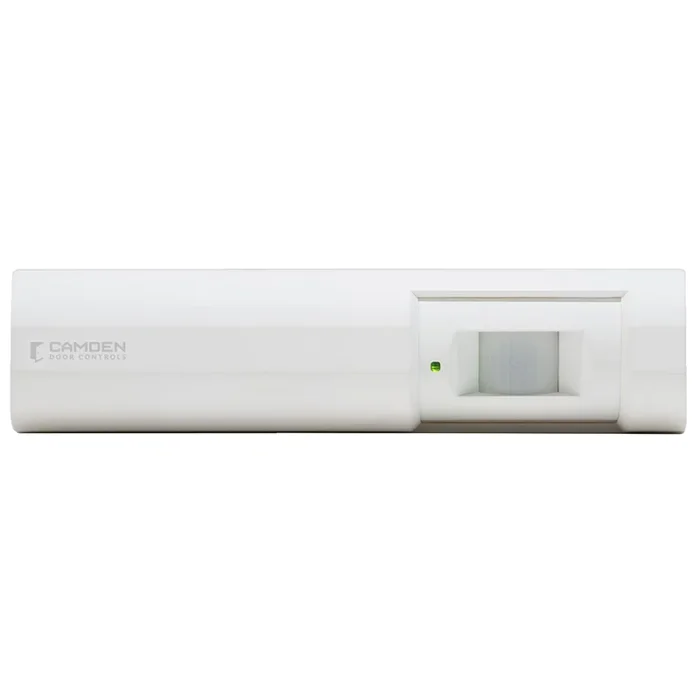

Camden CM-RQE70A Motion Sensor
Camden’s CM-RQE70 PIR ‘REQUEST TO EXIT’ Detectors provide the latest word in design, with a complete list of “high performance” features, including secondary activation device input, door monitoring, two relay outputs, and tamper alarm. Many new programming, installation, and set-up features that have never previously been available. Camden started by making the CM-RQE70 smaller, so it can easily fit on door frames, and then made installing the detector faster and easier. CM-RQE70 comes with 4 factory default operating modes that can be selected with simple push buttons on the circuit board. Have an unusual installation and need custom settings? No problem. You can use the on-board push buttons to customize the default operating modes or program your own custom operating mode. CM-RQE70 isn’t just a new REX detector, it’s a whole new approach to REX detector design!
Attributes
Alternate Codes: CM-RQE70A, CMRQE70A
Base Series: CM-RQE Series
Box Depth Fraction: 7-1/4″
Box Height Fraction: 1-7/8″
Box Width Fraction: 2-1/2″
Category: Access Control, Contacts & Sensors, Hardwired
Commercial Residential: Commercial
Country of Origin: Canada
Country of origin: Canada
Delay Duration: Adjustable 5 to 60 Second Time Delay
Finish: White
Finish : Applied
Finish Family: White
Fire Rated: No
Fire Rating: No
Installation: Commercial
Lights: LED
Limited Warranty: 3 Years
Line Draw: 50mA
Operating Voltage: 12/24 VDC
Origin: Canada
Pack Height: 1.87″
Pack Length: 7.25″
Pack Qty: 1
Pack Volume: 33.89 in³
Pack Width: 2.5″
Plastic Color: White
Product Height: 1.75″
Product Length: 1.75″
Product Width: 7″
Range: Up to 10 Square Feet
Relay Action: Multi Function
Relay Type: DPDT
Relays: 2
Sensor Technology: Touchless Wave
Series: Camden Electrical Accessories
Ship Weight: 0.25 lbs.
Subtype: Motion Sensor
Trigger: Selectable
Type: Sensors, Switches, Relays, Timers
Ul Listing: 294
Unit of Measure: Each
Upc: 6.70E+11
Upc Code: 6.70E+11
