Description
Use these small 6-volt transformers to replace vintage Touchplate PL-6 or PL-120 pilot light transformers in systems built before mid-1985. Pilot lights are useful for indicating where room lights are still on and were typically used in control panels found in a primary bedroom, kitchen, or near a home’s main entrances.
Features
- AC Power Filament Transformer with center tap for use in 2-wire low voltage system
- transformers are compatible with both Touch Plate vintage pilot lighted switches and the new LED pilot light switches
- for use in vintage systems manufactured prior to mid 1985 when the digital panels first came out

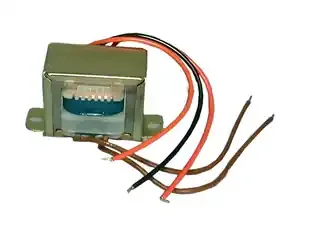

- use the low voltage wires for 6V to power the pilot lights; (the additional 3V low voltage wire in photo is not currently available)
- Input Voltage: 120 VAC – black wires
- Secondary Rated Voltage: 6 VAC – low voltage wires
- Rated Current: 1000 mA (1A)
- Secondary VAC with no load: 7.86 V
- Given Output voltage is across the entire secondary
- Resistive Load: 6.8 Ohms
- Output VAC with load: 7.05 V
- replaces vintage PL6 and PL120 pilot light transformers
- Classic style with metal bracket with mounting holes
- Mounting hole center to center: 2.30″
- Height: 1.7″
- Width: 1.97″
- Depth: 1.58″
- Actual product model and brand may differ from image shown but will work in a Touch Plate system to power the pilot lights
Visit Low Voltage Replacement Transformers, Switches, Relays & Wall Covers to find updated electrical devices for mid-century low volt lighting systems.
Note: The old Permoflux PL6 were used strictly to illuminate the pilot light bulbs in the switches (historically clear buttons with red pilot light bulbs behind them); removing them from the system will not affect the functionality of the switch.
