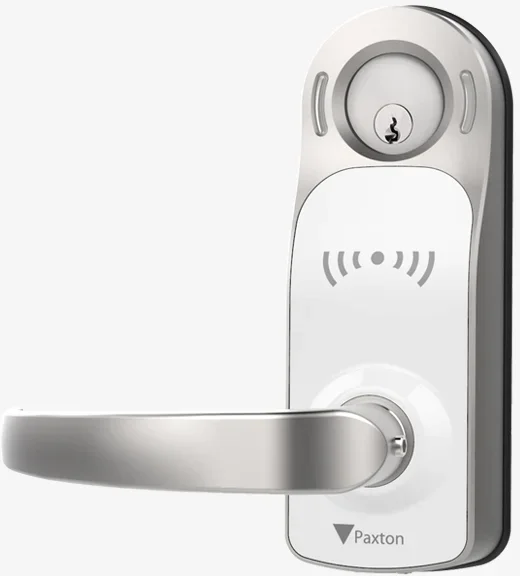

PaxLock Pro – Eclipse Lever Mortise Lock with Dual Frequency Reader

Description

Paxton Access 900-650WT-US PaxLock Pro Eclipse Lever Mortise Lock, Dual Frequency, Battery Powered, White

Paxton Access Inc. 900-650WT-US PaxLock Pro is a cutting-edge solution for modern access control needs, combining sleek design with advanced technology. This Eclipse Lever Mortise Lock features a dual frequency reader supporting both 13.56 MHz and 2.4GHz Bluetooth, ensuring versatile compatibility with multiple token types, including MiFare and HID Prox. Engineered for convenience, it can operate as a standalone device or integrate seamlessly with a Paxton10 system for enhanced functionality. This battery-powered lock operates using four AA alkaline batteries, delivering an impressive 55,000 operations before requiring a change. Its wireless capabilities allow for real-time event reporting and hands-free access, making it perfect for high-traffic environments. The PaxLock Pro supports up to 5,000 users in standalone mode and 50,000 users online, with the ability to store up to 16,000 events for comprehensive tracking. Designed to fit standard cylindrical doors with a 2-3/4 inch backset, the lock operates silently and boasts a customizable door open time of 1 to 60 seconds. With a five-year warranty from Paxton, you can trust in the durability and reliability of this innovative access control solution. Available in a stylish white finish, the PaxLock Pro is the ideal choice for both residential and commercial applications.

PaxLock Pro, Eclipse Lever Mortise Lock, Dual Frequency Reader, Battery Powered, 13.56 MHz, 2.4GHz, Bluetooth, AES128, 2-3/4in Backset, ISED, ANSI, UL, FCC, White

Notice: The info below is not item specific.

The PaxLock Pro represents Paxton’s 3rd generation of electronic door handle; offering a robust, featureful and aesthetically pleasing product suitable for a multitude of installations. The new patented design has been created to be both simple to install, intuitive to use and backed up by Paxton’s market leading 5 year warranty. Offering two modes of operation the user can choose to use the PaxLock Pro as a standalone offline device, or connect it to a Paxton10 system via a Paxton10 wireless connector.

Features:

• Dual frequency reader.
• Wireless real-time event reporting.
• When PaxLock Pro – latch is unlocked the handle moves freely.
• Dual standalone and online functionality in one unit.
• Wireless door handle to use with a Paxton10 system or in standalone.
• Built-in Bluetooth wireless technology, allowing the use of smart devices.
• Compatible with standard cylindrical doors using tubular latch.

Specifications:

• system:
• Maximum total tokens/users – standalone: 100 Card packs (up to 5,000 tokens/users)
• Maximum total tokens/users – online: 50,000
• Token compatibility: Paxton, EM4100/02, MiFare, MiFare Classic, MiFare DESFire EV1, MiFare Plus, MiFare Ultralight, MiFare Ultralight C, MiFare Mini, HID Prox, Sony, FeliCa Lite-S.
• Stored events: 16,000
• Hands free compatible: Yes (touch to enter)
• Door open time: 1-60 Seconds
• Silent operation: Yes
• Door traffic: Typically up to 75 uses per day
• Electrical:
• Battery Type: 4x AA 1.5V Alkaline
• Battery Life: 55,000 operations
• Communication:
• Wireless: Bluetooth 2.4GHz (IEEE 802.15.4)
• Default channel: 25
• Recommended wireless devices per Paxton10 Wireless connector: 10
• Typical wireless range: Bluetooth 15m/50ft
• Encryption: AES128
• Hardware:
• Dimensions body (W x H x D): 2-33/64″ x 5″ x 1-49/64″
• Dimensions including handle (W x H x D): 6-3/8″ x 5″ x 3-27/64″
• Warranty: Paxton 5 year
• Environment:
• Operating temperature: Reader side: + 32°F ~ + 120°F.; Battery side: + 32°F ~ + 120°F
• IK Rating: N/A
• Fire Resistance: N/A
• Certifications: UL 294

Finishes:

• BL – Black
• WT – White

Attributes

Alternate Codes: 900-650WT-US, 900650WTUS

Category: Access Control, Wireless
