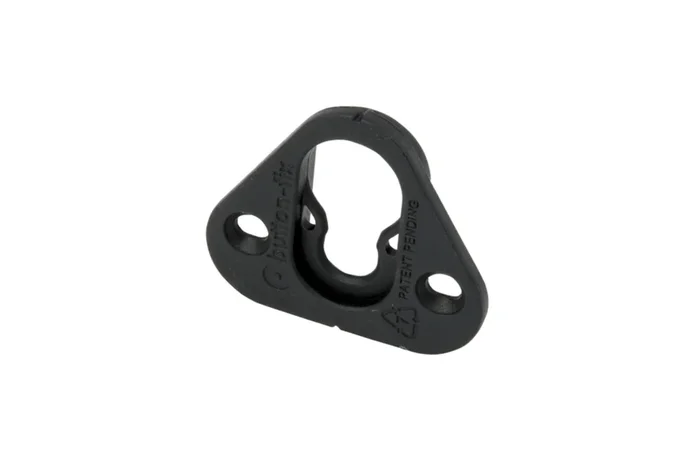

Panel Connector, Button-fix Type 1 Fix by Hafele

Description

Hafele 262.94.000 Button-Fix Panel Connector Type 1 Installation Guide

Hafele 262.94.000 Panel Connector, Button-fix Type 1 Fix is designed for connecting parallel panels with a focus on strength and security. This innovative connector provides a reliable solution for applications requiring robust panel alignment. The button-fix™ mechanism allows for straightforward installation; simply engage the buttons and slide the panel down by 15 mm until you hear a reassuring ‘click’.One of the standout features of this connector is its versatility. It can be configured not only vertically but also sideways, making it adaptable to various project needs. When surface mounted, an 8 mm gap is created between the two attaching panels, allowing for a clean and professional finish. For a tighter fit, the connector can be rebated, reducing the gap to just 3 mm, which is particularly beneficial in applications where aesthetics are crucial. This panel connector ships via UPS, ensuring timely delivery for your projects. It is specifically designed for use with special buttons to connect panels in parallel, making it an essential component for architects and builders looking to enhance structural integrity without sacrificing design. Trust Hafele’s expertise in furniture fittings and architectural hardware to provide reliable solutions for your installation needs.

Panel Connector, Button-fix Type 1 Fix

for parallel panels, Type 1 fix

Connects parallel panels and is ideal for applications where strength and security is paramount Engage the buttons in the connector and slide the panel down by 15 mm until button-fix™ goes ‘click’, can also be configured sideways When surface mounted an 8 mm gap is created between the two attaching panels Alternatively, you can rebate connector to reduce the gap between the two attaching panels to only 3 mm

Attributes

Area of application: For use with special buttons to connect panels in parallel

Resources

• 3-part Specification – Buttonfix
• Button-fix Type 1
• Button-fix Type 1 Fix vibration test report
• Button-fix Type 1 US Mounting Instructions
• Button-fix Type 1 strength test
• CAD data
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 11.86
• Use Button-fix in a Kitchen Fit-Out
