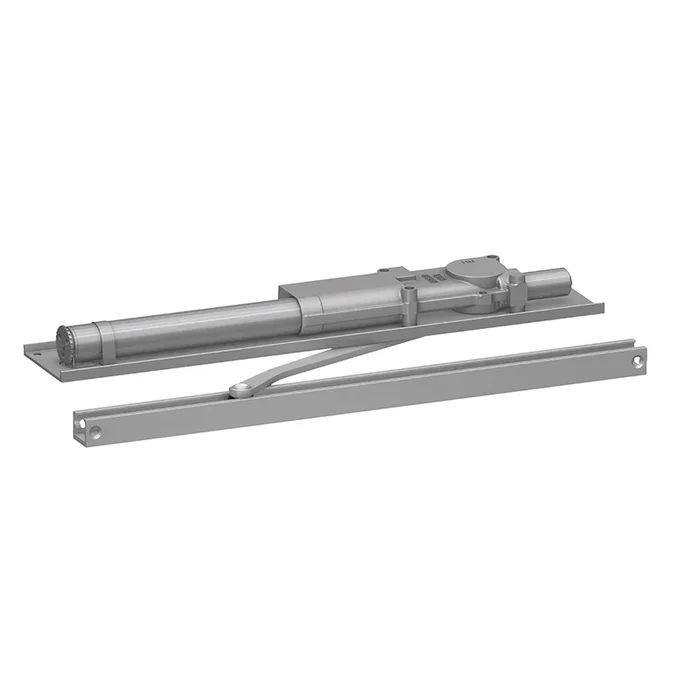

LCN 2032-STD RH 689 Concealed Overhead Door Closer AL
LCN 2032-STD RH 689 Overhead Concealed Closer AL is a Grade 1 standard single lever overhead concealed closer designed for durability and seamless operation. This hydraulic slide track closer fits within a narrow aluminum transom requiring a minimum clearance of 1-3/4 inches, making it an ideal choice for both commercial and residential applications. The single lever arm and roller assembly ensure smooth and quiet door control, enhancing user experience while maintaining aesthetic appeal. With a 180-degree swing and an adjustable backcheck, this closer provides flexibility and safety, adapting to various door movements. The size 2 closer is specifically engineered for interior doors up to 4’6″ and exterior doors up to 3’6″, proving its versatility in different settings. This model is right-handed and features a sleek aluminum painted finish in a matte silver (689/US28) that complements any decor. Moreover, the LCN 2032 closer meets ADA requirements, ensuring accessibility for all. It comes with a 15-year limited warranty, reflecting LCN’s commitment to quality and reliability. The closer is shipped with all necessary installation hardware, making setup straightforward and efficient. Choose the LCN 2032 for a robust, discreet solution to your door control needs.
Overhead Concealed Closer AL
Grade 1 Standard Single Lever Overhead Concealed Closer, Hydraulic Slide Track In Header Mounting, Slide Track Arm, 180 Deg. Swing, Adjustable Backcheck, Size 2, Aluminum Painted Finish, Right-Handed
The 2030 Series PACER is a Heavy Duty Concealed Door Closer Designed to Fit in a Narrow Aluminum Transom with a Minimum of 1-3/4″ Clearance. The Single Lever Arm and Roller Assembly Provide Smooth, Quiet Door Control.
The LCN 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4″ aluminum transom.
The 2030 Series features a single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.
- Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
- Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
- Handed for right or left swinging doors
- Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on arm, fasteners and finish plate
Attributes
Manufacturer surcharge: 4.5%
Arm Type: Slide Track Arm, Low Profile
Baa Qualified: Yes
Base Material: Varies
Closer Size: 2
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Degree Swing: 180 Deg.
Finish: 689/US28
Finish Family: Matte Silver
Grade: Grade 1
Handing: Right-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 15 Years
Mounting Group: Hydraulic
Mounting Location: Header
Mounting Style: Slide Track
Pack Qty: 1
Series: 2030 Series Concealed Closers
Ship Weight: 14 lbs.
Subtype: Concealed-in-Door Closers
Type: Concealed Overhead
Unit of Measure: Each
Resources
- 2030 Series Concealed Closers Cut Sheet
- LCN 2030 Series Installation Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- LCN Concealed Closer Series Product Guide
- LCN Concealed Closers Catalog
- Overhead Concealed Closer Cross-Reference Sheet
- Von Duprin Finishes Chart
