Overhead Concealed Closer AL by LCN – Efficient Door Control Solutions

Description

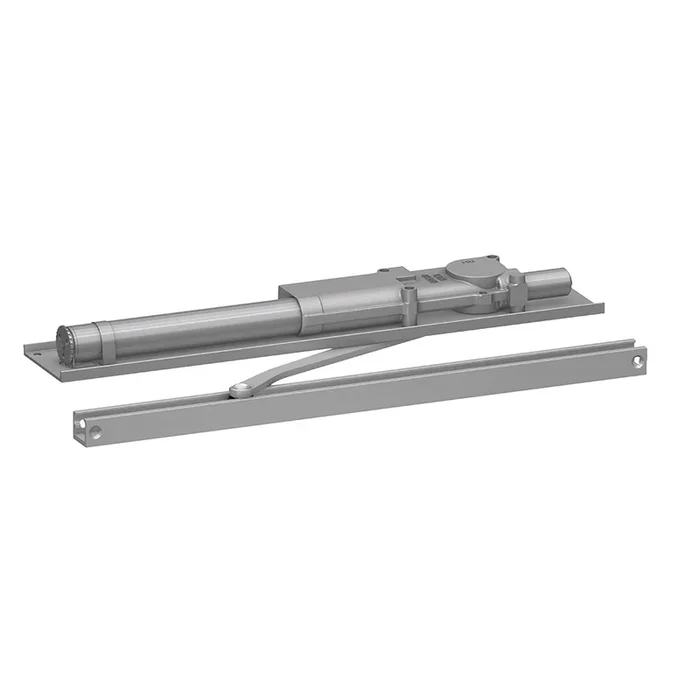

LCN 2034-BUMPER RH 689 Concealed Overhead Door Closer AL

LCN 2034-BUMPER RH 689 Overhead Concealed Closer AL offers a robust solution for commercial applications, featuring a Grade 1 standard single lever overhead concealed closer that combines durability with sleek aesthetics. Designed specifically for narrow aluminum transoms with a minimum clearance of 1-3/4 inches, this hydraulic slide track mounting system ensures smooth and quiet door operation. The LCN 2034 model includes a slide track arm with a bumper and accommodates a generous 180-degree swing, making it ideal for high-traffic areas. With an adjustable backcheck, users can customize the closing speed, enhancing safety and accessibility, as it meets ADA requirements. The closer is finished in a matte silver (689/US28), adding a modern touch to any door setup. This heavy-duty closer supports interior doors up to 4’6″ and exterior doors up to 3’6″, ensuring versatility across various applications. The package includes a standard arm, track, and mounting hardware, simplifying installation. Additionally, the LCN 2034 is backed by a 15-year limited warranty, ensuring long-term reliability. Choose this concealed closer for an effective blend of functionality and style in your next project.

Overhead Concealed Closer AL

Grade 1 Standard Single Lever Overhead Concealed Closer, Hydraulic Slide Track In Header Mounting, Slide Track Arm with Bumper, 180 Deg. Swing, Adjustable Backcheck, Size 4, Aluminum Painted Finish, Right-Handed

The 2030 Series PACER is a Heavy Duty Concealed Door Closer Designed to Fit in a Narrow Aluminum Transom with a Minimum of 1-3/4″ Clearance. The Single Lever Arm and Roller Assembly Provide Smooth, Quiet Door Control.

The LCN 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4″ aluminum transom.

The 2030 Series features a single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

• Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
• Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
• Handed for right or left swinging doors
• Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on arm, fasteners and finish plate

Attributes

Manufacturer surcharge: 4.5%

Arm Type: Slide Track Arm, Low Profile with Bumper

Baa Qualified: Yes

Base Material: Varies

Closer Size: 4

Cold Weather Fluid: Yes

Commercial Residential: Commercial

Degree Swing: 180 Deg.

Finish: 689/US28

Finish Family: Matte Silver

Grade: Grade 1

Handing: Right-Handed

Hold Open: No

Installation: Commercial

Limited Warranty: 15 Years

Mounting Group: Hydraulic

Mounting Location: Header

Mounting Style: Slide Track

Pack Qty: 1

Series: 2030 Series Concealed Closers

Ship Weight: 14 lbs.

Subtype: Concealed-in-Door Closers

Type: Concealed Overhead

Unit of Measure: Each

Resources

• 2030 Series Concealed Closers Cut Sheet
• LCN 2030 Series Installation Guide
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• LCN Concealed Closer Series Product Guide
• LCN Concealed Closers Catalog
• Overhead Concealed Closer Cross-Reference Sheet
• Von Duprin Finishes Chart
