Description

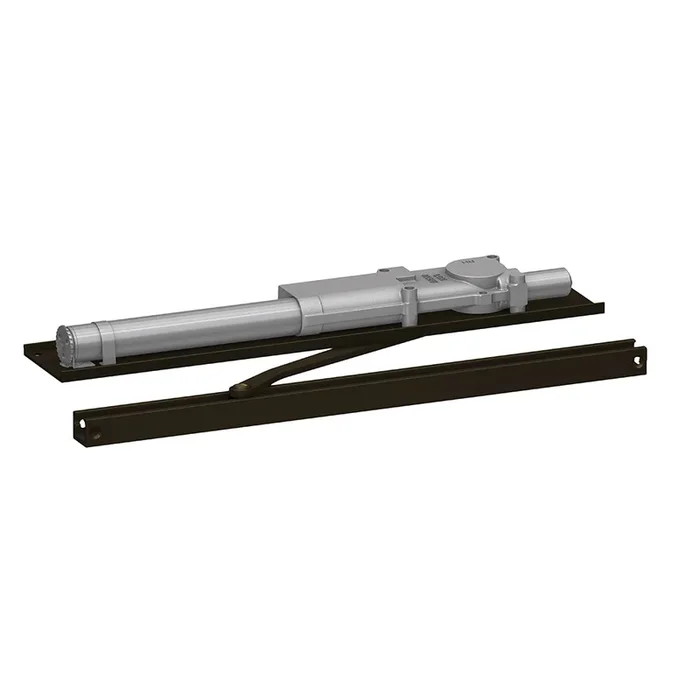

LCN 2034-STD LH 695 Concealed Overhead Closer DKBRZ
LCN 2034-STD LH 695 Overhead Conceal Closer DKBRZ offers a robust solution for commercial applications with its Grade 1 standard single lever design. This hydraulic slide track closer is engineered for header mounting, accommodating a 180-degree swing, and features an adjustable backcheck for enhanced door control. Designed specifically for left-handed installations, the LCN 2034 is crafted to fit in narrow aluminum transoms with a minimum clearance of 1-3/4 inches. The closer utilizes a single lever arm and roller assembly that ensures smooth and quiet operation, making it ideal for high-traffic areas. It is suited for interior doors up to 4’6″ and exterior doors up to 3’6″, meeting ADA requirements for accessibility. The dark bronze painted finish not only provides an attractive aesthetic but also adds durability. Included with each unit are a standard arm, standard track, mounting/finish plate, and a comprehensive screw pack for easy installation. The LCN 2034 closer also allows for custom powder coat finishes, enabling it to meet unique architectural needs. With a limited 15-year warranty, this reliable door closer is a smart investment for any commercial setting.
Overhead Conceal Closer DKBRZ
Grade 1 Standard Single Lever Overhead Concealed Closer, Hydraulic Slide Track In Header Mounting, Slide Track Arm, 180 Deg. Swing, Adjustable Backcheck, Size 4, Dark Bronze Painted Finish, Left-Handed
The 2030 Series PACER is a Heavy Duty Concealed Door Closer Designed to Fit in a Narrow Aluminum Transom with a Minimum of 1-3/4″ Clearance. The Single Lever Arm and Roller Assembly Provide Smooth, Quiet Door Control.
The LCN 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4″ aluminum transom.
The 2030 Series features a single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.
- Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
- Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
- Handed for right or left swinging doors
- Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on arm, fasteners and finish plate
Attributes
Manufacturer surcharge: 4.5%
Arm Type: Slide Track Arm, Low Profile
Baa Qualified: Yes
Base Material: Varies
Closer Size: 4
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Degree Swing: 180 Deg.
Finish: 695
Finish Family: Dark Bronze
Grade: Grade 1
Handing: Left-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 15 Years
Mounting Group: Hydraulic
Mounting Location: Header
Mounting Style: Slide Track
Pack Qty: 1
Series: 2030 Series Concealed Closers
Ship Weight: 14 lbs.
Subtype: Concealed-in-Door Closers
Type: Concealed Overhead
Unit of Measure: Each
Resources
- 2030 Series Concealed Closers Cut Sheet
- LCN 2030 Series Installation Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- LCN Concealed Closer Series Product Guide
- LCN Concealed Closers Catalog
- Overhead Concealed Closer Cross-Reference Sheet
- Von Duprin Finishes Chart
