Description

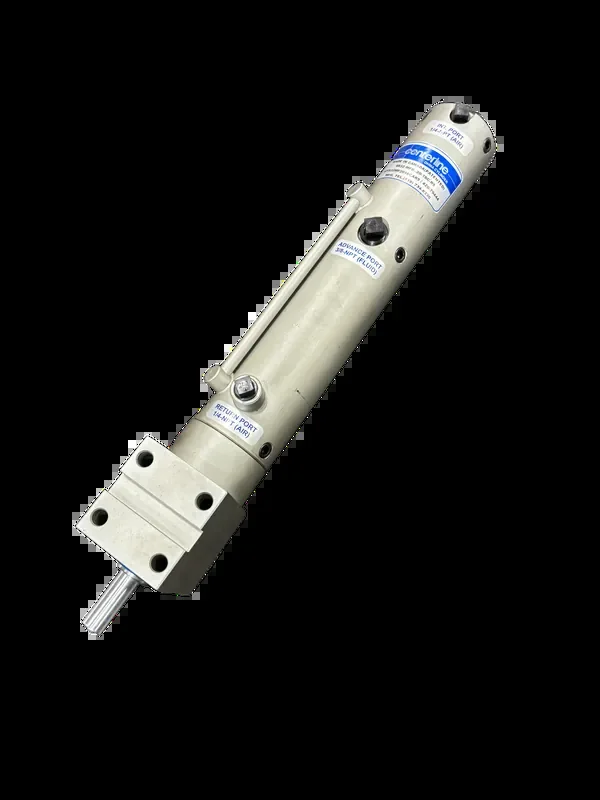

OHMA™ Weld Cylinders

The OHMA™ Air Over Oil Weld Cylinder operates using an “air over oil” intensification principle to produce non-shock welding force. This method of operation allows the cylinder to remain compact while providing numerous advantages to resistance welding applications:

• Low impact (non-shock) advance to the workpiece for minimal electrode mushrooming and to help maintain tip alignment
• The ability to produce a wide range of forces (e.g. a 2″ bore OHMA™ cylinder can produce from 600 to 5000 lbs. of tip force using between 20 and 100 psi air pressure)
• Simple construction and operation to minimize downtime
• Ability to function in any position
• Compact construction to minimize air consumption
• Small bore size to enable multiple cylinders to perform applications with close weld spacing

The standard OHMA™ Air Over Oil Weld Cylinders are supplied in the following range of sizes and specifications:
