Norton Low Energy Operator – Reliable Door Operator for Efficient Accessibility

Description

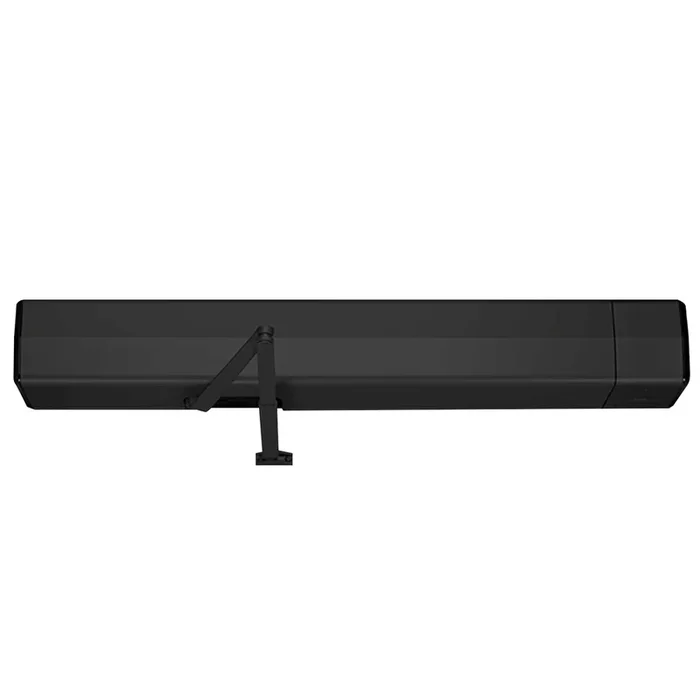

Norton 6021DMY BSP Low Energy Door Operator

Norton 6021DMY BSP Low Energy Operator, Dummy is a robust electrohydraulic door operator tailored for high-traffic environments. This surface-mounted unit boasts a sleek black suede powder coat finish, designed for regular push-side mounting and accommodating doors up to 36 inches wide with a 110-degree swing. Engineered for both reliability and ease of use, the 6000 Series operator features built-in intelligence to enhance user safety and door control. Its two-piece sub-assembly ensures straightforward installation, complemented by an LCD screen that provides clear readouts of operating settings. The operator can be activated manually or through wall switches and RF devices, making it versatile for various applications, including hospitals, office buildings, and government facilities. Key functionalities include a “Push and Go” selector for automatic full opening, obstruction detection during both opening and closing cycles, and adjustable delays for motor startup and hold open features. Additionally, the operator operates as a mechanical surface closer when power is off, ensuring reliable door operation. With a maximum door weight capacity of 250 lbs, the Norton 6021DMY delivers exceptional performance and durability, backed by a two-year limited warranty.

Low Energy Operator, Dummy

Low Energy Surface Mounted Electrohydraulic Dummy Unit Door Operator, Regular, Push Side Mounted, Top Jamb, Up to 36″ Door, Up to 110 Deg. Swing, Black Suede Powder Coat Finish

The 6000 Series low energy operator is a heavy-duty unit designed for rigorous, high-use applications. Built-in intelligence enables the operator to safeguard users while providing better door control. Simple installation and adjustment features combined with the unit´s high level of versatility allows for seamless integration with a multitude of facilities and systems.

The 6000 Series combines intelligence, reliability and superior control in one package.

Designed for moderate to high traffic applications, this operator has a two-piece sub-assembly for easy installation and LCD screen for clear and accurate read-out of operating settings. Available for push or pull side mounting, the 6000 Series can be operated manually or activated via wall switches or radio frequency devices. This reliable unit ensures consistent opening and closing based on dual mode, electrohydraulic technology and is ideal for hospitals, office buildings, sports arenas or government facilities.

Functions:

• Push and Go selector
  • As the door is manually opened, the operator “senses” movement and opens door to the full-open position
• Open/Close obstruction detection
  • Open: Door closes if it hits an obstruction while opening
  • Close: Door re-opens (once) if it hits an obstruction while closing – if the door hits the obstruction again, the door will rest against the obstruction until it is removed
• Motor startup delay adjustment
  • Delays operator opening
• Vestibule delay adjustment
• Hold open delay adjustment
• Single Pole Double Throw (SPDT) relay output
  • SPDT relay output time adjustment
  • SPDT alarm output
• Blow open for smoke ventilation
• Presence detector input
• Selector mode switch
  • Off – Disables signal inputs except blow open
  • On – Activates signal inputs
  • Infinite Hold Open – Door will hold open at set position until power is turned off

Features:

• Push or pull side mounting
• Non-handed
• 1.3A onboard power supply
• Activated by push button, handsfree and RF devices
• Infinite hold open
• Maximum door size 4’0″ x 8’0″, 250 lbs
• Push and Go opens door to full-open position upon manual activation
• Obstruction Detection on both open and close cycle
• Operates as a mechanical surface closer when power is off
• On board electronics collect usage and cycle count data to facilitate preventative maintenance/diagnostics
• 2 year limited warranty

Attributes

Accessible: Yes

Ada Compliance: Yes

Arm Type: Regular Arm

Baa Qualified: Yes

Back Check: Adjustable

Commercial Residential: Commercial

Country of origin: USA

Cover: Full

Degree Hold Open: Adjustable

Degree Swing: Up to 110 Deg.

Delay: Yes

Door Size: Up to 36″

Door Weight: 254 lbs. Push, 198 lbs. Pull

Drop Plate: Available

Finish: BSP

Finish Family: Black

Hold Open Type: Electric

Installation: Commercial

Limited Warranty: 2 Years

Mounting Group: Electrohydraulic

Mounting Location: Push Side

Mounting Style: Top Jamb

Origin: USA

Pack Height: 4″

Pack Length: 42″

Pack Qty: 1

Pack Volume: 2184 in³

Pack Width: 13″

Reveal Size: 2-3/4″ to 6-7/8″

Series: 6000 Series Operators

Ship Weight: 33 lbs.

Subtype: Door Operators

Type: Surface

Unit of Measure: Each

Voltage: 24V
