Norton 5845xNPB 689 ADA EZ Pro Complete Operator Guide
Norton 5845xNPB 689 ADAEZ Pro Complete Operator is a cutting-edge door operator kit designed for both push and pull side installation, featuring a parallel or regular arm configuration. This compact electromechanical operator is perfect for high-traffic manual opening applications, such as retail stores, banks, and educational facilities, where automatic operation is occasionally needed. One of the standout features of the ADAEZ Pro is its regenerative power system, which harnesses energy from manual openings to charge an onboard battery pack, eliminating the need for external electrical wiring. When used in automatic mode 25% of the time, this system can self-generate enough power to last up to 12 years. The operator can accommodate doors up to 48 inches wide and weighing up to 250 lbs, ensuring versatility for various settings. Compliance with ANSI A156.19 and ADA standards means it meets accessibility requirements without compromising performance. The adjustable opening and closing forces, along with a robust clutch mechanism, ensure smooth operation. Additionally, its weather-resistant push button transmitters are designed for durability. With a two-year warranty and an environmental product declaration certification, the Norton ADAEZ Pro Complete Operator is an eco-friendly choice that delivers reliability and efficiency.

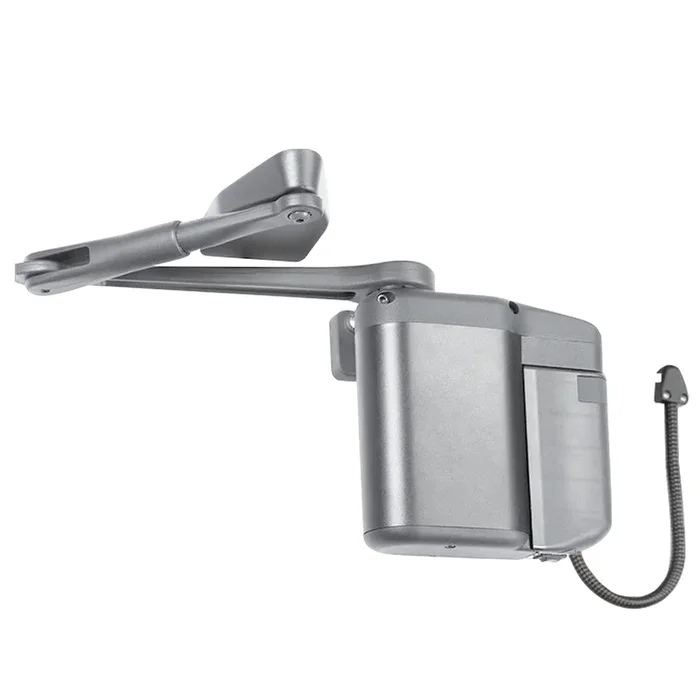

ADAEZ Pro Complete Operator
ADAEZ PRO COMPLETE Door Operator Kit, Push or Pull Side, (Parallel or Regular Arm Door Operator, ADA1015P Hardwire Kit, 2 Narrow Style Push Buttons), Aluminum Finish
As one of the world’s only regenerative power door operators, Norton’s ADAEZ Series is certified by GreenCircle to reduce energy consumption by as much as 100 percent versus other comparable operators. Available in wireless and plug-in versions and able to fit in the tightest of spaces, the 5800 ADAEZ is simple to install and use.
The 5800 Series ADAEZ PRO is a compact electromechanical door operator that is simple to install and use.
This heavy-duty, low energy operator is intended for high traffic manual opening applications that occasionally require automatic operation like retail outlets, banks, schools or universities. A Regenerative Power System charges an onboard battery pack that eliminates the need to run electrical wire to the unit. When used in automatic mode 25% of the time or less, the 5800 Series ADAEZ PRO will self-generate enough power to charge the battery pack for up to 12 years.
- Complies with requirements of ANSI A156.19.
- Adjustable opening and closing forces that meet the provisions of ANSI 117.1 and the Americans with Disabilities Act.
- Regenerative drive system which charges the on-board battery pack when operator is opened manually and which requires no external electrical power.
- Determines door size and weight and automatically tune controller to operate within ANSI 156.19 and 117.1 standards. Also has the following adjustable functions:
- Opening/Closing Speed.
- Hold-open Time.
- Close Check.
- Opening/Closing Force.
- On-board diagnostics whichcontinually maintain control of door speed in wind or abusive environment condition.
- When operated manually, utilizes a clutch mechanism that disengages the motor gearbox assembly upon opening, then re-engages during the closing cycle to control spring force for even and smooth operation throughout the entire opening and closing cycle.
- Continues closing door within ANSI A156.19 and 117.1 requirements without any external power supplied. Upon meeting an obstruction during the opening cycle the door shall remain under power for two seconds and then close under spring force; if the door meets and obstruction will closing, the door will maintain a closing force of 8 lbs or less.
- Capable of operating doors up to 48” wide, weighing up to 250 lbs, and successfully tested for 1,000,000, automatic cycles.
- Operates in climates with temperatures above -40° F and has a two year warranty.
- Two stainless steel, 1-3/4” x 4-3/4” wireless, jamb mounted, push button transmitters with required signage. Locate push buttons as directed by architect and within ANSI A156.19 and 117.1 guidelines.
- Utilizes a triangular hardened steel output shaft to connect door arm with a two piece tapered coupling for superior slip resistance.
- Push button transmitter with circuit boards that have been specially coated to resist moisture and humidity making the electronics weather resistant.
- Integral heavy duty cast aluminum shock absorbing arm, which when fully extended is in full tension eliminating the need for an auxiliary door stop.
- Three architecturally finished dress covers and black powder coated frame, arms and mounting brackets.
- Environmental Product Declaration (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.19
Arm Type: Double Lever Arm, and Parallel Arm
Back Check: None
Commercial Residential: Commercial
Cover: Special
Degree Hold Open: 95 Deg.
Degree Swing: 95 Deg.
Delay: Yes
Door Size: Up to 48″
Door Weight: 254 lbs. Push, 198 lbs. Pull
Finish: 689/US28
Finish Family: Matte Silver
Fire Rated: 90 Min
Fire Rating: 90 Min
Grade: Grade 1
Hold Open: Yes
Hold Open Type: Electric
Installation: Commercial
Limited Warranty: 2 Years
Mounting Group: Reduced Power
Mounting Location: Push or Pull Side
Mounting Style: Regular or Parallel Arm
Pack Height: 10″
Pack Length: 12″
Pack Qty: 1
Pack Volume: 1440 in³
Pack Width: 12″
Physically Handicapp: Yes
Series: 5800 ADAEZ Pro
Ship Weight: 20 lbs.
Subtype: Door Operators
Type: Surface
Ul Listing: UL10c
Unit of Measure: Each
Upc: 49306784658
Voltage: 24V
