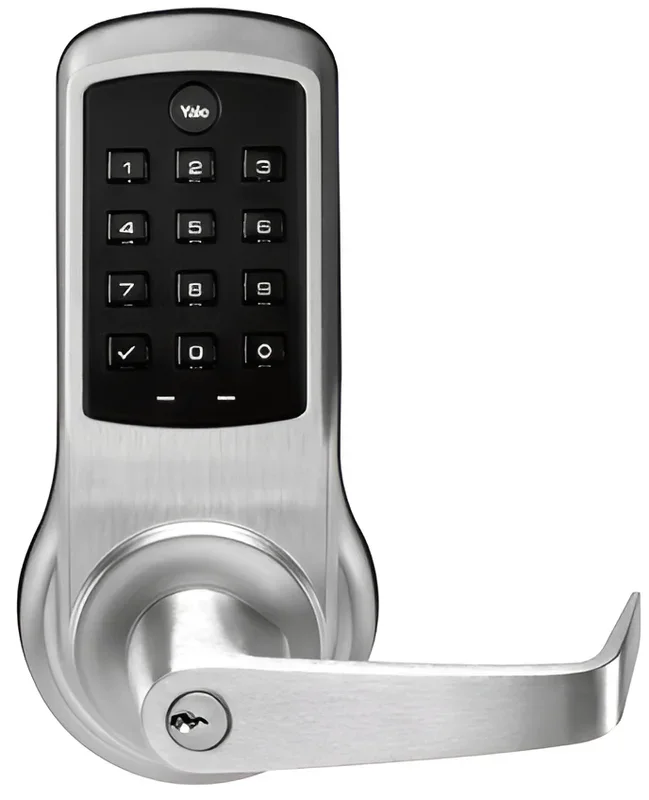

nexTouch Pushbutton Keypad Bored Lock – Augusta Lever – Satin Chrome

Description

Accentra AU-NTB613-NR-2803-626 nexTouch Pushbutton Keypad Lock, Augusta Lever, Schlage C Keyway, Satin Chrome

Accentura nexTouch combines modern aesthetics with advanced access control technology, making it an exceptional choice for a variety of facilities. Certified to ANSI/BHMA Grade 1 standards, this lock offers robust security backed by over 170 years of Accentra’s trusted expertise. With its modular technology, users can seamlessly upgrade to data-on-card capabilities, ensuring long-term value. The nexTouch is available with either a capacitive touchscreen or a pushbutton keypad, catering to tactile preferences and ADA compliance. It supports up to 500 user codes in keypad-only configurations, while a 9V battery backup prevents lockouts, providing peace of mind even during power failures. Designed for versatility, the lock is non-handed and field-reversible, accommodating doors with a thickness ranging from 1 3/8″ to 1 3/4″. Features such as a privacy mode, a deadlocking latchbolt, and a selection of four finishes and three lever designs enhance its appeal. Whether you choose the NTB613 for single cylinder functionality or the NTB633 for a pushbutton option without cylinder override, the nexTouch is engineered for easy installation and user-friendly operation. Enjoy a 3-year limited warranty on mechanical and electrical components, ensuring reliable performance for years to come.

nexTouch Pushbutton Keypad Bored Lock, Augusta Lever, No Radio – Standalone Only, Schlage C Keyway, Grade 1, Weather Resistant, 626/US26D Satin Chrome Yale is Now Accentra

Notice: The info below is not item specific.

nexTouch combines a modern look and innovative access control technology with an array of bold new features, offering an attractive access control solution to a range of facilities. With a heavy-duty design and ANSI/BHMA grade 1 certification, nexTouch provides durable and reliable security from a brand trusted for over 170 years.

Features:

• Modular technology allows users to upgrade to data-on-card
• Capacitive touchscreen or pushbutton keypad available, for tactile environments and ADA compliance
• Privacy mode enabled by a button push
• Up to 500 user codes in keypad only operation
• 9V battery power backup prevents lockout even if the batteries fail
• Available in four finishes and three lever designs
• A certified Integrator is required to configure this product with ACCENTRA
• Non-handed, field reversible
• Engineered to provide a comprehensive, easy-to-use access control solution to protect your facility and personnel
• Unique and versatile design enables upgrade of the lock’s technology when needed
• Reduces investment and maintenance costs
• Windstorm: Certified (refer to local codes)
• 3 year limited warranty on mechanical and electrical components; one year limited warranty on the finish

Specifications:

• ANSI/BHMA Series: Series 4000
• Backset Depth (Standard): 2 3/4″
• Cylinder Format: Large format, small format
• Handing: Non-handed, field reversible
• Latchbolt Throw: 1/2″
• Maximum Door Thickness: 1 3/4″
• Minimum Door Thickness: 1 3/8″

Non-Cylinder Functions:

• NTB633: Pushbutton w/o Cylinder Override
• For doors that do not require mechanical key override.
• Latchbolt retracted by lever outside with valid pin code, or by operating lever inside.
• Inside lever always active.
• Deadlocking latchbolt.
• NTB643: Touchscreen w/o Cylinder Override
• For doors that do not require mechanical key override.
• Latchbolt retracted by lever outside with valid pin code, or by operating lever inside.
• Inside lever always active.
• Deadlocking latchbolt.

Single Cylinder Functions:

• NTB613: Pushbutton w/Cylinder Override
• For doors that require mechanical key override.
• Latchbolt retracted by lever outside with valid pin code; by use of mechanical key, or by operating lever inside.
• Inside lever always active.
• Deadlocking latchbolt.
• NTB623: Touchscreen w/Cylinder Override
• For doors that require mechanical key override.
• Latchbolt retracted by lever outside with valid pin code; by use of mechanical key, or by operating lever inside.
• Inside lever always active.
• Deadlocking latchbolt.

Levers:

• AU: Augusta
• MO: Monroe
• PB: Pacific Beach

Finishes:

• 605 – Bright brass
• 613E – Dark Oxidized satin bronze
• 626 – Satin chrome plated
• BSP – Black suede powder coat

Attributes

Alternate Codes: AU-NTB610-NR-2802-626, AUNTB610NR2802626, AU-NTB610-NR-2803-626, AUNTB610NR2803626, AU-NTB612-NR-2803-626, AUNTB612NR2803626, AU-NTB613-NR-2803-626, AUNTB613NR2803626, YALAU-NTB610-NR-2802-626, YALAU-NTB610-NR-2803-626, YALAU-NTB612-NR-2803-626

Category: Access Control, Commercial Electric Locks, Electric Locks, Lock Sets, Standalone, Standalone Locks, Standalone/Pushbutton Locks
