ND Series Entry Small Format Less Core Rhodes with 13-247 Latch 10-025 Strike Satin Chrome Finish – Schlage Commercial

Description

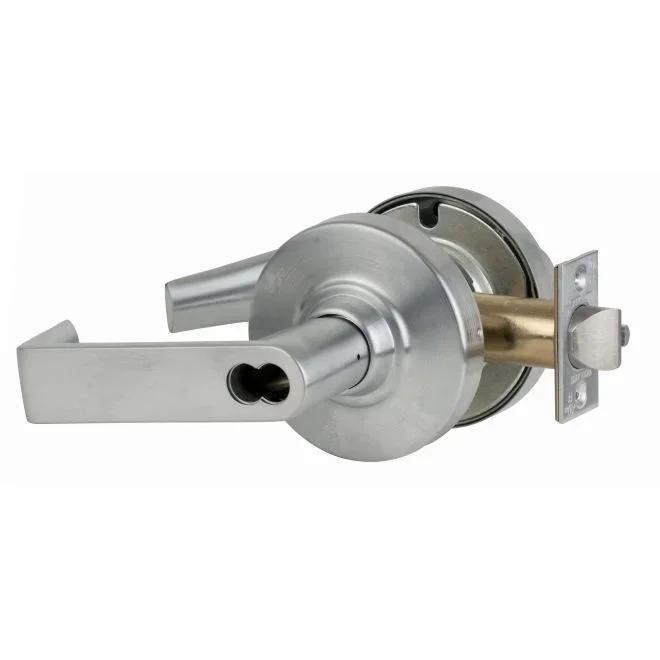

Schlage ND53BRHO626 ND Series Entry Small Format Rhodes, 13-247 Latch, 10-025 Strike, Satin Chrome

Schlage Commercial ND53BRHO626 ND Series Entry Small Format Less Core Rhodes offers a robust locking solution designed for high-traffic commercial environments. This entry lock features a turn/push-button locking mechanism that secures the outside lever until it is manually unlocked by a key or by turning the inside lever, ensuring both security and convenience. Crafted from durable zinc base material and finished in a sleek satin chrome, this lockset not only delivers enhanced aesthetics but also meets the rigorous standards of ANSI/BHMA Certified A156.2-2011. With a door range accommodating 1-5/8″ to 2-1/8″ thickness, it is versatile for various installation scenarios. The commercial grade 1 construction, coupled with UL listing for 3-hour fire doors, ensures superior protection and compliance with safety regulations. The Rhodes lever design, complemented by a 3-7/16″ rose and 4-9/16″ lever, adds an elegant touch to any entrance. The included 13-247 latch and 10-025 strike, along with a 2-3/4″ backset, provide reliable functionality. Backed by a limited 10-year mechanical and 3-year electro-mechanical warranty, the Schlage ND53BRHO626 stands out as a dependable choice for professionals seeking quality and peace of mind in door security.

ND Series Entry Small Format Less Core Rhodes with 13-247 Latch 10-025 Strike Satin Chrome Finish

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• 1-5/8″ to 2-1/8″ Door Range
• Entrance, Turn/Push-Button Locking, Pushing and Turning Button Locks Outside Lever, Requiring Use of Key Until Button is Manually Unlocked, Pushing Button Locks Outside Lever Until Unlocked By Key or By Turning Inside Lever, Inside Lever is Always Free
• Commercial Grade 1
• ANSI/BHMA Certified A156.2-2011
• UL Listed for 3 Hour Fire Door

Attributes

Backset: 2-3/4″ Backset

Category: Mechanical Commercial Locksets

Crossbore Size: 2-1/8″ Bore with Two 5/16″ Post Holes

Design: Rhodes

Dimension: 3-7/16″ Rose with 4-9/16″ Lever and 2-15/16″ Projection

Door Range: 1-5/8″ to 2-1/8″

Door Thickness: 1-5/8″ to 2-1/8″

Finish: Satin Chrome

Finish Code: 626

Function: Entry

Handing: Reversible

Hazardous Material: NO

Latch Faceplate Dimension: 1-1/8″ x 2-1/4″

Lever Knob Design: Rhodes Lever

Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

Material: Zinc Base

No Of Inners: 1

Order_ Qty: 1

PO date: 2024-09-19

Rose Escutcheon Design: Rhodes Rose

Series: ND Series

Strike: ANSI Strike

Strike Dimension: 4-7/8″ with 1-1/4″ Lip

Subcategory: Cylindrical Locksets

Subtype: Cylindrical Locksets

Type: Mechanical Commercial Locksets

Ul Listing Type: UL Listed for 3 Hour Fire Door

Upc: 043156411429
