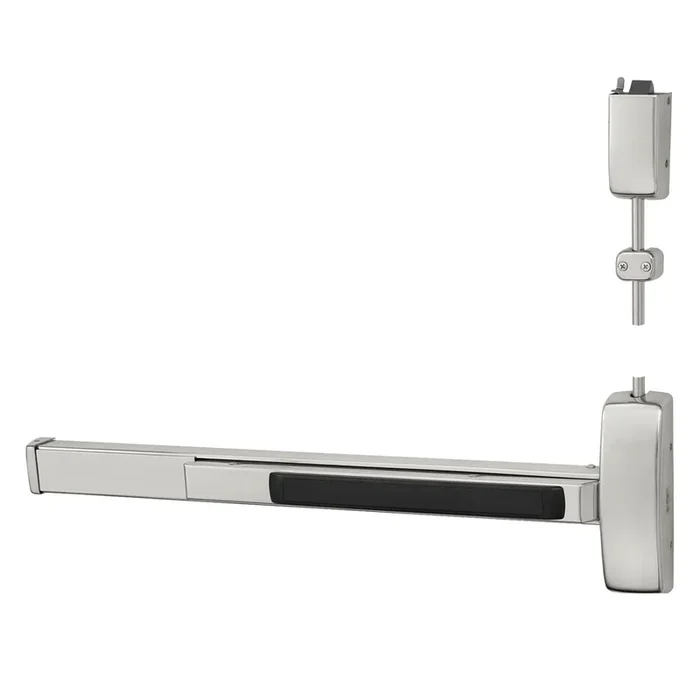

NB-SVR Exit Device, Storeroom – Sargent

Description

Sargent 56-NB8706F ETL RHR 32D NB-SVR Storeroom Exit Device

Sargent 56-NB8706F ETL RHR 32D NB-SVR Exit Device, Storeroom offers a robust security solution designed for high-traffic environments. This Grade 1 Surface Vertical Rod Exit Device features a wide stile pushpad, measuring 36 inches in length, and is suitable for doors up to 84 inches in height. The storeroom function ensures that access is restricted to authorized personnel, providing enhanced security for your premises. Crafted from satin stainless steel, this exit device not only meets but exceeds ANSI/BHMA Grade 1 standards for durability and performance. The electric latch retraction feature adds convenience, allowing for seamless access control without compromising on security. With a right-hand reverse handing, it is designed for easy installation on both wood and metal doors ranging from 1-3/4 inches to 2-1/4 inches thick. The NB8700 Series is renowned for its modular construction and minimal moving parts, resulting in a maintenance-free operation that stands the test of time. Additionally, it includes a lever with escutcheon trim and is compliant with ADA standards, ensuring accessibility for all users. With a five-year limited warranty, you can trust that the Sargent 56-NB8706F will deliver reliable performance for years to come.

NB-SVR Exit Device, Storeroom

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36″ Device, 84″ Door Height, Storeroom Function, L Lever with Escutcheon, Less Bottom Rod, Electric Latch Retraction, Less Dogging, Satin Stainless Steel Finish, Right Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The NB8700 Series is a top latch surface vertical rod exit device.

The NB8700 Series is part ofSargent’s full line of exit devices that provide the best combination ofsimplicity, strength, durability, aesthetics and innovation. This series has both rated and non-rated openings.

• Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ to 2-1/4″ specify thickness and order as a 31- Prefix; 4-1/2″ (114mm) minimum stilewith trim and 3-1/2″ (44mm) minimum stile without trim
• Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door;G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door

Attributes

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI/BHMA A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: 1-1/8″ Mortise

Device Length: 36″

Device Type: Surface Vertical Rod

Dogging Options: Less Dogging

Door Height: 84″

Door Material: Metal or Wood

Door Thickness: 1-3/4″ to 2-1/4″

Door Width: 33″ to 36″

Electric Options: Electric Latch Retraction

Finish: 630/US32D

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Right Hand Reverse

Includes Cylinders: Yes

Includes Trim: Yes

Installation: Commercial

Limited Warranty: 5 Years

Mechanical Function: Storeroom

Mechanical Options: Less Bottom Rod

Minimum Stile Size: 4-1/2″

Origin: USA

Pack Height: 6″

Pack Length: 38″

Pack Qty: 1

Pack Volume: 1710 in³

Pack Width: 7.5″

Physical Appearance: Wide Stile Pushpad

Restrictions: None

Reversible: No

Series: NB8700 Series Surface Vertical Rod Exit Devices

Ship Weight: 18 lbs.

Subtype: Surface Vertical Rod Exit Devices

Top Strike: 646

Trim Design: Lever with Escutcheon

Trim Part No: 706-8 ETL RHRB 26D

Trim Type: Lever

Type: Exit Devices

Ul Listing: UL10C & UL305

Unit of Measure: Each

Resources

• 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
• NB8700 Series Installation Instructions
