Narrow Stile Surface Vertical Rod (SVR) – Detex Corporation

Description

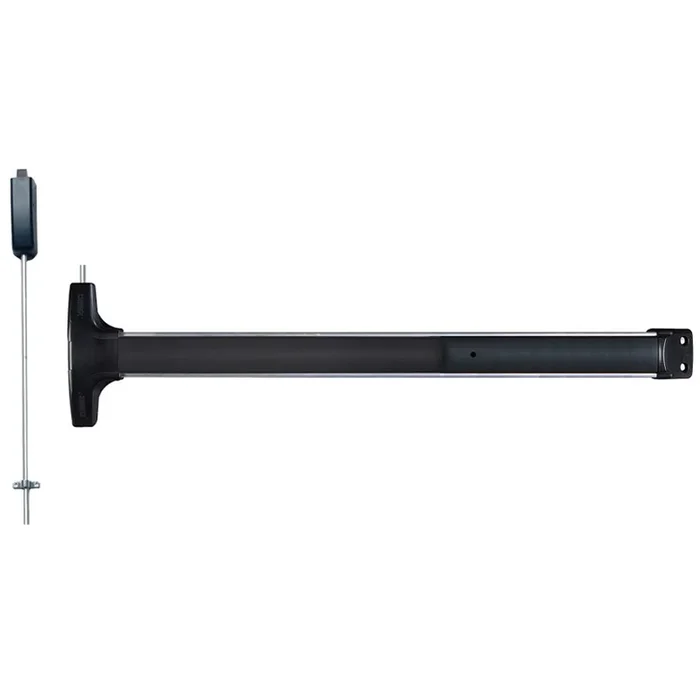

Detex V51NS-628-48 Narrow Stile SVR Exit Device, TRO, 48in, Value Series, Satin Aluminum

Detex Corporation V51NS-628-48 Narrow Stile Surface Vertical Rod (SVR) is a reliable exit device designed to enhance safety and functionality in buildings with narrow stile double doors without a mullion. This top rod-only model features hex dogging, making it an ideal choice for panic and fire exit hardware. Constructed from durable materials, including a stainless steel 3/4″ deadlocking top latch bolt and impact-resistant ABS, the V51NS is built to withstand the rigors of daily use. Installation is quick and straightforward, thanks to the patented mounting plate and strike locator system that eliminates the need for cumbersome templates. Its modular design allows for easy customization with various outside trims, while the angled end cap helps deflect potential damage. The V51NS fits standard door widths of 48 inches and is compatible with aluminum, hollow metal, narrow stile, and wood doors. This exit device is certified to meet various standards, including A156.3 and ANSI, ensuring compliance with safety regulations. With the ability to field-reverse and size the device, as well as options for electrical features like exit alarms and delayed egress, the V51NS-628-48 provides an excellent balance of security, ease of use, and adaptability for any building professional or knowledgeable homeowner.

Narrow Stile Surface Vertical Rod (SVR), TRO (Top Rod Only) – Same as LBR (Less Bottom Rod), Exit Device, Value Series No Trim, Hex Dogging, 48in, 628/US28 Satin Aluminum

Notice: The info below is not item specific.

The V50xNS Series, narrow stile surface vertical rod exit device and V51xNS Series, narrow stile top rod exit device are economical panic and fire exit hardware for use on narrow stile double doors without a mullion. The patented mounting plate and strike locator system ensures the easiest and most accurate installation in an economical panic device.

Benefits:

• Priced to be the best value for durable, attractive panic hardware
• Fast and easy installation saves time and money
• Minimal door prep saves time and money
• Fast and easy installation saves time and money
• Patented mounting plate and strike locator replaces paper templates
• Outside trims are easily changed or rekeyed without removing device from door
• Fits almost any door in any décor
• Angled end cap deflects damage away from device

Features:

• Stainless steel 3/4″ deadlocking top latch bolt
• Ribbed aluminum rail extrusion
• Impact resistant ABS and anodized surfaces
• Handed, field reversible
• Field sizable
• 1/8 turn dogging
• Standard and narrow stile pull trims available
• Modular design accepts a variety of outside trims and functions
• Bottom drop bolt, 5/8″ dia. x 5-5/8″ long secures into strike plate

Mechanical Options:

• V51 – Top Rod Only
• F – 3-Hour Fire Rated
• HD – Hex Dogging (Std.)
• CD – Cylinder Dogging
• LD – Less Dogging
• 36 – Fits 36″ Door Width (Std.)
• 48 – Fits 48″ Door Width
• 84 – Fits 7’ Door Height (Std.)
• 96 – Fits 8’ Door Height
• 120 – Fits 10’ Door Height
• RC – Rod Covers (630 Brushed Stainless)
• BG – Bottom bolt and 12″ ADA ramped cover (630 Brushed Stainless)
• 96 Surface top strike top (Std.)
• 96B Bottom dust proof strike
• Available with 628 base rail extrusion
• Available with 711 base rail extrusion
• FC3 – Flexible 3’ Conduit Kit, mounts to device end cap
• FC10 – Flexible 10’ Conduit Kit, mounts to device end cap
• PT5 – Concealed mortise mount power transfer
• EH8 – Five-knuckle energy transfer hinge – 8 wires

Electrical Options:

• Exit Alarm (EA)
• Exit Alarm with 9 volt Battery (EB)
• Delayed Egress (EE)
• Electric Dogging (ED)
• Electric Latch Retraction with Request to Exit Switch (ER EX)

Accessories:

• SN1 – Sex Nut Kit (2 per package)
• GB# – Glass Bead Kits
• Outside Trim (see Value Series Trim Options)

Technical Information:

• Door Stile – Fits 3-1/2″ stile doors (Std.)
• Door Stile – Fits 2″ narrow stile doors – specify NS
• Fasteners – Machine and Self- Drilling Screws standard

Attributes

Alternate Codes: V51NS-628-48, V51NS62848

Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices

Certifications: A156.3, ADA, ANSI, BHMA, UL Listed

Device Width: 48″

Dogging: HD – Hex Dogging

Door Application: Panic Devices & Exit Alarms

Door Type: Aluminum, Hollow Metal, Narrow Stile, Wood

Exit Device Category: Narrow Stile Surface Vertical Rod Exit

Finish Code: 628

Finish Color: Aluminum, Brushed Aluminum, Satin Aluminum

Function: Exit Only

Grade: Grade 1

Handing: Right Handed Reverse

Manufacturer: Detex Corporation

Series: Value Series V50

Strike Type: Surface Non-Roller Strike

Weatherproof: No
