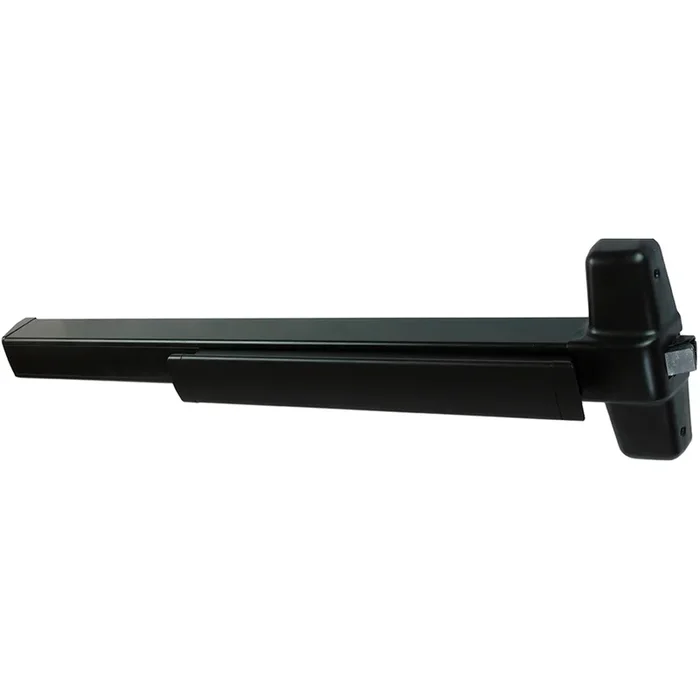

Von Duprin 35A-EO-711-36 Narrow Stile Rim Exit Device, 36in, Hex Dogging, Grade 1, Flat Black
Von Duprin 35A-EO-711-36 Narrow Stile Rim Exit Device is engineered for high-performance security and ease of use in emergency situations. This exit-only device, featuring a sleek flat black finish, measures 36 inches and includes hex key dogging as a standard feature, ensuring reliable operation in institutional environments. Designed with a modular approach, the 35A series allows for future upgrades, making it adaptable to changing technology and facility requirements. Its robust construction is ideal for high-traffic areas such as schools, hospitals, and government buildings, where durability is paramount. The deadlocking latch bolt offers a secure 3/4-inch throw, while the smooth mechanism case provides an aesthetically pleasing design. Installation is straightforward with fasteners and sex bolts included, accommodating both wood and metal doors. The device is compatible with a variety of electrified and mechanical options, including alarm exit kits and quiet electric latch retraction, further enhancing its functionality.With certifications from ANSI and BHMA, the Von Duprin 35A-EO-711-36 meets rigorous safety standards, ensuring peace of mind for building professionals and knowledgeable homeowners alike. This exit device combines style, security, and versatility, making it a top choice for modern architectural applications.
Narrow Stile Rim Exit Device, Exit Only No Trim, 36in, Hex Dogging, Grade 1, 711/315 Flat Black
Notice: The info below is not item specific.
The 33A/35A series is a narrow stile push pad device popular for its vast application coverage. With many field configurable and upgradeable solutions available, it’s easy to enhance the functionality of an existing device. Mechanical and electronic options include quiet electric latch retraction, delayed and controlled egress, concealed vertical cables and security indicators. It’s one way Von Duprin protects its customers’ investments long into the future. The 33A/35A Series devices are narrow stile heavy-duty push pads commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others. Architectural design elements differ slightly between the 33A and the 35A. The 35A series device has a smooth mechanism case, while the 33A series has a grooved mechanism case.
Features:
- Modular design allows ability to upgrade device to keep up with changing technology and meet a facility’s changing needs
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- A variety of field-configurable options and retrofit kits available
Specifications:
- Device Lengths:
- 3′ – 2′ 4″ to 3′ (711mm to 914 mm) Door size
- 4′ – 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device Centerline From Finished Floor:
- 39-13/16″ (1011 mm)
- 39-11/16″ (1008 mm) with mullion
- Center Case Dimensions: 8-3/16″ x 1-9/16″ x 2-13/32″ (208mm x 40mm x 62mm)
- Mechanism Case Dimensions: 2-1/4″ x 2-1/4″ (57mm x 57mm)
- Projection:
- Push bar Neutral – 3-13/16″ (97 mm)
- Push bar Depressed – 3-1/16″ (78 mm)
- Latch Bolt: Deadlocking, 3/4″ (19mm) throw
- Fasteners & sex bolts (SNB):
- Includes 1-3/4″ (44mm) – 2-1/4″ (57mm) wood & metal doors
- #425 SNB furnished standard for end case
- #325 SNB furnished standard for EO (exit only device)
- Electrified Options:
- ALK: Alarm exit kit
- CX: Chexit delayed exit
- ESL: Emergency secure lockdown
- LX: Latch bolt monitor switch
- LX-RX: Request to exit / latch bolt monitoring
- QEL: Quiet electric latch retraction
- RX: Request to exit
- WP-RX: Request to exit, waterproof option
- RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX
- SS: Signal switch
- CON: Allegion Connect
- Mechanical Options:
- AX: Accessible device
- GBK: Glass bead kit
- PN: Pneumatic
- QM: Quiet mechanical
- SEC: Security screws
- SG: Safety glow
- SNB: Sex bolts
- WH: Weep holes
- Dogging Feature: Hex key dogging standard
- Dogging Options:
- CD: Cylinder dogging
- CDSI: Cylinder dogging with security indicator
- HDSI: Hex dogging with security indicator
- LD: Less dogging
- Strikes:
- 1439: Roller, dull black. Ships standard
- 299: Strike, needs to be specified for hollow metal frames
Trim:
- EO: No Outside Trim, Exit Only
- DT: Dummy Trim
- Pull when dogged (not recommendedfor fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim cylinder
- NL-OP: Night Latch, Operational Pull
- Key retracts latchbolt, pull required
- K/L: Lever/Knob
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- L-BE/K-BE: Lever/Knob, Blank Escutcheon
- Always operable (no cylinder)
- TP: Thumbpiece
- Key locks and unlocks
- 1-1/4″ mortise cylinder
- TL-BE: – Turn Lever, Blank Escutcheon
- Blank escutcheon always operable (no cylinder)
- TL: Turn Lever
- Key locks and unlocks (use with DT trim)
- 1-1/4″ mortise cylinder
- TP-BE: Thumbpiece, Blank Escutcheon
- Blank escutcheon always operable (no cylinder, use with DT trim)
- TL-OP: Turn Lever, Optional Pull
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 619 – Satin nickel
- 622/711 – Matte black/matte black, anodized
- 625 – Bright chrome
- 626 – Satin chrome
- 626AM – Satin chrome, antimicrobial
- 628 – Aluminum, anodized
- 630 – Satin stainless steel
- 630AM – Satin stainless, antimicrobial
- 643e – Aged bronze
- 693 – Black, painted (not flat powder)
- 710 – Dark brown, anodized
Attributes
Category: Glass Aluminum Hardware, Narrow Style Panic Devices, Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices
Certifications: ANSI, ANSI A156.6, ANSI/UL 10C, ANSI/UL 305, BHMA
Device Width: 36″
Dogging: HD – Hex Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Rim Exit
Fasteners: Sex Bolts
Finish Code: 711
Finish Color: Flat Black
Function: Exit Only
Grade: Grade 1
Manufacturer: Von Duprin
Series: 33/35
Strike Type: Rim Strike
