Description

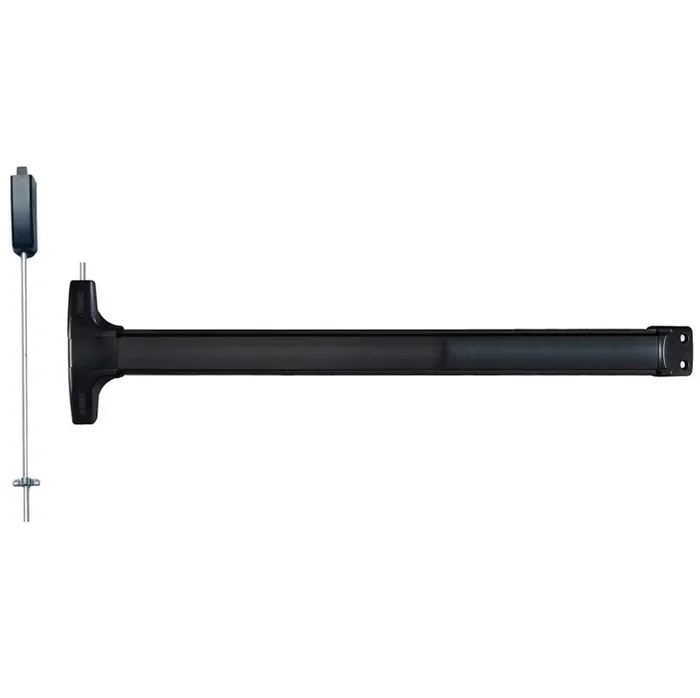

Detex FV51NS-LD-711-36 Narrow Stile Fire Rated Surface Vertical Rod Exit Device, 36in, Anodized Black

Detex Corporation FV51NS-LD-711-36 Narrow Stile Fire Rated Surface Vertical Rod (SVR) is an ideal solution for panic and fire exit hardware on narrow stile double doors without a mullion. This top rod-only exit device combines reliability and efficiency, ensuring compliance with safety standards while providing ease of installation. Crafted with a stainless steel, 3/4″ deadlocking Pullman-type latch bolt, the FV51NS-LD-711-36 offers durability and security. The patented mounting plate and strike locator system simplify the installation process, eliminating the need for cumbersome templates and minimizing door preparation time. Its field-reversible design makes it adaptable to most door configurations, while the angled end cap deflects damage, enhancing longevity. This exit device is not only economical but also aesthetically pleasing, fitting seamlessly into various décors. Designed for 36″ door widths, it meets Grade 1 standards and is UL listed for a fire rating of up to 180 minutes. The modular design allows for compatibility with various outside trims and functions, further enhancing its versatility. Whether for commercial or residential use, the Detex FV51NS-LD-711-36 is a smart choice for those seeking dependable panic hardware without compromising on quality or performance.

Narrow Stile Fire Rated Surface Vertical Rod (SVR), TRO (Top Rod Only) – Same as LBR (Less Bottom Rod), Exit Device, Value Series No Trim, Less Dogging, 36in, 711/DC35 Anodized Aluminum Black

Notice: The info below is not item specific.

The FV50xNS Series, narrow stile surface vertical rod exit device and FV51xNS Series, narrow stile top rod exit device are economical panic and fire exit hardware for use on narrow stile double doors without a mullion. The patented mounting plate and strike locator system ensures the easiest and most accurate installation in an economical panic device.

Benefits:

• Priced to be the best value for durable, attractive panic hardware
• Patented mounting plate and strike locator replaces paper templates
• Minimal door prep saves time and money
• Fast and easy installation saves time and money
• Fits almost any door in any décor
• Outside trims are easily changed or rekeyed without removing device from door
• Angled end cap deflects damage away from device

Features:

• Stainless steel, 3/4″ deadlocking Pullman-type latch bolt
• Ribbed aluminum rail extrusion
• Impact resistant ABS and anodized surfaces
• Handed, field reversible
• Field sizable
• 1/8 turn dogging
• Bottom drop bolt, 5/8″ dia. x 5-5/8″ long secures into strike plate
• Modular design accepts a variety of outside trims and functions
• Standard and narrow stile pull trims available

Mechanical Options:

• V51 – Top Rod Only
• F – 3-Hour Fire Rated
• CD – Cylinder Dogging
• HD – Hex Dogging (Std.)
• LD – Less Dogging
• 36 – Fits 36″ Door Width (Std.)
• 48 – Fits 48″ Door Width
• 84 – Fits 7’ Door Height (Std.)
• 96 – Fits 8’ Door Height
• 120 – Fits 10’ Door Height
• RC – Rod Covers (630 Brushed Stainless)
• BG – Bottom bolt and 12″ ADA ramped cover (630 Brushed Stainless)
• 96 Surface top strike top (Std.)
• 96B Bottom dust proof strike
• Available with 628 base rail extrusion
• Available with 711 base rail extrusion
• FC3 – Flexible 3’ Conduit Kit, mounts to device end cap
• FC10 – Flexible 10’ Conduit Kit, mounts to device end cap
• PT5 – Concealed mortise mount power transfer
• EH8 – Five-knuckle energy transfer hinge – 8 wires

Electrical Options:

• Exit Alarm (EA)
• Electric Battery Alarm (EB)
• Electric Dogging (ED)
• Delayed Egress (EE)
• Electric Latch Retraction with Request to Exit Switch (ER EX)

Accessories:

• SN1 – Sex Nut Fasteners
• GB# – Glass Bead Kits
• Outside Trim

Technical Information:

• Door Stile – Fits 3-1/2″ stile doors (Std.)
• Door Stile – Fits 2″ narrow stile doors – specify NS
• Fasteners – Machine and Self- Drilling Screws standard

Attributes

Alternate Codes: FV51NS-LD-711-36, FV51NSLD71136

Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices

Certifications: A156.3, ADA, ANSI, BHMA, UL Listed, UL Listed 3 Hour

Device Width: 36″

Dogging: LD – Less Dogging

Door Application: Panic Devices & Exit Alarms

Door Type: Aluminum, Hollow Metal, Narrow Stile, Wood

Exit Device Category: Narrow Stile Surface Vertical Rod Exit

Finish Code: 711

Finish Color: Flat Black

Fire Rated: Yes

Fire Rating: 180 min

Function: Exit Only

Grade: Grade 1

Handing: Right Handed Reverse

Manufacturer: Detex Corporation

Series: Value Series V50

Strike Type: Surface Non-Roller Strike

Weatherproof: No
