Description

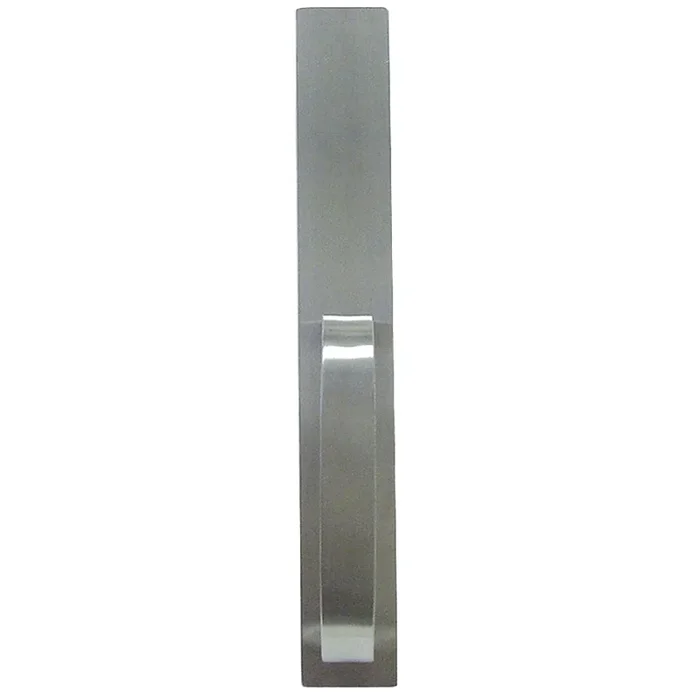

Detex 02CNV630 Narrow Stile Dummy Pull Advantex 62/63 Series, Satin Stainless Steel
Detex Corporation 02CNV630 Narrow Stile Dummy Pull Advantex for 62/63 Series is engineered to provide robust security and functionality for various installations. Constructed from durable satin stainless steel, this heavy-duty trim is designed to withstand the rigors of high-traffic environments, ensuring long-lasting performance. The versatile design of the 02CNV630 allows for easy adjustments since changing functions only requires replacing the outside trim without removing the exit device from the door. This trim is compatible with a range of exit devices, including 40 Series Rim, 50/51 Series Surface Vertical Rods, and 60/61/62/63 Concealed Vertical Rods.With BHMA functions that include exit-only options and dummy trims, this product meets diverse access needs. The trim fits standard door thicknesses of 1-3/4″ to 2-1/4″, making it adaptable for various installations. Available in multiple finishes, including polished brass and brushed stainless steel, it complements any architectural style while enhancing security. Perfect for panic device trims, the Detex 02CNV630 not only elevates the safety of your premises but also offers a professional aesthetic. Choose this reliable and stylish solution to ensure both security and convenience in your building’s access systems.
Narrow Stile Dummy Pull Advantex for 62/63 Series, 630/US32D Satin Stainless Steel
Notice: The info below is not item specific.
Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. Narrow stile trims can be used on 40 Series Rim, 50 / 51 Series Surface Vertical Rods and 60 / 61 / 62 / 63 Concealed Vertical Rods. Detex uses the BHMA functions/s for all trims.
BHMA Function:
- 01 – Exit only, no trim or blank escutcheon
- 02 – Entrance by trim when actuating bar is locked down (dummy trim)
- 03 – Entrance by trim when latch bolt is released by key. Key removable only when locked.
- 08 – Entrance by knob or lever. Key locks or unlocks knob or lever.
- 09 – Entrance by knob or lever only when released by key. Key removable only when locked.
- 10 – Entrance by lever. Inside or outside key locks or unlocks lever.
- 14 – Entrance by trim when latch bolt is released by knob or lever. Always active, no cylinder.
- EU2W – Electric Lock / Unlock, wide escutcheon – Fail Secure or Fail Safe
Technical Information:
- CN Trims are Stainless Steel
- DN and WS Trims are Forged Brass
- KN – Knurling available on all levers
- Door Thickness – Fits standard 1-3/4″ – 2-1/4″ doors
- Narrow stile trim configured for use with BP2 or BP8 (when ordered with 03 function) – Standard for use on 40, 50/51 Series, BP10 or BP12 (when ordered with 03 function) – Standard for use on 60/61, 62/63 Series
- Advantex narrow stile trim also available for use with all Value Series Devices
Finishes:
- 605/US3 – Polished Brass
- 606/US4 – Brushed Brass
- 611/US9 – Polished Bronze
- 612/US10 – Brushed Bronze
- 613/US10B – Oil Rubbed Bronze
- 629/US32 – Polished Stainless Steel
- 630/US32D – Brushed Stainless Steel
Features
- 08 – Entrance by knob or lever. Key locks or unlocks knob or lever.
- EU2W – Electric Lock / Unlock, wide escutcheon – Fail Secure or Fail Safe
- 03 – Entrance by trim when latch bolt is released by key. Key removable only when locked.
- 09 – Entrance by knob or lever only when released by key. Key removable only when locked.
- 02 – Entrance by trim when actuating bar is locked down (dummy trim)
- 10 – Entrance by lever. Inside or outside key locks or unlocks lever.
- 01 – Exit only, no trim or blank escutcheon
- 14 – Entrance by trim when latch bolt is released by knob or lever. Always active, no cylinder.
- 03: Entrance by trim when latch bolt is released by key. Key removable only when locked.
- 09: Entrance by knob or lever only when released by key. Key removable only when locked.
- 10: Entrance by lever. Inside or outside key locks or unlocks lever.
- EU2W: Electric lock/unlock, wide escutcheon – fail secure or fail safe
- 08: Entrance by knob or lever. Key locks or unlocks knob or lever.
- 01: Exit only, no trim or blank escutcheon
- 02: Entrance by trim when actuating bar is locked down (dummy trim)
- 14: Entrance by trim when latch bolt is released by knob or lever. Always active, no cylinder.
Attributes
Alternate Codes: 02CNV630
Category: Panic Devices & Exit Alarms, Panic Device Trims
Compatibility: 62/63 Series Devices
Door Application: Panic Device Trims
Finish Code: 630
Finish Color: Satin Stainless Steel
Function: Dummy Trim, Lever
Handing: Right Handed Reverse
Manufacturer: Detex Corporation
Trim Option: Escutcheon Trim, Narrow Stile Trim
