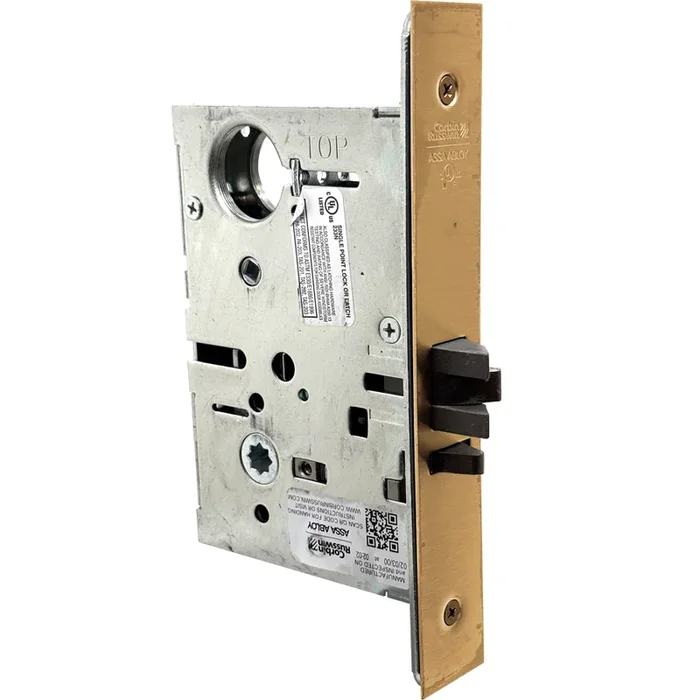

Corbin Russwin ML2054 LL 612 LC Multi-Function Mortise Lock Body, ANSI Strike Plate, Grade 1, Satin Bronze
Corbin Russwin ML2054 LL 612 LC Multi-Function Entry/Office Mortise Lock Body combines robust security with versatile functionality. Designed as part of the ML2000 Series, this ANSI/BHMA Grade 1 lock excels in high-traffic environments where durability and reliability are paramount. Constructed from heavy-gauge steel, it features a patented design that ensures smooth operation and longevity. The ML2054 model includes an auxiliary latch and comes with an ANSI strike plate and armored front, enhancing its security capabilities. It boasts field-reversible handing for easy installation without disassembly, making it suitable for various door applications, including wood and hollow metal. The crisp lever return eliminates sag, providing a polished user experience. This mortise lock is compatible with a wide range of trim options and integrates seamlessly with existing Corbin Russwin key systems, including high-security formats. Its EcoFlex® technology promotes energy efficiency, creating up to 89% savings on electromechanical functions.With a 10-year limited warranty, the ML2054 LL is not just an investment in security but also in peace of mind. Available in a sleek satin bronze finish, this lock is a practical choice for any professional looking to enhance both security and aesthetics in their projects.
Multi-Function Entry/Office with Auxiliary Latch Mortise Lock Body, Includes ANSI Strike Plate and Armored Front, Field Reversible Handing, No Trim, Grade 1, 612/US10 Satin Bronze
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4″
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4″
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4″
- Maximum Backset: 2 3/4″
- Maximum Door Thickness: 4″
- Minimum Backset: 2 3/8″
- Minimum Door Thickness: 1 3/8″
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 – Bright Brass
- 606 – Satin Brass
- 611 – Bright Bronze
- 612 – Satin Bronze
- 613 – Dark Oxidized Satin Bronze, Oil Rubbed
- 613E – Dark Oxidized Satin Bronze, Equivalent
- 613L – Dark oxidized satin bronze, clear coated
- 618 – Bright Nickel Plated
- 619 – Satin Nickel Plated
- 619C – Satin nickel plated with MicroShield
- 625 – Bright Chromium Plated
- 626 – Satin Chromium Plated
- 626C – Satin Chromium Plated with MicroShield
- 629 – Bright Stainless Steel
- 630 – Satin Stainless Steel
- 630C – Satin stainless steel with MicroShield
- 722 – Black Oxidized Bronze, Oil Rubbed
- BSP – Black suede powder coated/sprayed
- WSP – White suede powder coated/sprayed
Attributes
Alternate Codes: CORML2054 LL 612 SS118 LC, ML2054 LL 612, ML2054-LL-612, ML2054LL612, ML2054 LL 612 LC, ML2054LL612LC, ML2054 LL 612 SS118 LC, ML2054LL612SS118LC
Category: Lock Sets, Mortise Lock Body, Mortise Locks
Cylinder Type: Less Cylinder
Door Application: Mortise Locks
Finish Code: 612
Finish Color: Satin Bronze, Satin/LT Bronze
Function: Entry, Office
Series: ML2000
Spindle Type: Lever x Lever
