Hafele 403.52.920 Slido R-Aluflex 80A Mullion
Hafele 403.52.920 Mullion for Slido R-Aluflex 80A is designed to enhance the functionality and aesthetic appeal of your sliding door systems. Crafted from high-quality aluminum, this mullion boasts a sleek silver finish, making it an ideal choice for modern interiors. Measuring 2 meters in length (approximately 6 feet 6¾ inches), it effectively supports door panels with thicknesses of 6 mm and 8 mm using a clip-on profile, or 10 mm without compromising on stability. This mullion is engineered to accommodate compensating uneven surfaces in floor and ceiling areas, allowing for adjustments of up to -5/+10 mm. With a robust maximum door weight capacity of 176 lbs, it ensures reliable performance while subdividing door panels effectively, making it suitable for various applications. The dimensions of the mullion include a height of 31 mm and a width of 18.60 mm, providing a sturdy yet unobtrusive support structure. For added convenience, the Hafele mullion can be shipped via UPS, making it easy to incorporate into your projects. Enhance your sliding door system with the Hafele 403.52.920 Mullion, where quality meets functionality in a stylish design.
Mullion for Slido R-Aluflex 80A
For Hafele Slido R-Aluflex 80A, Silver, 2 m Length
Panel thicknesses 6 and 8 mm with clip-on profile or 10 mm without compensating uneven surfaces in floor and ceiling areas up to -5/+10 mm
Attributes
Area of application: For subdividing door panel
Door weight max.: 176 lbs

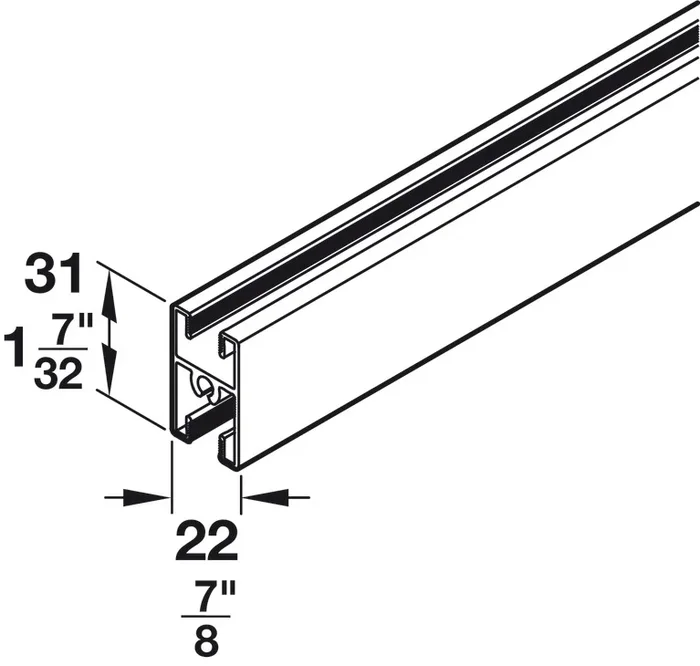

Height: 31.00 mm
Length: 2,000 mm
Length (inch): 6′ 6 3/4″
Material: Aluminum
Width: 18.60 mm
Resources
- Installation instructions
- Slido R-Aluflex 80A Mounting Instructions
- TCH_Architectural_Hardware_ 2022 | Page 1.359
