Mortise Offset Hinge/Handle Set by Hafele

Description

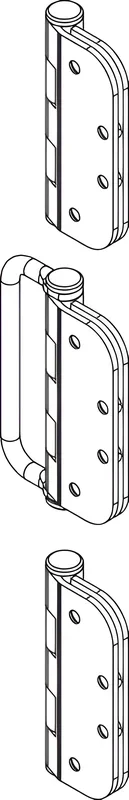

Hafele 943.34.141 Mortise Offset Hinge Handle Set with Instructions

Hafele 943.34.141 Mortise Offset Hinge/Handle Set with Handle is a vital component of the Al Fresco Summit sliding and folding hardware system. Designed for both functionality and style, this set features a sleek satin finish that enhances the aesthetic of any wooden door. This hinge and handle set supports impressive door specifications, accommodating weights up to 220 lbs. (100 kg) and heights reaching 10′ 9 15/16″ (3.3 m). With a maximum width of 39 3/8″ (1.0 m), it is engineered to handle a variety of door sizes, making it versatile for both residential and commercial applications. The construction utilizes 316 marine grade stainless steel, ensuring maximum corrosion resistance and durability, particularly in coastal climates. The mortise hinge design allows for a clean installation, while precision bearings at both the top and bottom reduce rolling resistance, providing smooth operation. The set is suitable for door thicknesses ranging from 1 3/8″ to 2 11/16″ (35 – 68 mm) and can accommodate up to 16 doors (8 left/8 right).For a custom configuration, or to place an order, connect with a Hafele product specialist at 1-888-437-7477. Elevate your door hardware with this robust and elegant solution.

Mortise Offset Hinge/Handle Set with handle

Al Fresco Summit, Satin Finish

The above listed part is a component of the Al Fresco Summit 75/100 slding/folding hardware system. The specifcations of the Al Fresco system are: Door weight: Max. (165 lbs.) 75 kg or (220 lbs.) 100 kg Door height: Max. (10 9 15/16″) 3.3 m Door width:Max. (39 3/8″) 1.0 m Maximum numbers of doors: 16 (8 left/8 right) Door thickness: -Non-mortise: (1 3/8″ – 2 11/16″) 35 – 68 mm -Mortise: (1 3/4″ – 2 11/16″) 44 – 68 mm Full corrosion resistant construction 316 marine grade stainless steel parts for improved strength and maximum corrosion resistance Hardware finishes: Satin stainless, polished stainless, PVD brass, and PVD rustic black Conealed channels enhances appearance Mortise and non-mortise hinges and hangers available Precision bearings top and bottom decrease rolling resistance Ideal for coastal climates
For doors exceeding 2.4 m (96 1/2″), refer to spare hinges, optional jamb pivot and security aligner. 150 kg (330 lbs.) option is available. To collaborate on your custom configuation, receive a quote or place an order, contact our Häfele product specialist at 1-888-437-7477.

Attributes

Color/finish: satin-finish

Door material: Wood

Door processing: With recess

Folding hinge type: Folding hinge

For door height: ≤3,300 mm

For door height (inches): 10′ 9 15/16″

For door thickness: 35 – 68 mm

For door weight: ≤100 kg

For door width: ≤1,000 mm

For door width (inches): 3′ 3 3/8″

For max. panel thickness: Non-mortise: 2 3/4″

For min. panel thickness: Non-mortise: 1 3/8″

Load bearing capacity: 220 lbs.

Material: Stainless steel, quality AISI 316

Resources

• TCH_Architectural_Hardware_ 2022 | Page 1.217
