Description

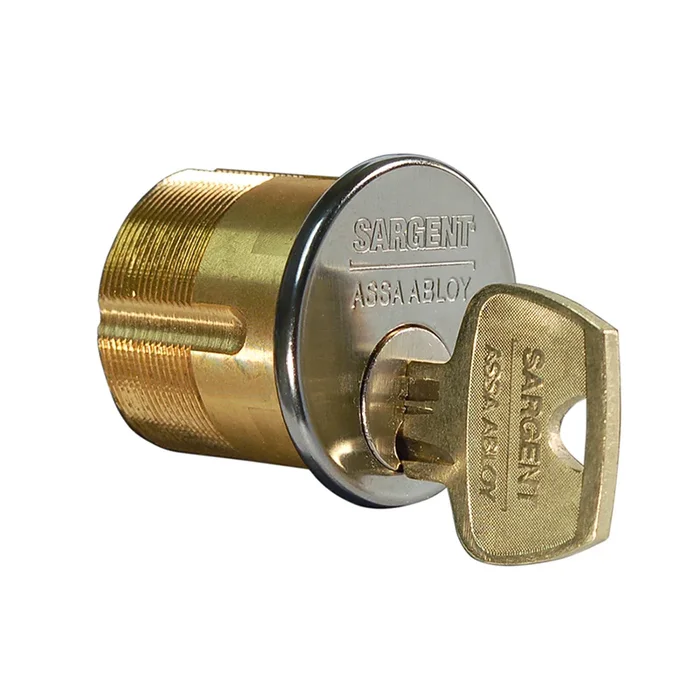

Sargent 41 RA 32D Mortise Cylinder
Sargent mortise cylinders are made from solid brass and have a brass, bronze or stainless steel face cap avaialable in all architechtural finishes. They are furnished standard with number 97 rosette and compression spring. Optional collars and spacers are available and ordered separately. Sargent mortise cylinders are available in lengths ranging from 1-1/8″ through 3″, minimum length for 7-Pin is 1-1/4″. They are provided standard with Sargent offset cam number 13-0664, other cams are available.
- Benefits:
- Flexible: Available in all Sargent cylinder formats.
- Enhanced Security: Features: a factory-master keying system design.
- Customizable: Offered in a wide variety of Finishes:.
- Convenient: Available in mortise; rim; key-in knob and lever; and, large and small format removable core cylinders.
- Certification:
- Cylinders BHMA A156.5 Grade 1 (except hotel Functions:)
- Technical Information:
- Available in cylinder lengths 1-1/8″ to 3″ in 1/8″ increments
- Cylinder: Solid brass, 1-5/32″(29mm) diameter
- Cap: Brass, bronze or stainless steel
- Furnished standard with No.97 rosette and compression spring
- 6 pin standard; for 7 Pin specify (7 pin), size 42 minimum
- No.41 cylinder not available in 7 pin
- Mortise cylinder assemblies that are ordered without hardware are supplied with standard Sargent offset cam 13-0664
- Cylinder Finishes: 3, 4, 9, 10, 10B, 10BE, 10BL, 15, 20D, 32, 32D or BSP
- Plug Finishes: 4 or 15
Attributes
Alternate Codes: 41RA26D, SAR41RA26D
Baa Qualified: Yes
Base Material: Stainless Steel
Cam Number: 13-0664
Cam Type: Sargent, Yale
Category: Cylinders, Key Blanks & Accessories, Lock Components, Etc., Lock Parts, Lock Sets, Mortise Cylinders
Country of Origin: Usa
Country of origin: USA
Cylinder Length: 1-1/8 In.
Cylinder Type: Mortise Cylinder
Door Application: Mortise Cylinders
Finish: 630/US32D
Finish Code: 26D
Finish : Satin Stainless Steel
Keying: Keyed Different
Keys: Cut
Keyway: RA
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Origin: USA
Pack Height: 1.88″
Pack Length: 4.13″
Pack Qty: 1
Pack Volume: 18.37 in³
Pack Width: 2.38″
Pins: 6
Series: Mortise Cylinders
Ship Weight: 0.53 lbs.
Std Keyway: RA
Subtype: Mortise Cylinder
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
