Description

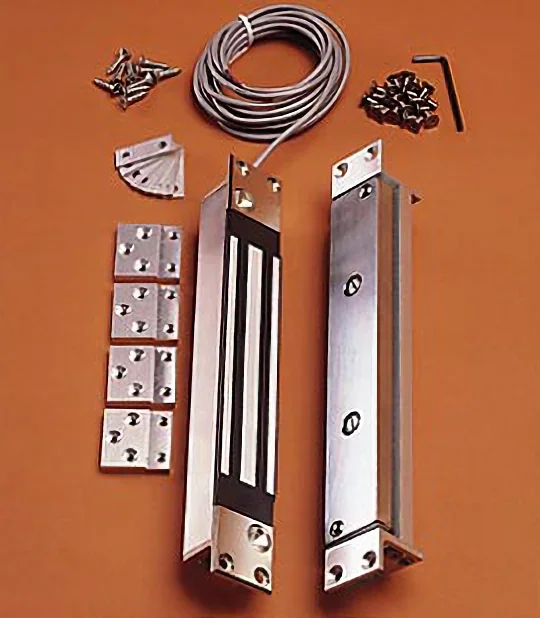

Securitron SAM2-24 Mini 24V DC Shear Magnalock, Satin Stainless Steel Finish
Securitron SAM224 Mini Version 24 Volt DC Shear Magnalock in a satin stainless steel finish delivers exceptional security and reliability for various commercial applications. Designed to operate effortlessly on dual voltage, this magnetic lock can utilize a 12 or 24 Volt power supply, ensuring versatility across different setups while effectively protecting the magnalock itself. Constructed in an ISO9001 certified factory in Phoenix, AZ, the SAM224 showcases outstanding product quality and durability. With a holding force of 600 pounds and collapsing blind nuts that secure the magnalock to the frame, you can trust that your entry points are well-protected, providing peace of mind for building owners and contractors alike. This model is not just robust; it’s also backed by the industry-leading MagnaCare warranty, offering lifetime replacement with no fault, no questions asked. The SAM224 is fire-rated and can be seamlessly integrated with push buttons, readers, or sensors, making it a versatile choice for modern security needs. Its compact dimensions of 1-1/8″ x 7-3/16″ x 1″ and elegant satin stainless steel finish ensure it fits well in any environment. Experience world-class technical support and quality assurance with the Securitron SAM224, a smart choice for reliable access control.
Mini Version 24 Volt DC Shear Magnalock Satin Stainless Steel Finish
As the world’s premier supplier of electric locking systems and access control components, Securitron, an ASSA ABLOY Group company, excels in manufacturing a wide range of products, from electromagnetic locks and accessories, to exit devices, power supplies, digital entry systems and much more. Securitron is known for its continued commitment to excellence in customer service and product quality.
- Instant release circuit – no residual magnetism
- Fully sealed electronics – tamper proof and weatherproof
- Mounted using steel machine screws
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specifications
- Six feet (1.8m) of jacketed, stranded conductor
- Smaller dimensions for difficult installation areas
- UL Listed
- MagnaCare® lifetime replacement, no fault warranty
- Automatic Dual Voltage Uses 12 or 24 Volt Power Supply and Protects Magnalock
- World Class Technical Support Experts Ready to Assist You in Selecting Hardware, Wiring and Troubleshooting Your Opening
- Collapsing Blind Nuts Securely Anchoring Magnalocks to the Frame With 1000 Pounds of Tensile Strength
- Excellent Product Quality, Magnalocks are Manufactured in an ISO9001 Certified Factory in Phoenix, AZ
- MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked
Attributes
Alternate Codes: 140423, SAM2-24, SAM224
Ansi: 294, A156.23, E08561-1000, E08571-1000, E08581-1000, E08591-1000
Baa Qualified: Yes
Base Material: Stainless Steel
Burglar Rated: No
Category: Commercial Electronic Devices
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Current 24v DC (amps): 84
Dimension: 1-1/8″ x 7-3/16″ x 1″
Door Application: Maglocks
Finish: Satin Stainless Steel
Finish Color: Satin Chrome
Finish : Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Grade: Grade 3
Hazardous Material: NO
Holding Force: 600 lbs
Holding Force (lbs): 600
Installation: Commercial
Limited Warranty: Lifetime
Maglock Type: Mini Slam, Single Door
Magnet Depth (in): 1.125
Magnet Height (in): 1
Magnet Length (in): 7.1875
Magnet Size: 1-1/8″ x 7-3/16″ x 1″
Manufacturer Warranty: Limited Lifetime Warranty
Material: Stainless Steel
Maximum Operating Temperature (° F): 140
Minimum Operating Temperature (° F): -40
Mounting: Concealed Mount
No Of Inners: 1
Operating Voltage: 24VDC
Options: Instant Release, Weather proof
Order_ Qty: 1
Origin: USA
Outdoor Rated: No
PO date: 2024-10-21
Pack Qty: 1
Power Supply: Wired
Preload Capable: Yes
Product Height: 1.19″
Product Length: 10.88″
Product Type Used With: Push Button, Reader, or Sensor
Product Width: 1.5″
Restrictions: None
Series: Securitron Specialty Magnalocks
Ship Weight: 6 lbs.
Size: 7-3/16″ x 1-1/8″ x 1″
Subcategory: Maglocks
Subtype: Magnetic Locks
Type: Electronics
Ul Listing: 10C, 294,
Ul Listing Type: UL10C and UL294
Unit of Measure: Each
Upc: 784607029861
Voltage: 24V
Weather Rating: Weather Resistant
