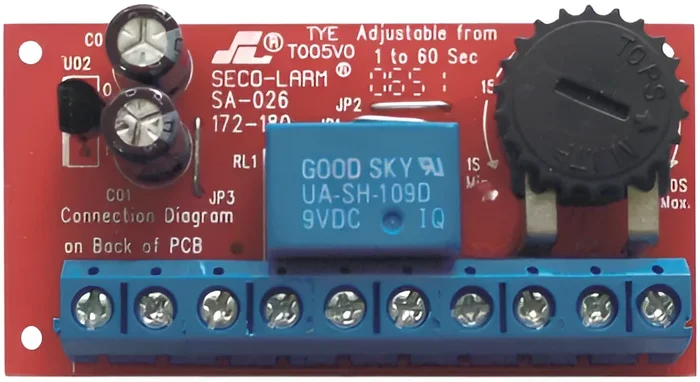

Seco-Larm SA-026Q Mini Programmable Timer 1-180 Seconds, 12-24V AC/DC

Seco-Larm SA-026Q Mini Programmable Timer 1-180 Seconds, 12-24V AC/DC is an essential tool for enhancing the functionality of electrical locks lacking built-in time delay features. This low-voltage miniature delay timer operates on a versatile range of 12 to 24 volts AC or DC, allowing it to seamlessly integrate into various security systems. With an adjustable timer setting from 1 to 180 seconds, you can easily customize the activation time of a momentary contact switch via a user-friendly onboard potentiometer. The SA-026Q features a Form C (SPDT) relay output, providing reliable control with a contact rating of 3A@24VDC. It also includes a built-in buzzer output for alerts (100mA@24VDC), enhancing the overall security experience. Designed for efficiency, the timer has a low current draw of just 5mA during standby and 50mA when active at 12VDC. Its compact dimensions (1-3/16″ x 2-3/16″ x 5/8″) make it easy to install in tight spaces, such as single-gang boxes or door frame cavities. With an operating temperature range of -40° to 167° F and a humidity tolerance of 0-90% (non-condensing), the Seco-Larm SA-026Q is built to withstand various environmental conditions, ensuring reliable performance in any setting.

Mini Programmable Timer 1-180 Seconds, 12-24V AC/DC

Notice: The info below is not item specific.

The Enforcer SA-026Q is a low-voltage miniature delay timer module that operates on 12 to 24 volts AC or DC. This timer module will extend the activation time of a momentary contact switch for 1~180 seconds via a field-adjustable potentiometer. Use with electrical locks that do not have a built-in time delay function. Its compact size makes it small enough to fit in a single-gang box or inside a door frame cavity.

Features:

• Adjustable timer from 1~180 seconds via an onboard potentiometer
• Relay output: Form C (SPDT), via terminal block
• Contact rating: 3A@24VDC
• Built-in buzzer output: (100mA@24VDC)
• Current draw at 12VDC (max.):
• Standby 5mA
• Active 50mA
• Includes double-sided foam mounting tape

Specifications:

• Operating Voltage: 12~24 VAC/VDC
• Current Draw: Standby: 5mA@12VDC. Active: 50mA@12VDC
• Relay output: Form C (SPDT) terminal block
• Buzzer output: 100mA@24VDC
• Contact rating: 3A@24VDC
• Operating humidity: 0~90%, non-condensing
• Operating temperature: -40°~167° F (-40°~75° C)
• Dimensions: 1-3/16″ x 2-3/16″ x 5/8″ (30 x 55 x 16mm)
• Weight: 1.4–oz (40g)

Attributes

Alternate Codes: SA-026Q, SA026Q

Category: Access Control, Access Management, Hardwired
