Description

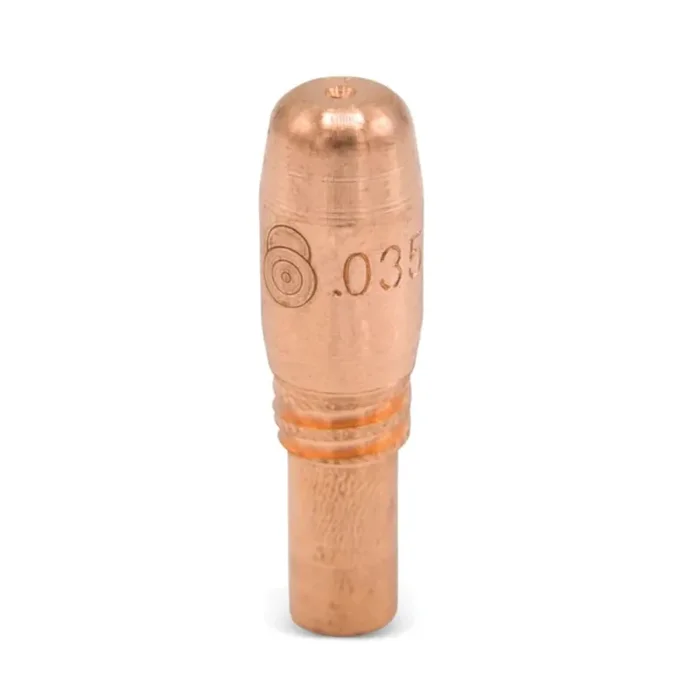

Miller AccuLock S Contact Tips
Contact tips for use with the Miller MDX-250 MIG gun. Threads in to Miller D-MA250M gas diffuser.
Features of AccuLock S Tips:
- High copper content allows for high heat heavy duty industrial applications
- When diffuser is tightened, contact tip is perfectly aligned with liner lock which enables a flawless wire feed path.
- Reduces burnbacks, bird-nesting, and erratic arc.
- Coarse thread enables quick tip replacement
- Tapered connection locks the contact tip to the diffuser and diffuser to the neck for superior electrical conductivity
- Cooling tail design ensures shield gas reduces heat inside the diffuser
- Compatible with MDX-250 MIG guns as well as Bernard BTB MIG guns
Available Options and Part Numbers
- 0.023″ (0.6 mm) Wire – T-A023CHM
- 0.030″ (0.8 mm) Wire – T-A030CHM
- 0.035″ (0.9 mm) Wire – T-A035CHM
- 0.039″ (1.0 mm) Wire – T-A039CHM
- 0.045″ (1.2 mm) Wire – T-A045CHM
For use with MDX-250 MIG Guns. Pair with:
- Acculock MDX Diffusers
- D-MA250M
- Acculock MDX Nozzles
- N-A5800CM
- N-A5818CM
- N-A5814CM
- Acculock MDX Liners
- Acculock MDX Power Pin Caps
- 2200170
- 2200171
