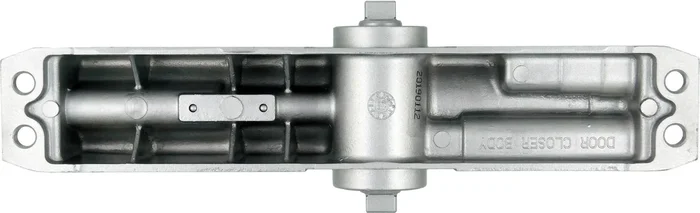

Medium Duty Surface Door Closer – Regular Arm with Parallel Arm Bracket

Description

Falcon Lock SC61A-RWPA 695 Medium Duty Surface Door Closer, Regular Arm, Adjustable Sizes 1-5, Dark Bronze

Falcon Lock SC61A-RWPA 695 Medium Duty Surface Door Closer offers a robust and reliable solution for your interior door control needs. Constructed from durable cast aluminum, this door closer is designed for medium-duty applications while ensuring compliance with the Americans with Disabilities Act (ADA) and ANSI A117.1 standards. With adjustable sizes ranging from 1 to 5, it provides versatility in installation across various door types. The SC61A-RWPA features a regular arm with a parallel arm bracket, allowing for easy mounting on hinge side, top jamb, or parallel arm configurations. This non-handed closer accommodates both left and right swinging doors, making it a practical choice for any environment. The unit is UL listed and meets ANSI/BHMA A156.4, Grade 1 standards, assuring you of its quality and reliability. Additional benefits include separate adjustable general speed, latch speed, and backcheck, ensuring smooth operation. With a 1-3/8″ diameter heat-treated steel piston and a universal screw pack included, installation is straightforward. Plus, it comes with a ten-year warranty for peace of mind. Finished in a dark bronze sprayed Duranotic, the Falcon Lock SC61A-RWPA enhances both the security and aesthetics of your space.

Medium Duty Surface Door Closer, Regular Arm with Parallel Arm Bracket, No Cover, Cast Aluminum, Adjustable Sizes 1-5, Through Bolt, WoodMachine Screws, ADA, UL, Grade 1, 695/SP313 Dark Bronze Painted

Notice: The info below is not item specific.

The SC60 Series is a dependable closer for light to medium-duty application. Designed for interior use with an aluminum storefront, the SC60 Series offers ANSI Grade 1 durability backed by a ten-year warranty. Most common hole pattern in the industry for versatile use and easy retrofit. The Falcon SC60 Series is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC61 is designed to meet the American Disabilities Act (ADA) and ANSI A117.1. The SC60 Series is ANSI/BHMA A156.4, Grade 1 certified.

Specifications:

• Meets ANSI A117.1
• ANSI/BHMA A156.4, Grade 1
• UL Listed
• 1-3/8″ diameter piston
• Closer mounts hinge side, top jamb or parallel arm when either the Rw/PA or Hw/PA arm is specified
• Adjustable sizes 1-5 (SC61)
• Single piece cast aluminum body
• Staked valves
• Non-handed for left or right swinging doors
• Separate adjustable general speed, latch speed and backcheck
• Heat-treated steel piston
• Heat-treated pinion
• UL 10C approved fluid
• Universal screw pack
• 10-year warranty

SC60 Mounting Options:

• Hinge (Pull Side)
• Top Jamb (Push Side)
• Heavy Duty (Parallel)
• Dead Stop HO (Parallel)

Arm Types:

• All SC60 Series closers come with standard arm and screw pack.
• Regular Arm, SC60-3077PA: Non-handed arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.
• Hold-Open Arm, SC60-3049PA: Optional, non-handed, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, tob jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.
• Heavy Duty Regular Arm, SC60-3077HD: Optional, non-handed, stamped, heavy duty, parallel arm for use in high-traffic applications.
• Dead Stop Arm, SC60-3077DS: Optional, non-handed, stamped, heavy duty, parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.
• Dead Stop Hold-Open Arm, SC60-3049DS: Optional, non-handed, stamped, heavy duty, hold-open parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions. Also includes a manually selective hold-open function.
• Spring-n-Stop Arm, SC60-3077SS: Optional, non-handed, extra heavy duty, forged parallel arm includes an integral spring stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.
• Spring-n-Stop Hold-Open Arm, SC60-3049SS: Optional, non-handed, extra heavy duty, forged parallel arm includes an integral spring stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions. Also includes a manually selective hold-open function.

Installation Accessories:

• Soffit Shoe Support, SC60-30: Provides anchorage for fifth screw used with soffit shoe, where reveal is less than 3-1/16″ (78mm).
• Blade Stop Spacer, SC60-61: Required to lower parallel arm shoe to clear 1/2″ (13mm) blade stop.
• Auxiliary Shoe, SC60-62A: Requires a top of rail of 7″ (178mm). Optional shoe replaces PA shoe for parallel arm mounting of regular arm with overhead holder/stop.
• Plate, SC60-18: Required for top jamb mounting where head frame is less than 1-3/4″ (44mm).
• Plate, SC60-18PA: Required for parallel arm mounting where top rail is less than 4-3/8″ (111mm) for PA, 4-1/4″ (108mm) for HD and DS, measured from the stop. Plate requires 2-3/8″ (60mm) minimum top rail measured from stop.
• Cover, SC60-72: Standard, non-handed, full plastic cover encloses the closer.

Cylinder Options:

• Standard Cylinder (STD) – Standard cylinder provides a main speed function to control the motion of the door from maximum opening angle until the door is a few inches from the latch where latch function controls the final closing motion. The opening swing is controlled by the hydraulic backcheck function from about 70 degrees to maximum opening angle.
• Without Backcheck (WOBC) – Special cylinder provides a main speed function to control the motion of the door from maximum opening angle until the door is a few inches from the latch where latch function controls the final closing motion.
• Delayed Action Cylinder – Special cylinder provides a separate adjustable delayed closing motion from maximum opening angle to approximately 70 degrees. Then the main speed function controls the door motion until the door is a few inches from the latch where latch function controls the final closing motion. During the opening swing the door is controlled by the hydraulic backcheck function from about 70 degrees to maximum opening angle.

• UL 10C Approved Fluid
• Limited 10 Year Mechanical Warranty
• For Interior Doors
• Single Piece Cast Body
• Industry Common Hole Pattern that Can Retrofit to Norton 1600

Features

• ANSI/BHMA A156.4, Grade 1
• UL Listed
• Heat-treated pinion
• Heat-treated steel piston
• UL 10C approved fluid
• Universal screw pack
• Closer mounts hinge side, top jamb or parallel arm when either the Rw/PA or Hw/PA arm is specified
• 10-year warranty
• Staked valves
• Separate adjustable general speed, latch speed and backcheck
• Single piece cast aluminum body
• 1-3/8″ diameter piston
• Non-handed for left or right swinging doors
• Meets ANSI A117.1
• Adjustable sizes 1-5 (SC61)

Attributes

Alternate Codes: 126619, FALSC61ADKBRZ, FALSC61ADKBZ, FALSC61DKBRZ, FALSC61 RW/PA 695, FALSC61-RWPA-695, FALSC61RW/PA-695, FALSC61RW/PA695, QDC311690SN, SC61ADKBRZ, SC61A-RWPA 695, SC61ARWPA695, SC61DARKBNZ, SC61DKBRZ

Arm Type: Regular Arm w/Parallel Arm Bracket

Category: Door Closers, Economy Door Closers, Economy Surface Mount

Certifications: A117.1, A156.4, ANSI, BHMA, UL 10C

Closer Type: Surface Mounted Closer

Cover: Less Cover

Cylinder Type: Standard

Dimension: 4-1/4″ x 9-3/4″ with 2-3/4″ Projection

Door Application: Door Closers

Fasteners: TB Self Reaming & Tapping Screws

Finish: Dark Bronze

Finish Code: 695

Finish Color: Dark Bronze, Sprayed Duranotic

Grade: Grade 1

Hazardous Material: NO

Hold Open: No

Manufacturer: Falcon Lock

Manufacturer Warranty: Limited 10 Year Mechanical Warranty

Material: Cast Aluminum

Mounting: Hinge (Pull Side), Parallel Arm (Push Side), Top jamb (Push Side)

Mounting Hole Pattern: Industry Common Hole Pattern

Mounting Style: Parallel Arm Mounting

No Of Inners: 1

Order_ Qty: 1

Series: SC60A

Spring Size: 1-5

Subcategory: Surface Mount Closers

Ul Listing Type: UL 10C and UBC 7-2 Listed
