Description

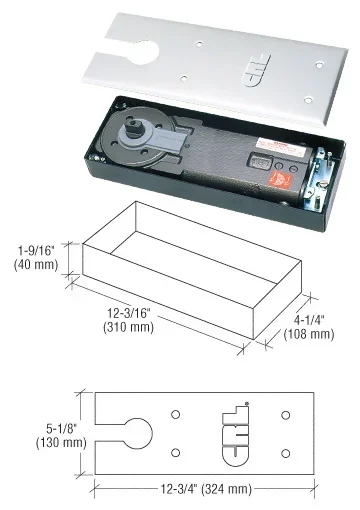

CRL 8372 Medium Duty 105 Low Profile Floor-Mounted Closer
C.R. Laurence 8372 Medium Duty 105 No Hold Open Low Profile Floor Mounted Closer offers a robust solution for door control with a maximum capacity of 264 lbs and accommodates doors up to 42 inches wide. Designed for installations requiring minimal floor depth, this closer features a low profile design with a mere 1-9/16″ (40 mm) depth, making it ideal for use on elevated floors.The closer includes independent closing and latching speed valves, providing customizable control over door operation. Its interchangeable spindles ensure versatility, allowing for adjustments based on finished floor heights. The standard spindle offers a 5/16″ (8 mm) clearance from the finished floor to the door bottom, facilitating seamless integration into various spaces.This model is UL Listed and comes with a 5-year limited warranty, assuring quality and reliability. To enhance durability, an auxiliary floor or overhead door stop is strongly recommended to prevent over-extension damage. The CRL 8372 is particularly suited for aluminum and hollow metal doors, ensuring a secure and efficient solution for both interior and light exterior applications.With its thoughtful engineering and ease of installation, the C.R. Laurence 8372 floor closer is a dependable choice for professionals seeking performance without compromise.
Medium Duty 105 No Hold Open Low Profile Floor Mounted Closer
- 264 Lb. Capacity, 42″ Doors
- Low Profile 1-9/16″ (40 mm) Depth
- Interchangeable Spindle Heights
- 5 Year Limited Warranty
- UL Listed
These
CRL Shallow Depth Floor Mounted Door Closers are preferred for many types of installations because they only require a shallow 1-9/16″ (40 mm) cut-out in the floor. This is especially important on floors above the ground floor. The shallow cut-out leaves enough remaining floor under the Door Closer to support the door weight. The Door Closer has separate valves to control closing and latching speeds. Both 90º and 105º Hold Open and No Hold Open models are available.
The 1/8″ (3 mm) collar height Spindle is supplied with the door closer, providing a 5/16″ (8 mm) clearance from finished floor to door bottom. Optional Spindles to accommodate different finished floor heights are also available. Other accessories, such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entryway due to over-extension of maximum allowable door swing.
SPECIFICATIONS:
Maximum Door Weight: 264 Lbs. (120 kg)
Maximum Interior Door Width: 42″ (1.07 m)
Maximum Exterior Door Width: 38″ (965 mm)
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Auxiliary Stop Recommended: Yes
Body Height: 1-9/16
Body Length: 12-3/16
Body Widt: 4-1/4
Body Width: 4-1/4
Closer Body With Box: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Door Height: 96
Handing: Double Acting
Includes: CRL8372, CRL9040S3
Independent Closing and Latching Valves: Yes
Interchangeable Spindles: Yes
Maximum Door Width – Exterior: 48 Inches
Maximum Door Width – Interior: 54 Inches
Maximum Weight Center Hung: 264 Pounds
No Hold Open: 105°
Not Recommended for Exterior Application: Yes
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: CRL8372, CRL9040S4
Shipping Limitations: None
Spindle Included: Yes
Spring Size: Medium
UL Listed: Yes
Resources
- Door Closer Warranty
- Installation Instructions CRL8300 series IN-FC-860-CRL1.pdf
- Specifications Closer2.pdf
