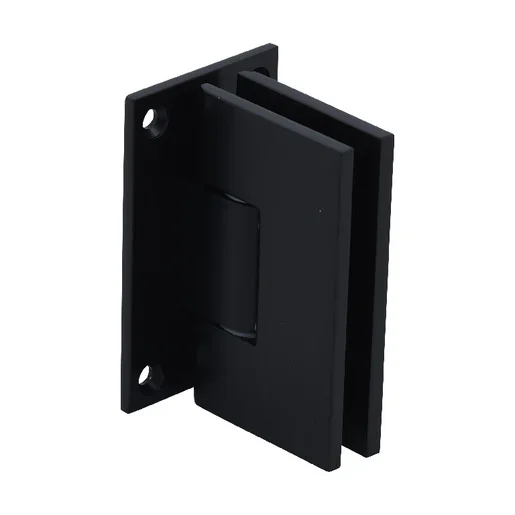

Matte Black Victoria Series Wall Mount Full Back Plate Hinge by C.R. Laurence

Description

CRL VCT037MBL Matte Black Victoria Series Wall Mount Hinge Back Plate

C.R. Laurence VCT037MBL Matte Black Victoria Series Wall Mount Full Back Plate Hinge offers an exceptional solution for heavier, wider shower doors, supporting a maximum weight of 140 lbs. (64 kg) and a width of up to 39 inches (1 m) with just two hinges. Crafted from solid brass, this hinge is designed for use with 3/8″ to 1/2″ (10 to 12 mm) thick tempered safety glass, ensuring durability and safety. The integrated safety interlock enhances glass panel control, while the hinge’s unique stiffening beam reduces clamping plate flex, providing superior holding power. With a self-centering feature that activates when the door is within 15 degrees of the closed position, this hinge guarantees a smooth and reliable operation every time. The hinge swings 90 degrees in and out, facilitating easy access while maintaining a sleek, frameless aesthetic. Included with the hinge are gaskets, screws, and glass fabrication dimensions, ensuring a hassle-free installation process. Available in a stunning matte black finish, the Victoria Series Hinges can also be customized to suit specific design preferences. For optimum performance, avoid exceeding the specified door weight and width, and remember to use only the included template for cut-out dimensions.

Matte Black Victoria Series Wall Mount Full Back Plate Hinge

• An Excellent Choice for Heavier, Wider Shower Doors
• Integrated Safety Interlock Enhances Glass Panel Control
• Wall Mount and 180 Degree Glass-to-Glass Models Available
• For Use with 3/8″ to 1/2″ (10 to 12 mm) Thick Tempered Safety Glass

CRL Victoria Series Hinges have the ability of supporting wider, heavier doors, with a maximum door weight of 140 lbs. (64 kg), and a maximum door width of 39″ (1 m) using only two hinges.

NOTE: Do not use three hinges.

This produces a frameless aesthetic by reducing the amount of hardware needed. These hinges utilize an integrated stiffening beam to minimize clamping plate flex, resulting in exceptional holding power. They also deliver increased self-centering force, and the heat-treated stainless steel springs produce enhanced durability. For use with 3/8″ and 1/2″ (10 and 12 mm) thick tempered glass. Stocked in six popular finishes, with custom finishes available.

Using two hinges with 3/8″ to 1/2″ glass (10 to 12 mm), 39″ (1 m) width, the two hinges will hold up to 140 lbs. (64 kg).

SPECIFICATIONS:

Glass Thickness: 3/8″ to 1/2″ (10 to 12 mm) Tempered Safety Glass

Construction: Solid Brass

Hinge Swings: 90 Degree in and 90 Degree Out (at Factory Set Position)

Closing Type: Self-Centering when within 15 Degree of Closed Position

Cut-Out Required

Includes: Gaskets, Screws, and Glass Fabrication Dimensions

NOTE: Do not exceed either door weight or door width maximum capacities. Maximum two hinges per door. Glass fabrication is required.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

5 Degree Pre- Set: No

Adjustable: No

Back Plate: Full

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Construction: Solid

Finish/ Color:: Matte Black

Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

Height: 4-3/8 in. (111 mm)

Material: Brass

Maximum Door Weight: 140 lbs. (63.5 kg)

Maximum Door Width: 39 in. (991 mm)

Mounting Type: Wall Mount

Self- Centering: Yes

Series: Victoria

Shipping Limitations: None

Width: 2-15/16 in. (75 mm)
