Description
CRL SRCAR01MBL Matte Black Cardiff Series Senior Hinge Instructions
C.R. Laurence SRCAR01MBL Matte Black Senior Cardiff Series Hinge is the ideal choice for those seeking a robust and stylish solution for shower door applications. Designed specifically for 1/2″ (12 mm) thick tempered safety glass, this hinge provides exceptional support, capable of holding doors weighing up to 145 lbs (66 kg) with a maximum width of 36″ (914 mm). Featuring a top and bottom mount design, the Senior Cardiff Hinge allows for greater glass exposure and can save on glass fabrication costs compared to side mount glass-to-glass hinges. With sharp square corners, it delivers a classic, traditional aesthetic that complements any bathroom decor. The self-centering mechanism ensures smooth operation, while four strong springs provide maximum retention strength for reliable performance. This hinge is adaptable to the CRL Deluxe Header System, making it versatile for various installation scenarios. Each package includes gaskets, screws, and glass fabrication dimensions for easy installation. Crafted from solid brass, the SRCAR01MBL is available in a matte black finish, adding a touch of sophistication to your space. For optimal performance, consider the optional SRHAB01 Adapter Block for installations not reaching the ceiling. Experience the blend of quality and design with C.R. Laurence’s Senior Cardiff Series Hinge.

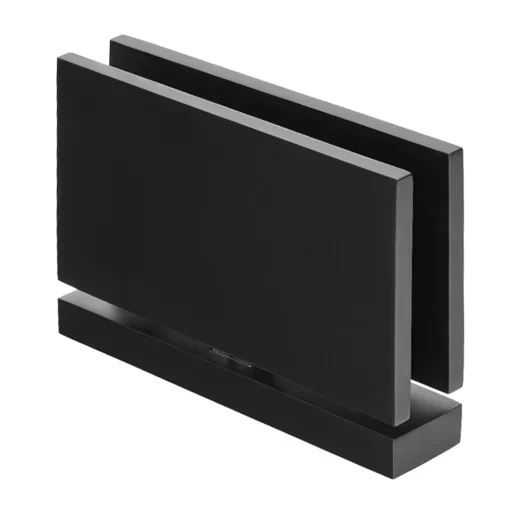

Matte Black Senior Cardiff Series Hinge
- Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)
- Larger Version of the Popular Cardiff Series to Accommodate 1/2″ (12 mm) Thick Glass
- Square Corners for a Sharp, Traditional Look
- Use Monolithic Tempered Glass
- Adaptable to CRL Deluxe Header System
- Stocked in Many Popular Hardware Finishes
CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges are designed for use with 1/2″ (12 mm) thick tempered safety glass. Some advantages of the Top and Bottom Mount Pivot Hinges include the fact that they carry the majority of the door weight on the bottom hinge, and have the ability to be inset from the door edge, enabling sufficient clearance for towel bars or other projections.
Senior Cardiff Hinges are self-centering, with four strong springs for maximum retention strength. The Senior Cardiff Hinge is adaptable to our Deluxe Header System for enclosures not reaching the ceiling, by utilizing our Senior Adapter Block.
NOTE: Must order SRHAB01 Adaptor Block separately. They also can be simply floor and ceiling mounted for doors that do reach the ceiling.
Using two hinges with 1/2″ glass (12 mm) the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36″ (914 mm).
SPECIFICATIONS:
Glass Thickness: 1/2″ (12 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared against use of side mount glass-to-glass hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
NOTE: Use SRP1VP1N (sold separately) 5 degree Pivot Pins for 1/2″ (12 mm) Thick Glass Option for 5 degree tighter door closer. Sold as a set, one for top hinge and one for bottom hinge.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Matte Black
Glazing Thickness: 1/2 in. (12 mm)
Height: 2-5/8 in. (67 mm)
Material: Brass
Maximum Door Weight: 145 lbs. (65.8 kg)
Maximum Door Width: 36 in. (914 mm)
Mounting Type: Head & Sill Mount
Self- Centering: Yes
Series: Senior Cardiff
Shipping Limitations: None
Width: 4-3/4 in. (121 mm)
