Matte Black Replacement Bottom Guide by C.R. Laurence

Description

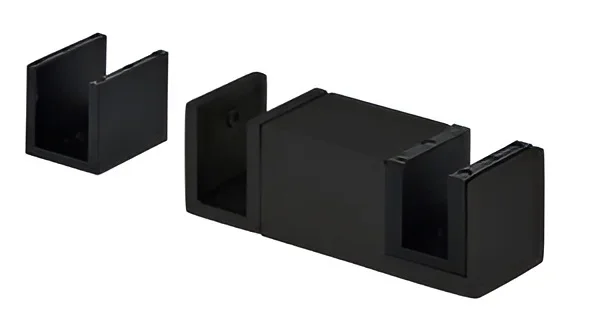

CRL CREG1MBL Matte Black Replacement Bottom Guide

C.R. Laurence CREG1MBL Matte Black Replacement Bottom Guide offers a sophisticated solution for modern sliding shower door systems. Designed for use with the Crescent Series, this system accommodates one sliding door and one fixed panel, enhancing the aesthetic appeal of your bathroom with its circular header and rollers that promote symmetrical elegance. The quality roller bearings ensure smooth and quiet door movement, making it a pleasure to use. Available in three stunning finishes-polished stainless, brushed stainless, and the sleek matte black-this product adds a touch of luxury to any space. The system is compatible with 1/2″ or 3/8″ (12 or 10 mm) thick tempered safety glass, which is not included, allowing for tailored glass selection to suit your design needs. Installation flexibility is a key feature; both the fixed and sliding panels can be reversed as desired. The standard 180-degree kit includes essential components such as a 78″ header bar, four rollers, a bottom guide with inserts for different glass thicknesses, and two bottom sweeps with drip rails. Please note that a handle or knob for the door, as well as glass clamps or U-channel for the fixed panel, must be ordered separately. Elevate your shower experience with this refined and durable bottom guide from C.R. Laurence.

Matte Black Replacement Bottom Guide

• System Features One Sliding Door and One Fixed Panel
• Quality Roller Bearings Assure Quiet Door Movement
• Circular Header and Rollers Provide Symmetrical Aesthetics
• Polished Stainless, Brushed Stainless, and Matte Black Finishes
• Handle or Knob for Door Glass Ordered Separately
• Glass Clamps or U-Channel for Fixed Panel Ordered Separately
• Accommodates 1/2″ or 3/8″ (12 or 10 mm) Thick Tempered
• Safety Glass (Not Included)

The circular shaped Header and the round Rollers of the
Crescent Series Sliding Door System are the perfect complement to each other. They help provide a luxurious sliding shower door system and a soft décor. The use of minimal hardware lends itself to the popular modern sliding shower door systems by showing more glass, and less hardware. These quality Rollers assure quiet door travel, and make the door easy to slide. The Crescent Series Sliding System accommodates 1/2″or 3/8″ (12 or 10 mm) thick tempered safety glass (not included), and the system allows that the fixed and sliding panels are reversible for installation as desired. The Crescent Series Sliding Door System is available in a choice of polished stainless steel, brushed stainless steel, or the new popular matte black finish.

STANDARD 180 DEGREE KIT INCLUDES:

One – 78″ (1981 mm) Length of Header Bar

Four – Rollers

One – Stopper

Two – Wall Mount Fittings

Two – Track Holder Fittings for Fixed Panel

One – Bottom Guide (includes inserts for both 1/2″ and 3/8″ (12 and 10 mm) Glass)

Two – 40″ (1016 mm) Bottom Sweeps with

Drip Rail (one for 3/8″ (10 mm) and one for 1/2″ (12 mm)

One – 80″ (2032 mm) Clear L-Jamb

NOTE: Customer to supply choice of Handle or Knob for door, and Glass Clamps or U-Channel for fixed panel.

SPECIFICATIONS:

Material: Stainless Steel

Glass Thickness: 1/2″ or 3/8″ (12 or 10 mm) – Not Included

Maximum Door Size: 36″ (914 mm) wide or 100 lbs (45 kg) – Do not exceed either width or weight.

Glass Fabrication Required for Both Door and Fixed Panel
