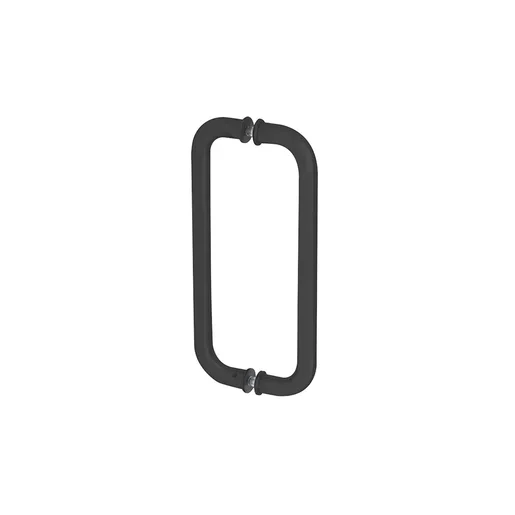

Matte Black 10″ Back-to-Back Glass Mounted Standard Pull Handle by C.R. Laurence

Description

CRL CM10X10MBL Matte Black 10″ Back-to-Back Glass Pull Handle

C.R. Laurence CM10X10MBL Matte Black 10″ Back-to-Back Glass Mounted Standard Pull Handle combines sleek design with exceptional functionality, making it a perfect choice for modern glass installations. Crafted to accommodate 3/8″ to 3/4″ (10 to 19 mm) monolithic tempered glass, this handle is constructed from durable 1″ (25 mm) diameter stainless steel or brass tubing, ensuring a robust grip for high-traffic areas. Available in a striking matte black finish, this pull handle not only enhances the aesthetic appeal of your space but also offers versatility with multiple architectural finish options. The handle’s design includes two 5/8″ (16 mm) diameter holes for easy glass fabrication, while the three-inch projection from the glass face allows for comfortable use. Each set comes complete with matching finish metal washers and rubber gaskets, as well as through-bolts for secure mounting. With a mounting center-to-center distance of 10 inches (254 mm), the CRL CM10X10MBL is designed for back-to-back installation, ensuring a seamless look on either side of the glass. Whether you’re upgrading a commercial entrance or enhancing a residential space, this pull handle delivers both style and practicality.

Matte Black 10″ Back-to-Back Glass Mounted Standard Pull Handle

• Stocked in Up to Five Architectural Finishes
• For Use with 3/8″ to 3/4″ (10 to 19 mm) Glass
• Complete with Matching Finish Metal Washers and Through-Bolts for Mounting
• Use Monolithic Tempered Glass

This
CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.

SPECIFICATIONS:

For Use With: 3/8″ to 3/4″ (10 to 19 mm) Glass

Construction:
1″ (25 mm) Diameter Stainless Steel or Brass
Tubing. *1-1/4″ (32 mm) Diameter Stainless
Steel (Cat. No. CD24X24BS125 Model only).

Projection: 3″ (76 mm) from Face of Glass to Outside of Handle

Glass Fabrication Required:
Two 5/8″ (16 mm) Diameter Holes

INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4″ (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Diameter: 1 in. (25.4 mm)

Finish/ Color:: Matte Black

Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)

Mounting Center To Center: 10 in. (254 mm)

Mounting Hole Diameter: 5/8 in. (16 mm)

Mounting Type: Back-to-Back

Shipping Limitations: None

Style Washer Diameter: 1-1/4 in. (32 mm)

Style Washers: Yes

Resources

• Technical Specifications PH-CM10X10.pdf
