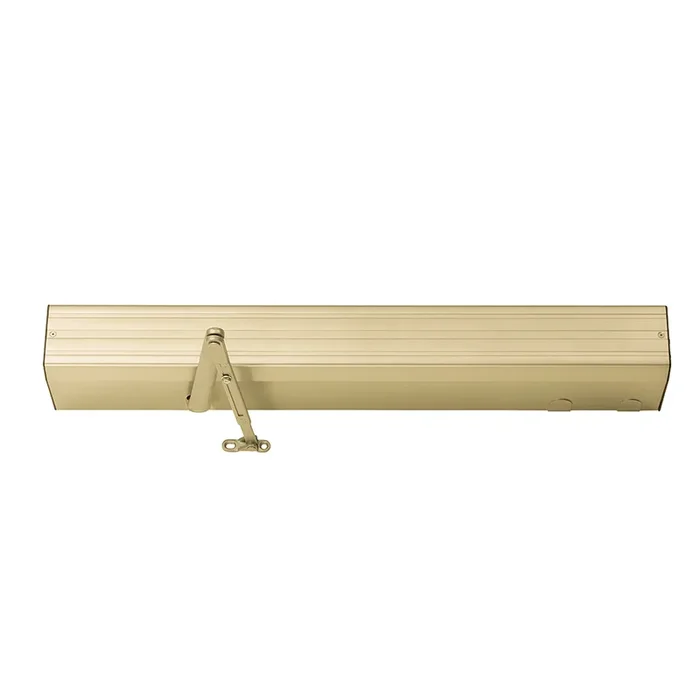

LowEnergy Auto Equalizer BRASS by LCN – Efficient Door Operator

Description

LCN 4642-REG 696 Low Energy Auto Equalizer – Brass

LCN 4642-REG 696 LowEnergy Auto Equalizer BRASS offers a Grade 1 surface-mounted electrohydraulic door operator designed specifically for enhancing accessibility. This reliable unit supports manual openings with the added convenience of automatic operation, making it an excellent choice for facilities that require seamless access for individuals with disabilities or the elderly.The 4640 Series features a push side-mounted, top jamb configuration, suitable for doors measuring between 36″ and 54″. It boasts a powered swing of 90 degrees and allows for a manual swing up to 100 degrees, accommodating various user needs. The operator is equipped with easily accessible switches for on/off and continuous hold-open functions, ensuring straightforward operation.Built from durable materials, including a cast iron cylinder and a metal cover, it comes with a satin brass painted finish that complements any commercial setting. Meeting ADA requirements, this operator is non-handed and can be installed on either right or left swinging doors. The adjustable back check and optional custom powder-coated finishes further enhance its adaptability.With a 2-year limited warranty and the ability to support door weights of up to 225 lbs, the LCN 4642-REG is a dependable choice for both commercial and residential applications.

LowEnergy Auto Equalizer BRASS

Grade 1 Surface Mounted Electrohydraulic Auto Equalizer Door Operator, Regular, Push Side Mounted, Top Jamb, 36″ – 54″ Door, 90 Deg. Powered, 100 Deg. Manual Swing, Machine and Wood Screws, Satin Brass Painted Finish

The 4640 Auto Equalizer is LCN’s smart and reliable electrically powered low energy power operator. It provides easy access for people with disabilities or the elderly. Designed for manual openings that require occasional automatic opening.

The 4640 Series is LCN’s smart and reliable low-energy operator.

The 4640 auto equalizer is LCN’s smart and reliable electrically powered low-energy automatic operator. It provides easy access for people with disabilities, or the elderly. Designed primarily for manual opening applications that occasionally required automatic opening.

• Standard, top jamb (push side) mounted 4640 series closer shipped with regular arm, metal cover, and wood and machine screw pack.
• Meets ADA requirements (power mode).
• Non-sized cylinders for interior doors to 4’6” and exterior doors to 3’6”.
• Non-handed for either right or left swinging door.
• 4640 has easily accessible switches to provide on/off and continuous hold open functions. 4640CS provides concealed on/off power switch. Control module provides all timing and sequential door functions, electric strike controls and adjustments for opening speed and force.
• Standard or optional custom powder coated finish, end caps are black.
• Optional plated finish on cover, arm, and fasteners.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Arm Type: Regular Arm

Baa Qualified: Yes

Back Check: Adjustable

Base Material: Cast Iron Cylinder

Cold Weather Fluid: Yes

Commercial Residential: Commercial

Country of origin: USA

Cover: Metal

Degree Hold Open: 90 Deg.

Degree Swing: 90 Deg. Powered, 100 Deg. Manual

Door Size: 36″ to 54″

Door Weight: 225 lbs.

Finish: 696/US4

Finish Family: Matte Brass

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Grade: Grade 1

Hold Open: Yes

Hold Open Type: Electric

Installation: Commercial

Limited Warranty: 2 Years

Mounting Group: Electrohydraulic

Mounting Location: Push Side

Mounting Style: Top Jamb

Origin: USA

Pack Height: 5″

Pack Length: 40″

Pack Qty: 1

Pack Volume: 2200 in³

Pack Width: 11″

Physically Handicapp: Yes

Reveal Size: Up to 4-1/2″

Screw Type: Machine and Wood

Series: 4640 Series Electrohydraulic Operators

Ship Weight: 40 lbs.

Subtype: Door Operators

Type: Surface

Unit of Measure: Each

Voltage: 120V

Resources

• 4640 Series Electrohydraulic Operators Cut Sheet
• Choosing the Right LCN Auto Operator
• LCN 4600 Series Installation Guide
• LCN 4600 with 8310-856 Wiring Diagram
• LCN 4600CS Series Installation Guide
• LCN 4840 Series Product Guide – Automatic Operators
• LCN Auto Operators Catalog
• LCN Closers & Auto Operators Installation Guide
• LCN RXLXEL with 4600 Wiring Diagram
• Von Duprin Finishes Chart
