Description

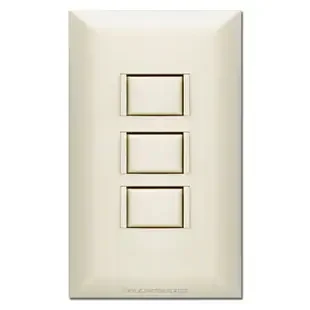

Almond Touchplate 5000 series push button device unit can be wired in new and existing Touch-Plate low voltage systems to control 3 lights. Momentary switches. Includes switches, bracket and snap on plastic coverplate. Made in America. Use to replace older 5003, 5103, 50-3 & 50-3PL three button Touch Plate units.
Features
- 2 wire low voltage system (cannot be used in 3-wire systems)
- 4 amp @ 28 volts switch contact rating
- 3 momentary contact switches; dry contact
- if needed, order the 5000 series wiring instructions for Touch-Plates
- durable plastic switch plate is 4-1/2″ x 2-3/4″, overall station depth is 13/16″ from front face to back of button
- buy Touch-Plate 5003 switches in 2 other colors
- one 1-1/8″ x 5/8″ horizontal push button switch
- screw holes spaced 3-9/32″ apart in bracket
- two 1″ mounting screws included
- 22 AWG wire
- replaces 5101, 50-1 & 50-1PL 1 button Touchplate units
- 500C1-0300A-ALM (5003-ALM) by Touch Plate, satin almond
- made in USA
- note: The metal flanges on the cover post holes on vintage units are designed to be pinched with pliers to make a tighter fit for the tabs. Adjust them a little bit to get the right tightness to comfortably hold the covers on.
Shop Touch-Plate Replacement Parts and Switch Plates for coordinating wall decor, remote control relays and transverters.
NOTE ON 3-WIRE SYSTEMS: Upgrading a 3-wire system such as Remcon, GE or Bryant low voltage wiring? This switch won’t work. You must double the number of switches on those systems, so if you have a 3-switch unit, change to a 6-switch Touch-Plate.
