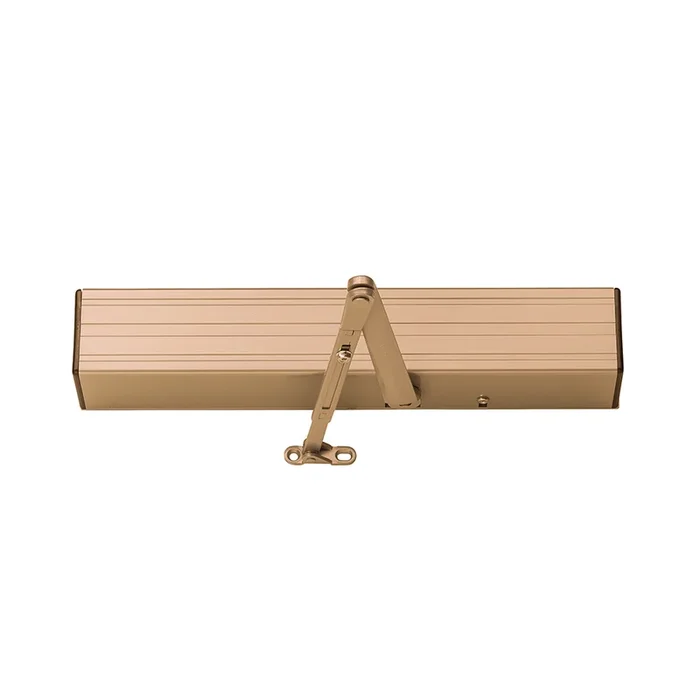

Low Energy Auto Equalizer US10 – LCN Door Operator

Description

LCN 4822-LONG/18 639 Low Energy Auto Equalizer US10

LCN 4822-LONG/18 639 Low Energy Auto Equalizer US10 is a Grade 1 surface-mounted electromechanical benchmark door operator designed for accessibility and ease of use. This double lever arm long operator is push side mounted and fits doors ranging from 24″ to 54″ wide, accommodating weights of up to 254 lbs. for push and 198 lbs. for pull. With a powered swing of 90 degrees and a manual swing of 100 degrees, this unit offers flexibility for various applications. Ideal for multi-door configurations, the 4822 Auto Equalizer significantly reduces costs per door leaf as the number of doors increases, making it a smart choice for commercial projects. It meets ADA requirements in power mode, ensuring compliance for facilities catering to individuals with disabilities or the elderly.This operator features a durable cast iron cylinder and is equipped with adjustable back check, making it suitable for both interior and exterior doors. The satin bronze clear coated finish adds an elegant touch while enhancing durability. Installation is straightforward with included machine and wood screws, and additional system components may be required. With its reliable performance and thoughtful design, the LCN 4822 is a superior solution for modern accessibility needs.

Low Energy Auto Equalizer US10

Grade 1 Surface Mounted Electromechanical Benchmark Door Operator, Double Lever Arm Long, Push Side Mounted, Top Jamb, 24″ – 54″ Door, 90 Deg. Powered, 100 Deg. Manual Swing, Machine and Wood Screws, Satin Bronze Clear Coated Finish

The 4820 Auto Equalizer is LCN’s pneumatically powered multidoor solution. This low energy automatic operator provides easy access for people with disabilities or the elderly. Designed for manual openings that require occasional automatic opening.

The 4820 Series is LCN’s pneumatically powered MULTI-DOOR solution.

The 4820Auto Equalizer by LCN is alow energy automatic operator provides easy access for people with disabilities, the elderly, or the frail. Designed primarily for manual opening applications that occasionally require automatic opening.

• Ideal for multi-door applications since cost per door leaf decrease significantly as the number of door leaves increases.
• Standard, plate mounted 4820 series closer shipped with regular arm, metal cover, and wood and machine screw pack.
• Meets ADA requirements (power mode).
• Non-sized cylinders for interior doors to 4’6” and exterior doors to 3’6”.
• Non-handed.
• Requires additional system components.
• Standard or optional custom powder coated finish, end caps are black. Optional plated finish on cover, arm, and fasteners.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Arm Type: Double Lever Arm, Long

Baa Qualified: Yes

Back Check: Adjustable

Base Material: Cast Iron Cylinder

Cold Weather Fluid: Yes

Commercial Residential: Commercial

Country of origin: USA

Cover: Metal

Degree Swing: 90 Deg. Powered, 100 Deg. Manual

Door Size: 24″ to 54″

Door Weight: 254 lbs. Push, 198 lbs. Pull

Drop Plate: Included

Finish: 612/US10

Finish Family: Matte Bronze

Grade: Grade 1

Hold Open: No

Installation: Commercial

Limited Warranty: 2 Years

Mounting Group: Electromechanical

Mounting Location: Push Side

Mounting Style: Top Jamb

Origin: USA

Pack Height: 6″

Pack Length: 23″

Pack Qty: 1

Pack Volume: 1104 in³

Pack Width: 8″

Physically Handicapp: Yes

Screw Type: Machine and Wood

Series: 4820 Series Pneumatic Operators

Ship Weight: 19 lbs.

Subtype: Door Operators

Type: Surface

Unit of Measure: Each
