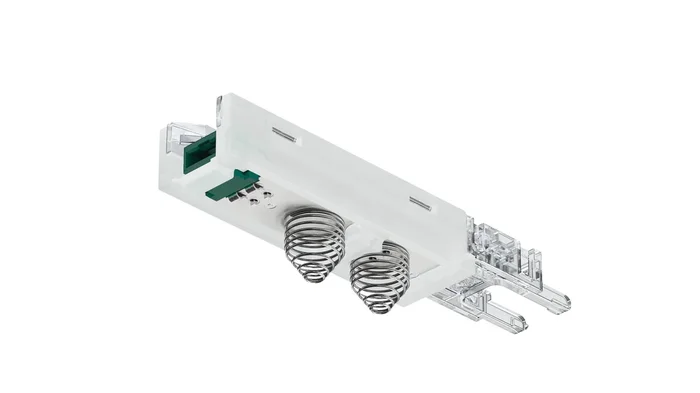

Hafele 833.89.291 Loox5 Inline Dimmer with Memory for Aluminum Profiles
Hafele 833.89.291 Loox5 Inline Dimmer offers an innovative solution for controlling your lighting with ease and precision. Designed specifically for monochrome 8 mm Loox5 LED strip lights, this modular dimmer supports a power rating of 120 W and operates at a voltage of 24 V, with a maximum connected wattage of 90 W. Its concealed installation beneath the diffuser ensures a clean and unobtrusive appearance, making it ideal for various design applications. The dimmer features a smooth on/off switching function and a versatile dimming range from 5% to 100%, allowing you to create the perfect ambiance in any space. Notably, the memory function retains the last dimming level even after switching off, ensuring your preferred lighting is just a touch away. The device is crafted from durable plastic and is compatible with several Hafele aluminum profiles, including Profiles 1101 to 2104, providing seamless integration into your projects. With a low voltage plug and a simple installation process, the Hafele Inline Dimmer is designed for effortless use. Enjoy the convenience of touchless dimming and elevate your lighting design with this advanced and reliable component.
Inline Profile Dimmer Switch, Modular with Memory Function for 1103/1105/2102/2103/2104 Profiles
Soft on/off switching and dimming, 24 V, max. connected wattage 90 W
Switch is concealed under the diffuser
Dimming range 5% – 100% Dimming level is retained after switching off (memory function). The light stays off in the de-energized condition.
Attributes
Area of application: For monochrome 8 mm Loox5 LED strip lights in Loox5 aluminium profiles
Color/finish: opal
Connected output ports: 1 x Clip, Loox5 LED strip light 8 mm monochrome
Connections: 1 x Clip, Loox5 LED strip light 8 mm monochrome
Input ports: 1 x socket, Loox5 modular with intervals 2-pin 24 V
Installation: For sliding into aluminum profile
Installation reference: Can be used for other aluminum profiles with a similar clear internal height to the specified models (approx. 12–14 mm). Shorten LED strip light by approx. 50 mm in relation to the total length of the aluminum profile. No diffuser shortening required, since the diffuser covers the dimmer.
Low voltage plug: Loox5 2-pin 24 V
Material: Plastic
Memory function: Yes (also in currentless condition)
Number of input ports: 1 x socket
Number of output ports: 1 x Clip
Order reference: Please order lead (modular with Loox5 2-pin snap-in connector) separately. Please note nominal voltage and current carrying capacity! 24 V/5 A, 1000 mm: Cat. No. 833.95.836, 2000 mm: Cat. No. 833.95.835
Output ports type: Loox5 LED strip light 8 mm monochrome
Plug of required low voltage cable: Loox5 2-pin 24 V
Power rating: 120.00 W
Suitable for: Profile 1103, Profile 1105, Profile 2102, Profile 2103, Profile 2104, Profile 2101
Supplied with: 1 dimmer
Switching contact: with touch
Switching function: dim (with memory function), On/off soft, touchless
Resources
- CAD data
- Hafele_Lighting_ 2024 | Page 236
- Inline Switch Mounting Instructions
- Installation instructions for inline switch
- Loox – Electrical Code Compliance
