Lid Stay/Flap Stay, Hafele Duo Standard – Complete Set

Description

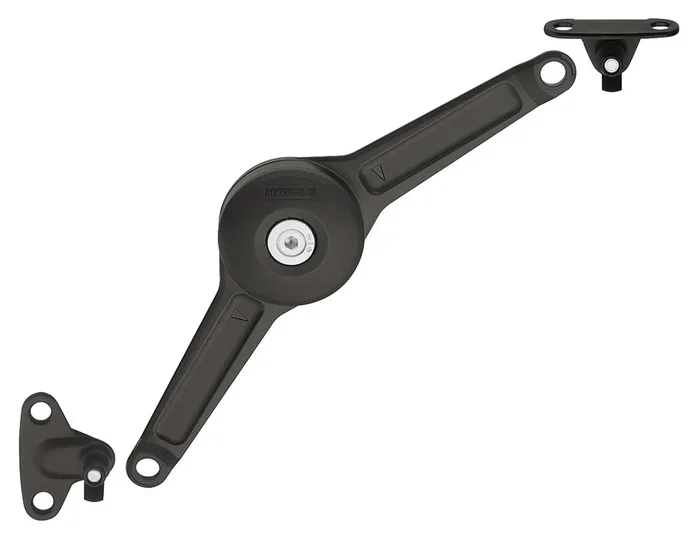

Hafele 373.66.212 Hafele Duo Standard Lid/Flap Stay Complete Set

Hafele 373.66.212 Lid Stay/Flap Stay, Hafele Duo Standard, Complete set offers a versatile solution for wood or aluminum framed doors. This innovative fitting can be employed as either a lid or flap stay, ensuring you maximize available cabinet space. Designed with a wear-resistant friction coupling, it features a large adjusting range to cater to various applications. The adjustment facility allows for holding power customization, making it suitable for cabinet heights between 200 and 500 mm and widths starting at 45 mm. With a maximum lid weight capacity of 12 kg, this fitting is robust enough for everyday use. The mounting process is straightforward, utilizing wood screws for both the lid stay and flap stay installation. It’s important to note that two fittings should be used when deployed as a flap stay, considering the combined weight of any handles. With an opening angle of 75 to 110°, this stay provides ample access while maintaining the integrity of your cabinetry. The kit includes a mounting bracket for the cabinet and a screw mount bracket for the flap, ensuring that all necessary components are at hand for installation. Finished in a sleek black, the Hafele 373.66.212 combines functionality with aesthetic appeal, making it an excellent choice for modern interiors.

Lid Stay/Flap Stay, Hafele Duo Standard, Complete set

For wood or aluminum framed doors, Black, for wood screws

Can be used as a lid or flap stay Less space is required inside the cabinet Wear-resistant friction coupling with large adjusting range
Adjusting the arms (overshear) turns the lid stay into a flap stay

Important Mounting location dimensions are critical for this fitting to perform properly

Attributes

Adjustment facility: holding power adjustment

Area of application: For wood or aluminum framed doors

Color/finish: Black

Edge distance: 37.00 mm

Flap type: one-piece

For cabinet height: 200 – 500 mm

For cabinet width: ≥45 mm

For lid weight: ≤12 kgnote sample measurements table

Installation: Wood screws

Installation reference: Always use two fittings when used as flap stay and include weight of handles

Lid material: Wood, Aluminum frame

Material: Steel

Mounting: right and left hand use

Opening angle: 75 – 110 °

Supplied with: Lid stay Mounting bracket for cabinet Screw mount bracket for flap

Version: Complete set

Resources

• CAD data
• Certificate
• Door Weight Calculation Chart
• Duo Standard Mounting Instructions
• Installation instructions
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.139
• Technical data sheet
